924124 (ST 926 DLE) - Ariens Classic 26" Snow Blower, 9hp Tecumseh (SN: 000101 & Above) Continuity And Wiring Diagrams Parts Diagram

Classic 26" Snow Blower, 9hp Tecumseh

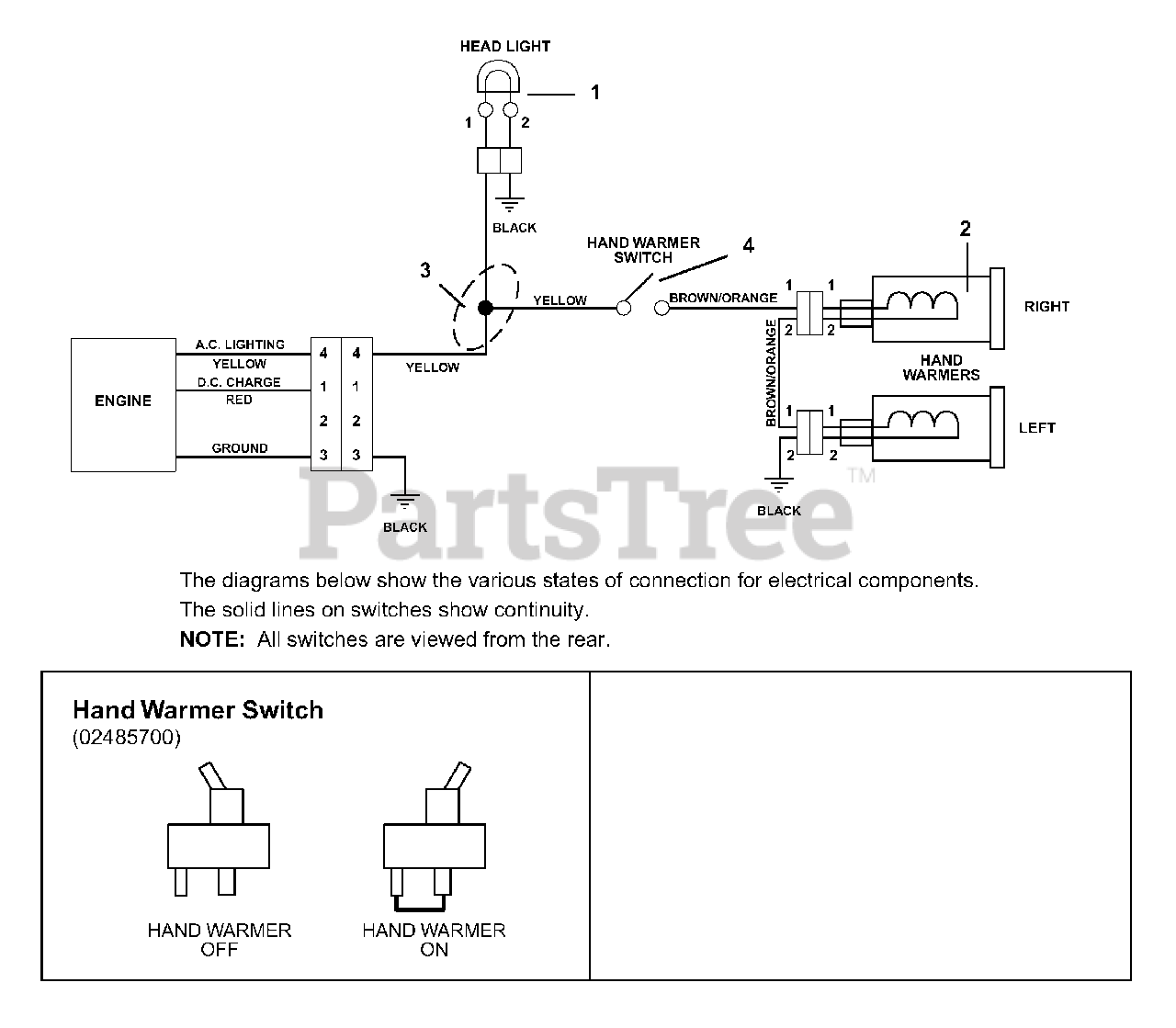

Continuity And Wiring Diagrams Parts Diagram

  • Title

1

Ariens 02485000

HEADLAMP, OVAL W/ 1156 BULB
(Superseded to 52423200)

$52.99

$

Usually ships in 4-12 days

0

2

Ariens 07532900

WARMER, HAND W/TERMINAL
(Superseded to 07500514)

Note: (Recommend Fast Drying Epoxy for Installation)

$46.99

$

In Stock, only 2 left!

0

3

Ariens 00277600

HARNESS, WIRE-LIGHT,HANDWARMER
(Superseded to 00277601)

$77.99

$

Usually ships in 4-12 days

0

4

Ariens 02485700

SWITCH, ON/OFF

$15.99

$

Usually ships in 4-12 days

0
