924104 (ST 1028) - Ariens 28" Snow Blower, 10hp Tecumseh (SN: 001400 & Above) Friction Wheel Drive Parts Diagram

28" Snow Blower, 10hp Tecumseh

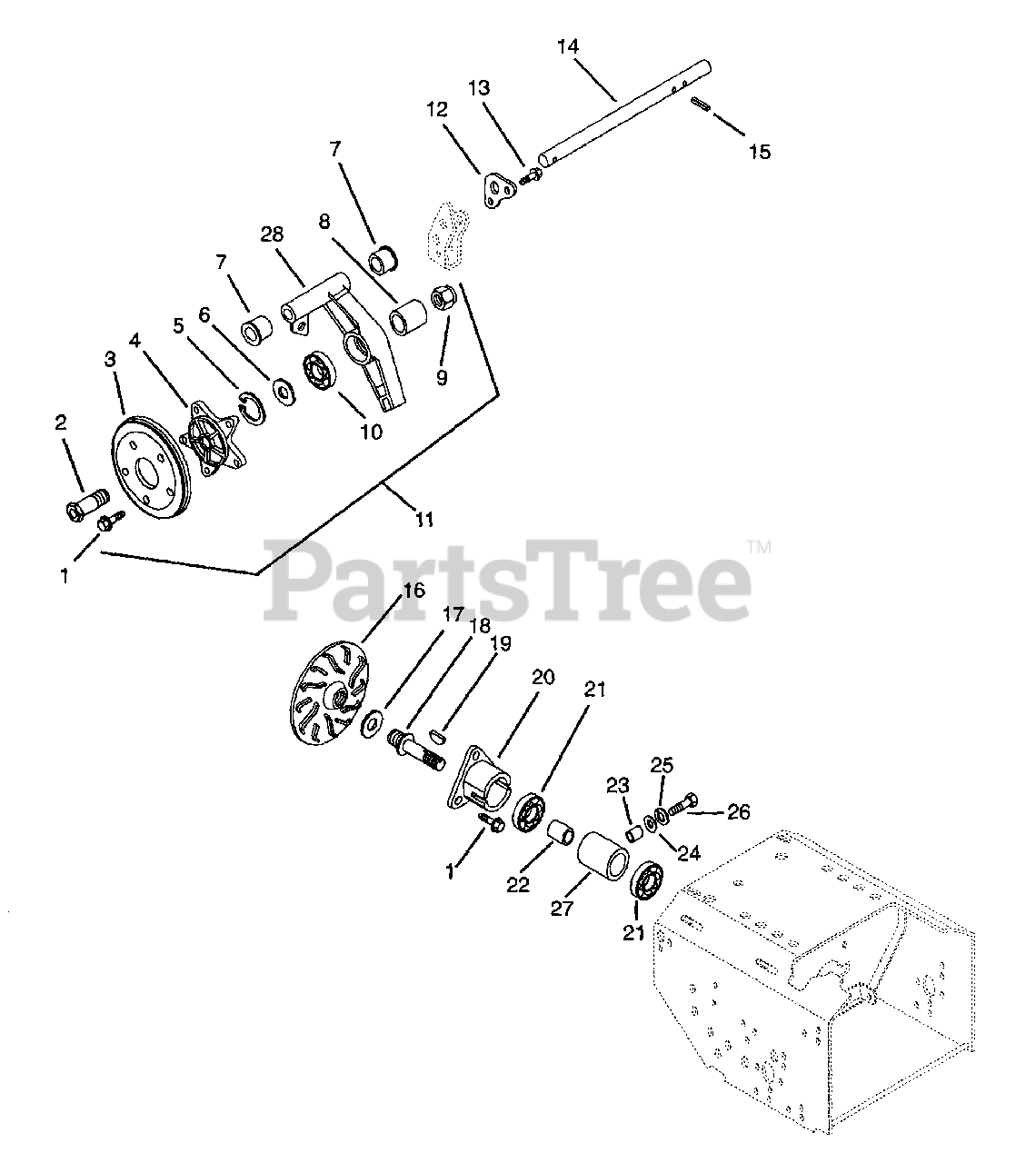

Friction Wheel Drive Parts Diagram

  • Title
1

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 02445500

SPINDLE HUB

$77.99

$

Usually ships in 4-12 days

0

3

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

4

Ariens 02445400

DISC HUB

$23.99

$

In Stock, only 1 left!

0

5

Ariens 05702100

RG-RTNG-INT 1.750X.062

$5.99

$

In Stock, only 1 left!

0

6

Ariens 06407100

WSHR-FL-STL .880X1.250X.062
(Superseded to 06436900)

$2.49

$

In Stock, Qty 11

0

7

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05512600

BSHG-SLV .882X1.250X.531

$5.99

$

In Stock, only 1 left!

0

9

Ariens 06530500

NUT-LK-NYL .875-14 YWZC

$6.99

$

Usually ships in 4-12 days

0

10

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

In Stock, Qty 20+

0

11

Ariens 52404600

FRICTION WHEEL ASSEMBLY

Note: (Contains 1-10,28)

$204.99

$

In Stock, only 1 left!

0

12

Ariens 02407700

SUPPORT, SHAFT

$20.99

$

Usually ships in 4-12 days

0

13

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 02408100

CARRIER SHAFT

$

$

Not available

15

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 20+

0

16

Ariens 01054600

DRIVE PLATE

$163.99

$

Usually ships in 4-12 days

0

17

Ariens 02407100

DRIVE DISC SPACER 1.3X.76X.19

$15.99

$

Usually ships in 4-12 days

0

18

Ariens 02407600

SPINDLE

$75.99

$

Usually ships in 4-12 days

0

19

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

20

Ariens 02458200

HOUSING MOUNT

$91.99

$

In Stock, only 4 left!

0

21

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

22

Ariens 02415500

BEARING SPACER

$4.99

$

Usually ships in 4-12 days

0

23

$15.99

$

In Stock, only 2 left!

0

24

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 02458100

SPINDLE HOUSING

$77.99

$

Usually ships in 4-12 days

0

28

Ariens 02444500

CARRIER
(Superseded to 52404600)

$204.99

$

In Stock, only 1 left!

0
