924100 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 - 008199) Speed Selector, Frame And Wheels Parts Diagram

24" Snow Blower, 8hp Tecumseh

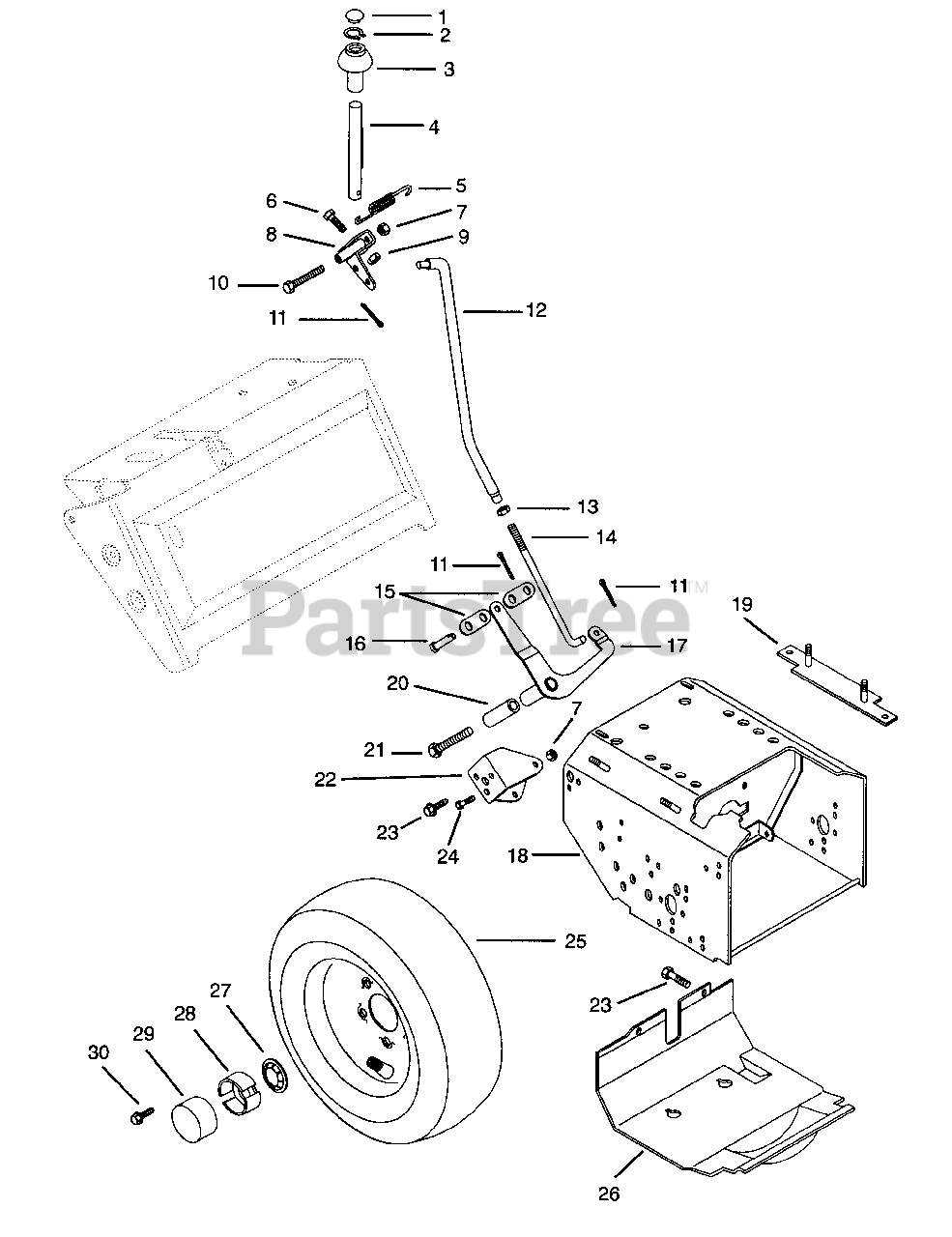

Speed Selector, Frame And Wheels Parts Diagram

  • Title

1

Ariens 07516700

HOLE PLUG

$1.49

$

In Stock, Qty 15

0

2

Ariens 05708600

RG-RTNG-EXT .500X.015

$2.99

$

In Stock, Qty 11

0

3

Ariens 07509600

KNOB

$

$

Not available

4

Ariens 02444800

ROD
(Superseded to 02444851)

$83.99

$

Usually ships in 4-12 days

0

5

Ariens 08318400

SG-TENS .055X.33X1.31 WLD 7

$10.99

$

In Stock, only 1 left!

0

6

Ariens 05956900

BLT-HEX .25-20X1.0 YWZC
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

7

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 02462600

PIVOT

$

$

Not available

9

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$

$

Not available

11

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 8

0

12

Ariens 02465700

UPPER SHIFT ROD

$165.99

$

Usually ships in 4-12 days

0

13

Ariens 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

14

Ariens 02465600

LOWER SHIFT ROD

$35.99

$

In Stock, only 1 left!

0

15

Ariens 02449300

SHIFT LINK

$

$

Not available

16

Ariens 01215100

CLEVIS PIN

$

$

Not available

17

Ariens 02423200

LEVER - SHIFT ARM

$51.99

$

Usually ships in 4-12 days

0

18

Ariens 02401900

FRAME
(Superseded to 02401959)

$

$

Not available

19

Ariens 02401800

BOLT STRAP

Note: (100,101,102,104,105,106,318,319)

$26.99

$

Usually ships in 4-12 days

0

19

Ariens 02402400

BOLT STRAP

Note: (103,317,320,321,322)

$

$

Not available

20

Ariens 02411500

SPACER .5 X .33 X 2.4

$

$

Not available

21

Ariens 05962500

@BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0

22

Ariens 02423100

BRACKET SHIFT LEVER

$

$

Not available

23

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

25

Ariens 07103700

TUBE

Note: (100,101,104,105,106,317,318,319,322)

$14.99

$

Usually ships in 4-12 days

0

25

Ariens 07108700

TUBE

Note: (102,103,320,321)

$34.99

$

Usually ships in 4-12 days

0

25

Ariens 07107600

WHL

Note: (100,101,104,105,106,317,318,319,322)

$67.99

$

In Stock, only 1 left!

0

25

Ariens 07107700

WHL

Note: (102,103,320,321)

$82.99

$

Usually ships in 4-12 days

0

25

Ariens 07121800

TIRE 4.80-8 NHS

Note: (100,101,104,105,106,317,318,319,322)

$74.99

$

Usually ships in 4-12 days

0

25

Ariens 07121600

TIRE 16X6.50-8 SNO-HOG TREAD
(Superseded to 07124000)

Note: (102,103,320,321)

$

$

Not available

25

Ariens 07121900

T/WHL ASSY 4.80-8
(Superseded to 07100017)

Note: (100,101,104,105,106,317,318,319,322)

$136.99

$

Usually ships in 4-12 days

0

25

Ariens 07121700

T/WHL ASSY 16X6.50-8 SNO-HOG
(Superseded to 07100018)

Note: (102,103,320,321)

$

$

Not available

26

Ariens 02443000

BOTTOM COVER
(Superseded to 02443059)

$90.99

$

Usually ships in 4-12 days

0

27

Ariens 01036600

PUSHNUT

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

29

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

30

Ariens 07412200

SCR-TAP .500-20X.62 HH YWZC
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0
