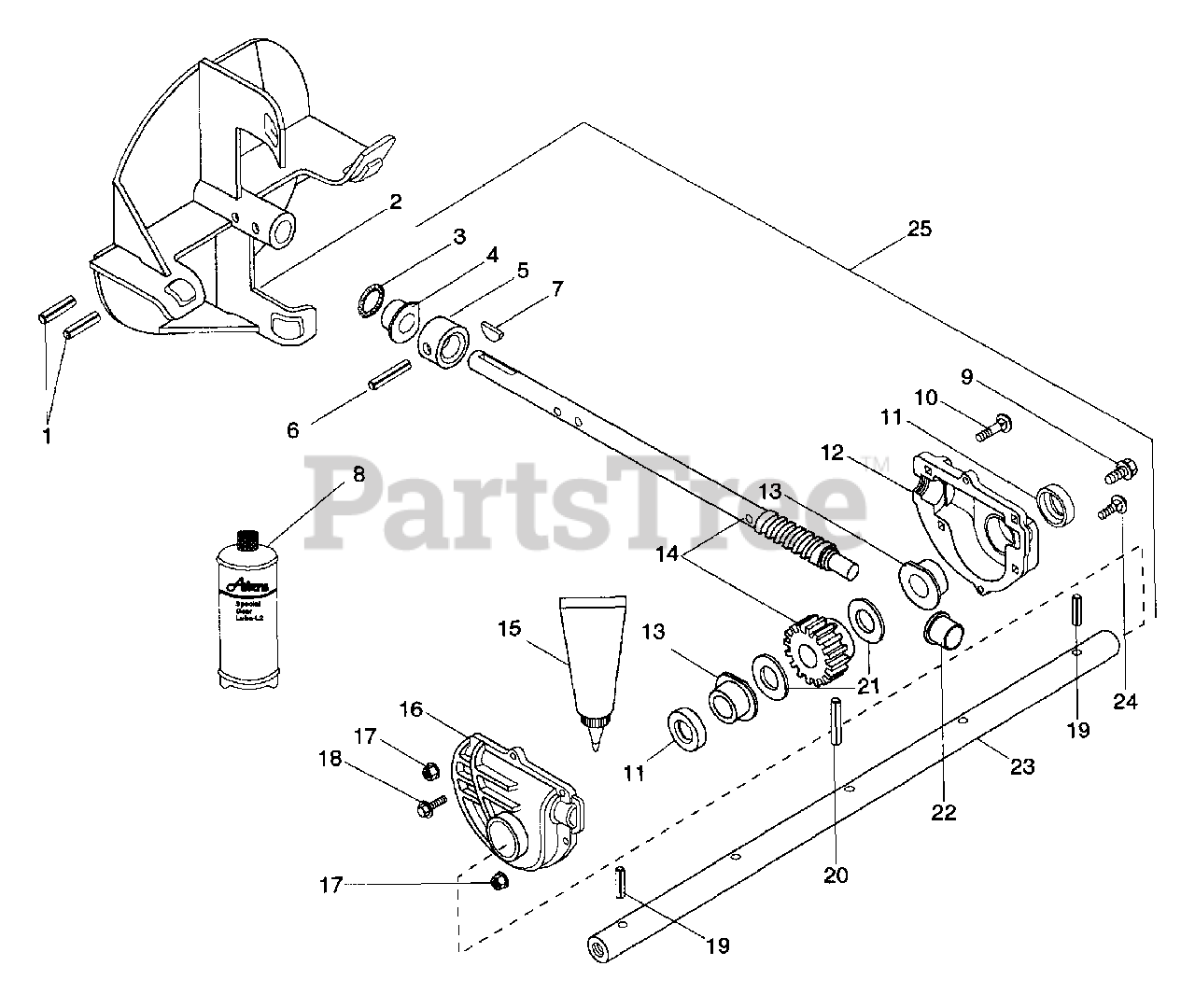

924093 (ST 924) - Ariens 24" Snow Blower, 9hp Tecumseh (SN: 000101 - 001699) Gear Case Aluminum Parts Diagram

24" Snow Blower, 9hp Tecumseh

Gear Case Aluminum Parts Diagram

  • Title
1

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

2

Ariens 02423700

FAN - 12"
(Superseded to 02423751)

$258.99

$

In Stock, only 1 left!

0

3

Ariens 05613500

SEAL .750X1.000X.150
(Superseded to 05604300)

$5.99

$

In Stock, Qty 18

0

4

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$11.99

$

In Stock, Qty 17

0

5

Ariens 03210300

THRUST COLLAR

$62.99

$

Usually ships in 4-12 days

0

6

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 5

0

7

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 9

0

8

Ariens 00008100

BOTTLE ONLY-S.SCREEN.FOR NO.80

$

$

Not available

9

Ariens 07401600

SCR-TAP .375-16X .50 HWH PL TR
(Superseded to 07412900)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06200100

BLT-RDHDSQNK .25-20X1.25 GR5PL
(Superseded to 06219700)

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 05606100

SEAL 1.000X1.312X.150

$11.99

$

In Stock, Qty 20+

0

12

Ariens 02406600

GEAR CASE-LH-LARGE BORE
(Superseded to 52408200)

$237.99

$

Usually ships in 4-12 days

0

13

Ariens 05520500

BSHG-FLG 1.003X1.5X.625

$9.99

$

In Stock, Qty 16

0

14

Ariens 52402600

WORM SHAFT & GEAR ASSY

$

$

Not available

15

Ariens 00031700

LOCTITE 518 GASKET--6ML TUBE

$17.99

$

In Stock, Qty 9

0

16

Ariens 02406700

GEAR CASE-RH-LARGE BORE
(Superseded to 52408200)

$237.99

$

Usually ships in 4-12 days

0

17

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 8

0

19

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

20

Ariens 05806900

PIN-GRV .313X1.44 TP C

$5.99

$

In Stock, Qty 5

0

21

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

22

Ariens 05520600

BSHG-FLG .502X1X.750

$9.49

$

In Stock, Qty 9

0

23

Ariens 02438300

SHAFT, RAKE - 24"

$

$

Not available

24

Ariens 06205400

BLT-RDHDSQNK .25-20X.88 PL
(Superseded to 06219800)

$2.49

$

In Stock, only 3 left!

0

25

Ariens 52407300

GEAR CASE - 24" - ALUMINUM
(Superseded to 52423000)

$581.99

$

Usually ships in 4-12 days

0
