924084 (ST 1032) - Ariens 32" Snow Blower, 10hp Tecumseh (SN: 000101 - 002334) Engine And Belt Drive Parts Diagram

32" Snow Blower, 10hp Tecumseh

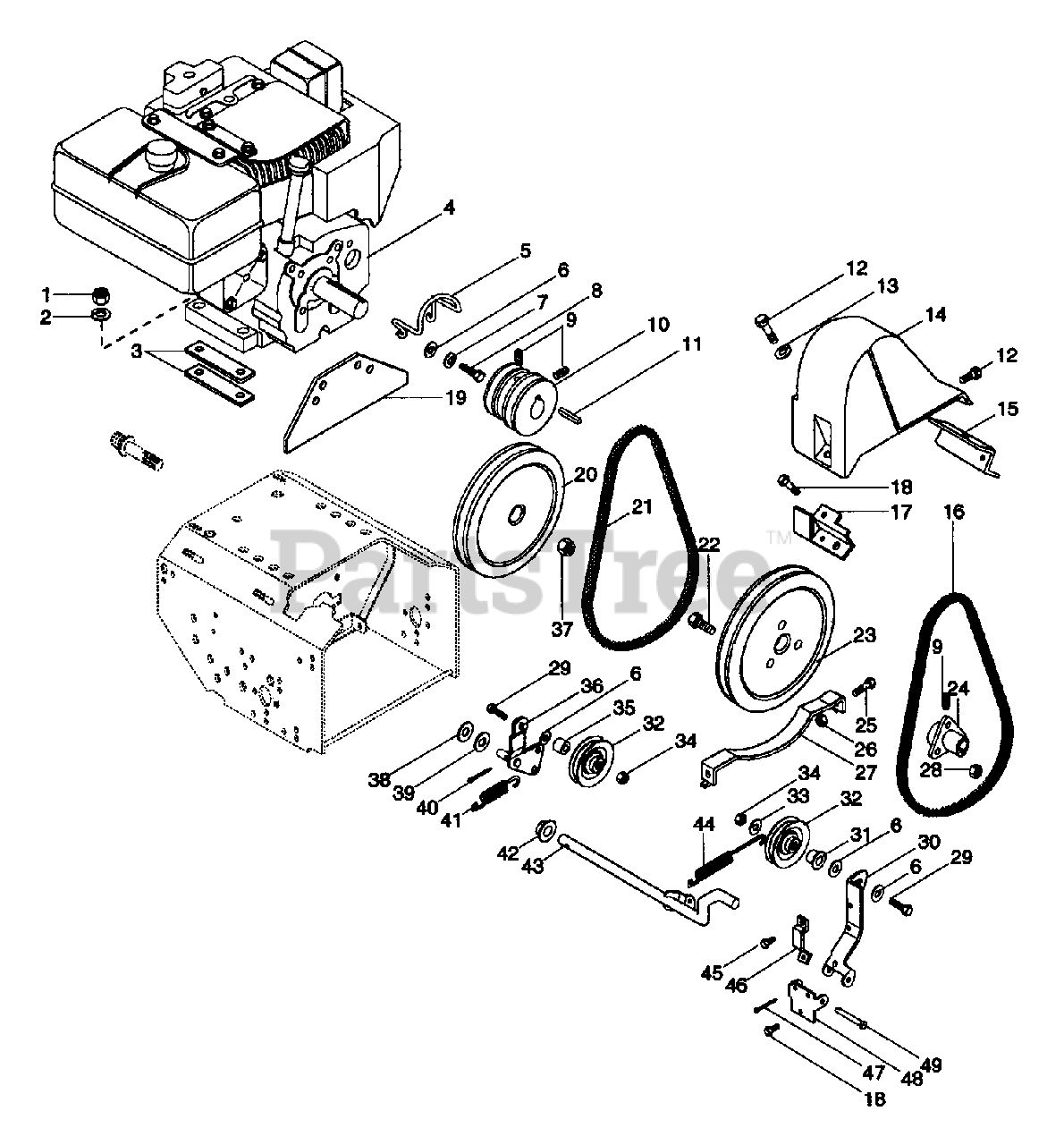

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

2

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 18

0

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

Note: (85)

$0.99

$

In Stock, only 3 left!

0

3

Ariens 02458700

STRAP

Note: (85)

$

$

Not available

4

Ariens 08223300

8HP TEC ENGINE

Note: (80, 81, 82, 83, 89)

$

$

Not available

Ariens 08225500

ENGINE-10HP TEC 18 WATT ALTR

Note: (84, 86, 88)

$

$

Not available

Ariens 08227500

ENGINE-OHSK 120 TEC W/18 WATT

Note: (85)

$

$

Not available

5

Ariens 02425300

BELT FINGER
(Superseded to 52407700)

$

$

Not available

6

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

10

Ariens 02402100

ENGINE SHEAVE

Note: (81)

$

$

Not available

Ariens 02435700

SHEAVE, ENGINE

Note: (80, 82, 83, 84, 85, 86)

$103.99

$

Usually ships in 4-12 days

0

11

Ariens 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 2 left!

0

12

Ariens 07404900

SCR-TAP .25-20X.50 HWHPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06406500

WSHR-FL-STL .268X.562X.046 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 02440600

BELT COVER

$

$

Not available

15

Ariens 02450100

L.H. SUPPORT
(Superseded to 02450151)

Note: (85)

$36.99

$

Usually ships in 4-12 days

0

16

Ariens 07208600

V-BELT, 4L-RAW EDGE

Note: (82)

$29.99

$

In Stock, Qty 19

0

Ariens 07210800

V-BELT, 4L-RAW EDGE

Note: (81, 83, 84, 86)

$46.99

$

In Stock, Qty 20+

0

Ariens 07213000

V-BELT, 4L-RAW EDGE

Note: (85)

$33.99

$

In Stock, Qty 6

0

17

Ariens 02450700

R.H. SUPPORT
(Superseded to 02450751)

Note: (85)

$41.99

$

Usually ships in 4-12 days

0

18

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 02459700

PLATE

Note: (85)

$27.99

$

Usually ships in 4-12 days

0

20

Ariens 07304900

PLY-V 8.00 X 1.0 W/KEY CLARK

$79.99

$

Usually ships in 4-12 days

0

21

Ariens 07206600

V-BELT, 3L-RAW EDGE

Note: (80, 82, 83, 84, 86))

$37.99

$

In Stock, Qty 20+

0

Ariens 07209800

BELT,3L 33.00 RAW LAM C-L2089
(Superseded to 07232100)

Note: (81)

$37.99

$

In Stock, Qty 6

0

Ariens 07213100

V-BELT, 3L-RAW EDGE

Note: (85)

$27.99

$

In Stock, only 2 left!

0

22

Ariens 07006000

BLT-SERRDHD SL .31-18X.87 PL
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

23

Ariens 07307000

PLY-V 9.0 X 1.25 3BLT

$51.99

$

In Stock, only 4 left!

0

24

Ariens 02438900

HUB

$113.99

$

In Stock, only 2 left!

0

25

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 02423600

BELT RETAINER
(Superseded to 02423651)

Note: (83, 84, 85, 86)

$22.99

$

Usually ships in 4-12 days

0

28

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 9

0

30

Ariens 02434800

ARM, IDLER
(Superseded to 02434851)

$51.99

$

Usually ships in 4-12 days

0

31

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 1 left!

0

32

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

33

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, Qty 8

0

36

Ariens 02453700

IDLER ARM
(Superseded to 02453751)

$77.99

$

Usually ships in 4-12 days

0

37

Ariens 06507700

NUT-LK-NYL.625-18 PL
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0

38

Ariens 01026000

WAVE WASHER .406X.750X.063FH

$2.49

$

Usually ships in 4-12 days

0

39

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

40

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

41

Ariens 08309400

SG-TENS .080X.73X3.06 WLD 20

$34.99

$

In Stock, only 4 left!

0

42

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 17

0

43

Ariens 02442800

ACTIVATING SHAFT

$68.99

$

Usually ships in 4-12 days

0

44

Ariens 08317200

SG-TENS .047X.44X3.37 WLD 1.47

$14.99

$

In Stock, Qty 6

0

45

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

46

Ariens 02435300

RETURN CLIP

$29.99

$

Usually ships in 4-12 days

0

47

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

48

Ariens 02434700

BRACKET
(Superseded to 02434751)

$38.99

$

Usually ships in 4-12 days

0

49

Ariens 02435400

PIN-CLEV .309X2.25

$

$

Not available
