924075 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 & Above) Speed Selector And Wheels Parts Diagram

24" Snow Blower, 7hp Tecumseh

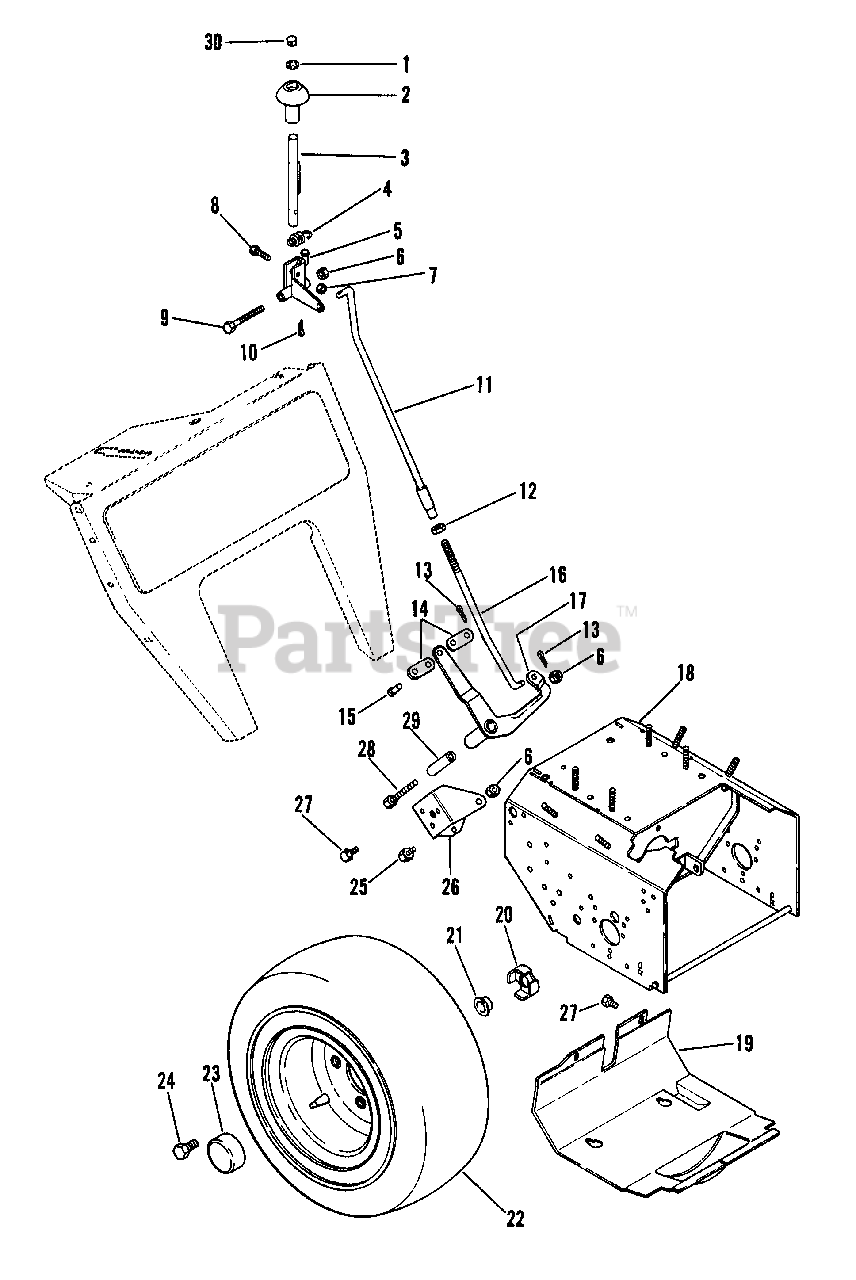

Speed Selector And Wheels Parts Diagram

  • Title

1

Ariens 05708600

RG-RTNG-EXT .500X.015

$2.99

$

In Stock, Qty 11

0

2

Ariens 07509600

KNOB

$

$

Not available

3

Ariens 02444800

ROD
(Superseded to 02444851)

$83.99

$

Usually ships in 4-12 days

0

4

Ariens 08318400

SG-TENS .055X.33X1.31 WLD 7

$10.99

$

In Stock, only 1 left!

0

5

Ariens 02444300

PIVOT

$

$

Not available

6

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

9

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

11

Ariens 02444200

UPPER SHIFT ROD

$263.99

$

Usually ships in 4-12 days

0

12

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$1.99

$

Usually ships in 4-12 days

0

13

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

14

Ariens 02449300

SHIFT LINK

$

$

Not available

15

Ariens 01215100

CLEVIS PIN

$

$

Not available

16

Ariens 02444100

LOWER SHIFT ROD

$

$

Not available

17

Ariens 02423200

LEVER - SHIFT ARM

$51.99

$

Usually ships in 4-12 days

0

18

Ariens 02458800

TRACTOR FRAME ST824-ST1032

Note: (50,51,73,77)

$

$

Not available

Ariens 02450200

TRACTOR FRAME

Note: (71)

$

$

Not available

Ariens 02443600

FRAME

Note: (74,75)

$

$

Not available

Ariens 02458900

TRACTOR FRAME ST1236

Note: (76)

$

$

Not available

19

Ariens 02443000

BOTTOM COVER
(Superseded to 02443059)

$90.99

$

Usually ships in 4-12 days

0

20

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

21

Ariens 01036600

PUSHNUT

Note: (50,51,71,73)

$5.99

$

Usually ships in 4-12 days

0

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

Note: (74,75)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07103700

TUBE

Note: (50,51,74)

$14.99

$

In Stock, only 1 left!

0

Ariens 07105000

TUBE

Note: (75)

$11.99

$

Usually ships in 4-12 days

0

Ariens 07108700

TUBE

Note: (71,73)

$34.99

$

Usually ships in 4-12 days

0

Ariens 07105200

WHL 6 IN O.D.
(Superseded to 07103800)

Note: (75)

$

$

Not available

Ariens 07107600

WHL

Note: (50,51,74,77)

$67.99

$

In Stock, only 1 left!

0

Ariens 07107700

WHL

Note: (71,73,76)

$82.99

$

Usually ships in 4-12 days

0

Ariens 07102100

TIRE 16X6.50-8 2 PLY

Note: (71,73);924071 SN <008200 & 924073 SN <012400

$79.99

$

Usually ships in 4-12 days

0

Ariens 07104600

TIRE 4.10/3.50X6

Note: (75);924075 SN <000101

$

$

Not available

Ariens 07105200

WHL 6 IN O.D.
(Superseded to 07103800)

Note: (71,73);924071 SN <008200 & 924073 SN <012400

$

$

Not available

Ariens 07108200

TIRE
(Superseded to 07100017)

Note: (50,51,74);924050 SN <085100 & 924051 SN <000700 & 924074 SN <000101

$136.99

$

Usually ships in 4-12 days

0

Ariens 07115100

T/WHL ASSY 4.80/4.00 X 8
(Superseded to 07100017)

Note: (50,51,74);924050 SN <085100 & 924051 SN <000700

$136.99

$

Usually ships in 4-12 days

0

Ariens 07116500

T/WHL ASSY

Note: (75);924075 SN <000101

$

$

Not available

Ariens 07121600

TIRE 16X6.50-8 SNO-HOG TREAD
(Superseded to 07124000)

Note: (71,73,76);924071 SN 008201> & 924073 SN 012401> & 924076 000101>

$

$

Not available

Ariens 07121700

T/WHL ASSY 16X6.50-8 SNO-HOG
(Superseded to 07100018)

Note: (71,73,76);924071 SN 008201> & 924073 SN 012401> & 924076 000101>

$

$

Not available

Ariens 07121800

TIRE 4.80-8 NHS

Note: (50,51,77);924050 SN 085101> & 924051 SN 000701> & 924077 000101>

$74.99

$

Usually ships in 4-12 days

0

Ariens 07121900

T/WHL ASSY 4.80-8
(Superseded to 07100017)

Note: (50,51,77);924050 SN 085101> & 924051 SN 000701> & 924077 000101>

$136.99

$

Usually ships in 4-12 days

0

23

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

24

Ariens 07406300

SCR-TAP .500-20X.62 HH PL
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0

25

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

26

Ariens 02423100

BRACKET SHIFT LEVER

$

$

Not available

27

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 05913600

BLT-HEX .31-18X3.00 PL GR2
(Superseded to 05962500)

$3.99

$

In Stock, only 4 left!

0

29

Ariens 02411500

SPACER .5 X .33 X 2.4

$

$

Not available

30

Ariens 07516700

HOLE PLUG

$1.49

$

In Stock, Qty 16

0
