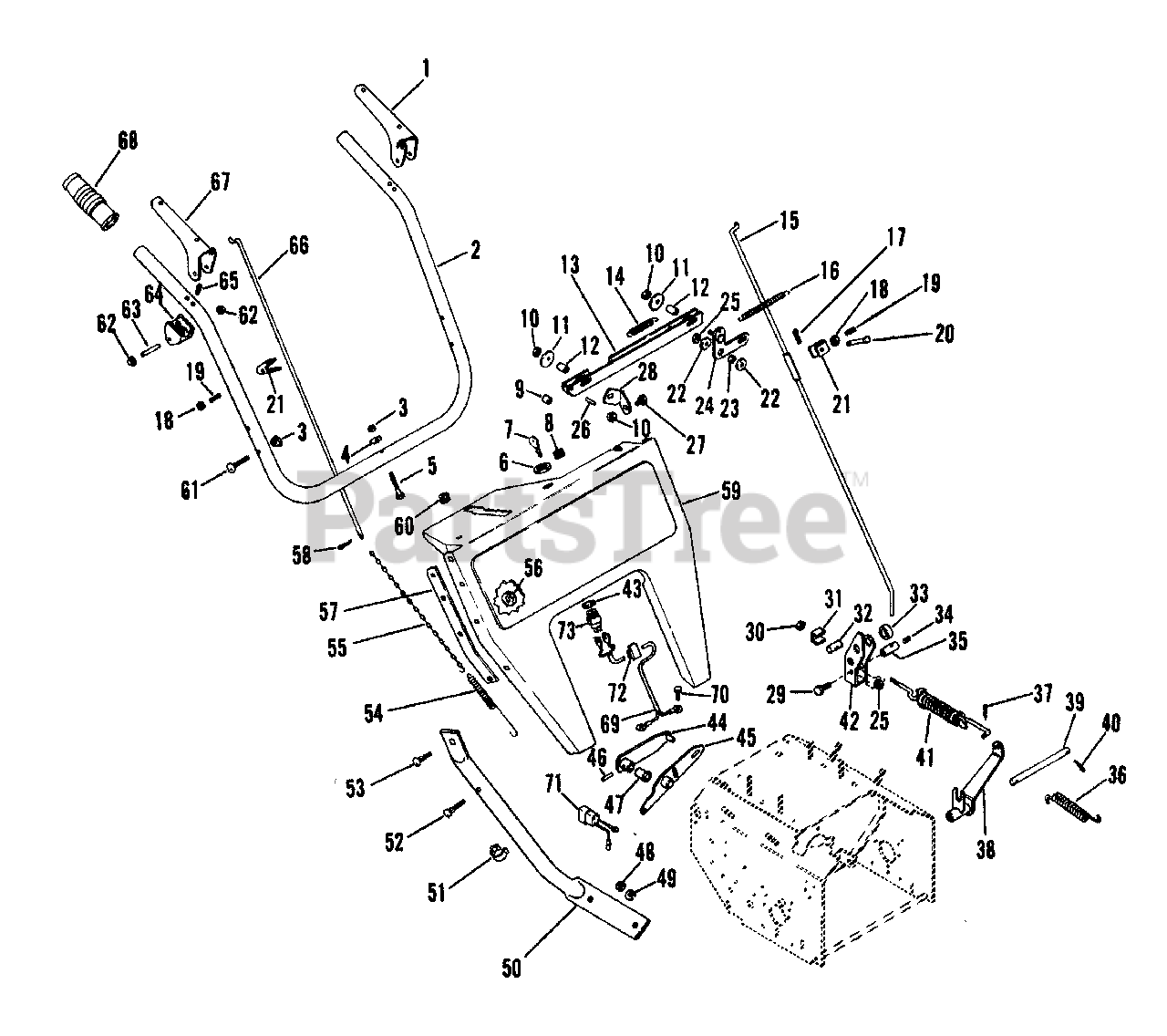

924051 (TT 8) - Ariens Snow Blower, 8hp Tecumseh (SN: 000501 & Above) Handlebars And Controls Parts Diagram

Snow Blower, 8hp Tecumseh

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 03213500

HANDLE - TRACTOR CLUTCH

$38.99

$

Usually ships in 4-12 days

0

2

Ariens 02443100

UPPER HANDLEBAR LW

Note: (50,51,71,73,74,76,77)

$

$

Not available

Ariens 02457300

UPPER HANDLEBAR

Note: (75)

$

$

Not available

3

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06409400

WSHR-FL-STL .265X.500X.087 PL
(Superseded to 06439500)

$1.49

$

Usually ships in 4-12 days

0

5

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 17

0

6

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

$7.99

$

Usually ships in 4-12 days

0

7

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

8

Ariens 07509500

SNAP BUSHING

$1.49

$

Usually ships in 4-12 days

0

9

Ariens 05513100

BSHG-SLV .188X.500X.480

$

$

Not available

10

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$

$

Not available

12

Ariens 05513200

BSHG-SLV .250X.375X.640

$

$

Not available

13

Ariens 02445900

SLIDER

$

$

Not available

14

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

In Stock, only 1 left!

0

15

Ariens 02443300

CLUTCH ROD

Note: (50,51,71,73,74,76,77)

$

$

Not available

15

Ariens 02444400

CLUTCH ROD

Note: (75)

$

$

Not available

16

Ariens 08318700

SG-TENS .062X.43X5.75 WLD 20

$20.99

$

In Stock, only 1 left!

0

17

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

18

Ariens 06509900

NUT-HEX JAM .25-20 YWZC
(Superseded to 06500908)

$0.99

$

Usually ships in 4-12 days

0

19

Ariens 06003600

SCR-SET .25-20X.75 SKHCUP OH

$1.99

$

Usually ships in 4-12 days

0

20

Ariens 02445800

CLEVIS PIN

$

$

Not available

21

Ariens 02445700

CLEVIS

$9.49

$

Usually ships in 4-12 days

0

22

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

24

Ariens 02446000

BELLCRANK

$

$

Not available

25

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05800500

PIN-ROLL .188X.88

$1.99

$

In Stock, only 3 left!

0

27

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 02454900

STUD BRACE

$

$

Not available

29

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 01054200

ADAPTER SPACER

$

$

Not available

32

Ariens 02422700

ADAPTER

$11.99

$

Usually ships in 4-12 days

0

33

Ariens 02408600

SPACER 1.00 X .64 X .38

$

$

Not available

34

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

35

Ariens 02213500

ROD ADAPTER

$38.99

$

Usually ships in 4-12 days

0

36

Ariens 08309400

SG-TENS .080X.73X3.06 WLD 20

$34.99

$

In Stock, only 4 left!

0

37

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

38

Ariens 02427200

FORK, CLUTCH

$62.99

$

Usually ships in 4-12 days

0

39

Ariens 02406900

ROD, FORK PIVOT

$30.99

$

Usually ships in 4-12 days

0

40

Ariens 06700200

PIN-COTR .09X1.0 PL

$0.99

$

Usually ships in 4-12 days

0

41

Ariens 52404700

SPRING ASSEMBLY

$57.99

$

Usually ships in 4-12 days

0

42

Ariens 02422800

CLUTCH ENGAGEMENT YOKE
(Superseded to 02422851)

$28.99

$

Usually ships in 4-12 days

0

43

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

44

Ariens 03201000

LEVER CLUTCH

$77.99

$

Usually ships in 4-12 days

0

45

Ariens 02442900

LEVER

$66.99

$

Usually ships in 4-12 days

0

46

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 9

0

47

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 17

0

48

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

50

Ariens 02444600

LOWER HANDLEBAR LH
(Superseded to 02444651)

$242.99

$

Usually ships in 4-12 days

0

Ariens 02444700

LOWER HANDLEBAR RH

$182.99

$

Usually ships in 4-12 days

0

51

Ariens 06901200

CLAMP

$5.49

$

In Stock, only 1 left!

0

52

Ariens 06206200

BLT-RDHDSQNK .31-18X1.50 PL BL

$

$

Not available

53

Ariens 06206700

BLT-RDHDSQNK .31-18X.75 PL BL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

54

Ariens 08318300

SG-TENS .091X.56X6.12 WLD 40

$30.99

$

Usually ships in 4-12 days

0

55

Ariens 00227000

CLUTCH CHAIN

$18.99

$

In Stock, only 3 left!

0

56

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 02446700

L H STIFFENER

$

$

Not available

Ariens 02446800

R H STIFFENER

$

$

Not available

58

Ariens 06701800

PIN-COTR .12X.50 PL
(Superseded to 06711800)

$

$

Not available

59

Ariens 52406200

PANEL W/DECAL
(Superseded to 52410600)

$

$

Not available

60

Ariens 07505000

SNAP BUSHING-.437

$

$

Not available

61

Ariens 06206000

BLT-RDHDSQNK .25-20X1.50 PL BL

$1.49

$

Usually ships in 4-12 days

0

62

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

63

Ariens 02453900

PIN

$12.99

$

Usually ships in 4-12 days

0

64

Ariens 02212900

HANDLE PIVOT

$21.99

$

Usually ships in 4-12 days

0

65

Ariens 07403900

SCR-TAP 12-14X1.50 CROVH PL BT
(Superseded to 07411800)

$

$

Not available

66

Ariens 02445600

ATTACH CLUTCH ROD

$18.99

$

Usually ships in 4-12 days

0

67

Ariens 03213600

HANDLE - ATTACHMENT CLUTCH

$25.99

$

Usually ships in 4-12 days

0

68

Ariens 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

69

Ariens 02216100

SHORTING WIRE

$

$

Not available

70

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

71

Ariens 02455100

JUMPER

Note: (71)

$

$

Not available

Ariens 02458400

JUMPER

Note: (73,76,77)

$

$

Not available

72

Ariens 07510700

WIRE CLIP

$

$

Not available

73

Ariens 02456500

KEY SWITCH ASSEMBLY
(Superseded to 52406900)

$39.99

$

Usually ships in 4-12 days

0
