924048 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 - 019000) 24" & 32" Snow-Thro Parts Diagram

24" Snow Blower, 7hp Tecumseh

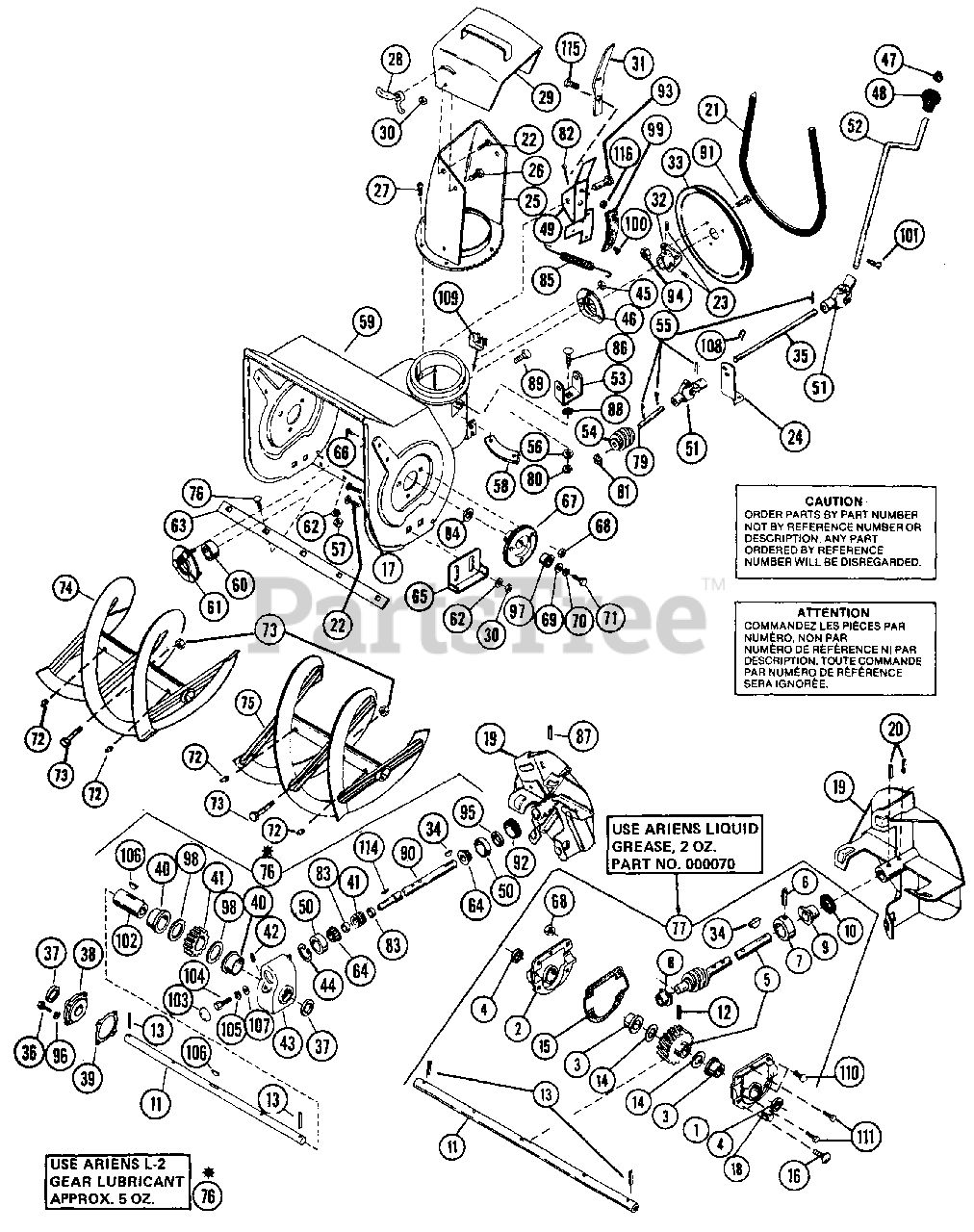

24" & 32" Snow-Thro Parts Diagram

  • Title

1

Ariens 02437900

GEAR CASE HALF L H
(Superseded to 52408200)

Note: (924046, 048, 050)

$237.99

$

Usually ships in 4-12 days

0

2

Ariens 02438000

GEAR CASE HALF R H
(Superseded to 52408200)

Note: (924046, 048, 050)

$237.99

$

Usually ships in 4-12 days

0

3

Ariens 05512200

BSHG-FLG1.000X1.12X.62X1.50BR

Note: (924046, 048, 050)

$15.99

$

Usually ships in 4-12 days

0

4

Ariens 05606100

SEAL 1.000X1.312X.150

Note: (924046, 048, 050)

$11.99

$

In Stock, Qty 14

0

5

Ariens 52402600

WORM SHAFT & GEAR ASSY

Note: (924046, 048, 050)

$

$

Not available

6

Ariens 05804500

PIN-GRV .188X1.25 TP A

Note: (924046, 048, 050)

$10.99

$

In Stock, only 4 left!

0

7

Ariens 03210300

THRUST COLLAR

Note: (924046, 048, 050)

$62.99

$

Usually ships in 4-12 days

0

8

Ariens 05511100

BSHG-FLG .500X.750X.750X1.000
(Superseded to 05520600)

Note: (924046, 048, 050)

$9.49

$

In Stock, Qty 6

0

9

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

Note: (924046, 048, 050)

$11.99

$

In Stock, Qty 15

0

10

Ariens 05604700

O-RING .250X.943X.103

Note: (924046, 048, 050)

$2.49

$

In Stock, Qty 7

0

11

Ariens 02438300

SHAFT, RAKE - 24"

Note: (924046, 048, 050)

$

$

Not available

12

Ariens 05806900

PIN-GRV .313X1.44 TP C

Note: (924046, 048, 050)

$5.99

$

In Stock, only 1 left!

0

13

Ariens 05803000

PIN-ROLL .188X1.50

Note: (924046, 048, 050, 052)

$0.99

$

In Stock, Qty 18

0

14

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

Note: (924046, 048, 050)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 03203800

GASKET

Note: (924046, 048, 050)

$4.99

$

In Stock, Qty 11

0

16

Ariens 06205400

BLT-RDHDSQNK .25-20X.88 PL
(Superseded to 06219800)

Note: (924046, 048, 050)

$2.49

$

In Stock, only 3 left!

0

17

NOT USED ON THIS MODEL

$

$

Not available

18

Ariens 07001000

BLT-SCRHFWH .38-16X.50 PL

Note: (924046, 048, 050)

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 02423700

FAN - 12"
(Superseded to 02423751)

Note: (924046, 048, 050)

$258.99

$

In Stock, only 1 left!

0

20

Ariens 05803700

PIN-ROLL .250X1.75

Note: (924046, 048, 050)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07210800

V-BELT, 4L-RAW EDGE

Note: (924046, 048, 052)

$46.99

$

In Stock, Qty 20+

0

22

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

Note: (924046, 048, 050)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

24

Ariens 02443400

CHUTE CRANK BRACKET
(Superseded to 02473551)

$

$

Not available

25

Ariens 02434900

DISCHARGE CHUTE
(Superseded to 52408500)

Note: (924046, 048, 050)

$

$

Not available

26

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

Note: (924046, 048, 050)

$0.99

$

Usually ships in 4-12 days

0

28

Ariens 01019300

WING NUT

$

$

Not available

29

Ariens 51001200

SERVICE DEFLECTOR ASSM
(Superseded to 52406100)

$149.99

$

Usually ships in 4-12 days

0

30

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

31

NOT USED ON THIS MODEL

$

$

Not available

32

Ariens 02438900

HUB

$113.99

$

In Stock, only 2 left!

0

33

Ariens 07307000

PLY-V 9.0 X 1.25 3BLT

$51.99

$

In Stock, only 4 left!

0

34

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 7

0

35

Ariens 02434600

ROD

$45.99

$

Usually ships in 4-12 days

0

36

NOT USED ON THIS MODEL

$

$

Not available

37

NOT USED ON THIS MODEL

$

$

Not available

38

NOT USED ON THIS MODEL

$

$

Not available

39

NOT USED ON THIS MODEL

$

$

Not available

40

NOT USED ON THIS MODEL

$

$

Not available

41

NOT USED ON THIS MODEL

$

$

Not available

42

NOT USED ON THIS MODEL

$

$

Not available

43

NOT USED ON THIS MODEL

$

$

Not available

44

NOT USED ON THIS MODEL

$

$

Not available

45

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 01014200

BEARING FLANGE

Note: (924046, 048, 050)

$5.99

$

In Stock, Qty 20+

0

47

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 14

0

48

Ariens 07508300

KNOB

$13.99

$

In Stock, Qty 6

0

49

Ariens 62403500

BRAKE ARM ASSEMBLY
(Superseded to 52404800)

$28.99

$

Usually ships in 4-12 days

0

50

NOT USED ON THIS MODEL

$

$

Not available

51

Ariens 62406500

UNIVERSAL JOINT ASSY
(Superseded to 02470400)

$129.99

$

Usually ships in 4-12 days

0

52

Ariens 02446100

CHUTE CONTROL CRANK
(Superseded to 03710000)

$54.99

$

Usually ships in 4-12 days

0

53

Ariens 02212300

WORM CLEVIS

$15.99

$

Usually ships in 4-12 days

0

54

Ariens 02442700

WORM GEAR L. H.

$

$

Not available

55

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

56

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$5.99

$

In Stock, only 2 left!

0

57

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (924046, 048, 050)

$1.49

$

In Stock, Qty 20+

0

58

Ariens 01043800

CHUTE CLAMP
(Superseded to 52409200)

Note: (924046, 048, 050)

$29.99

$

In Stock, only 1 left!

0

59

Ariens 52403600

BLOWER HOUSING W/DECALS

Note: (924046,048)

$630.99

$

Usually ships in 4-12 days

0

60

Ariens 05406300

BRG-BALL .750X1.750X.50

Note: (924046, 048, 050)

$25.99

$

In Stock, Qty 19

0

61

Ariens 00301700

BEARING FLANGE

Note: (924046, 048, 050)

$17.99

$

In Stock, Qty 9

0

62

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

Note: (924046, 048, 050)

$1.49

$

In Stock, Qty 20+

0

63

Ariens 01016400

SCRAPER BLADE 24"
(Superseded to 01016459)

Note: (924046, 048, 050)

$43.99

$

In Stock, Qty 20+

0

64

NOT USED ON THIS MODEL

$

$

Not available

65

Ariens 01016500

RUNNER
(Superseded to 02483859)

Note: (924046, 048, 050)

$19.99

$

In Stock, Qty 20+

0

66

Ariens 07005800

BLT-SERNK SL .25-20X.50 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

67

Ariens 02437400

BEARING SUPPORT
(Superseded to 05063300)

$29.99

$

In Stock, only 1 left!

0

68

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (924046, 048, 050)

$0.99

$

In Stock, Qty 20+

0

69

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$2.99

$

In Stock, Qty 20+

0

70

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

71

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

72

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

73

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

$4.99

$

In Stock, Qty 20+

0

74

Ariens 52403900

RAKE, RIGHT-24"(1ID X 14.75OD)
(Superseded to 52411600)

Note: (924046, 048, 050)

$394.99

$

In Stock, only 1 left!

0

75

Ariens 52404000

RAKE, LEFT-24"(1"ID X 14.75OD)
(Superseded to 52411500)

Note: (924046, 048, 050)

$310.99

$

Usually ships in 4-12 days

0

76

NOT USED ON THIS MODEL

$

$

Not available

77

Ariens 52403000

GEAR CASE - 24" - ALUMINUM
(Superseded to 52423000)

Note: (924046, 048, 050)

$581.99

$

Usually ships in 4-12 days

0

79

Ariens 01049400

WORM SHAFT

$43.99

$

In Stock, only 1 left!

0

80

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

81

Ariens 01026000

WAVE WASHER .406X.750X.063FH

$2.49

$

Usually ships in 4-12 days

0

82

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

83

NOT USED ON THIS MODEL

$

$

Not available

84

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.49

$

In Stock, Qty 20+

0

85

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

86

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

87

NOT USED ON THIS MODEL

$

$

Not available

88

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

89

Ariens 07003100

BLT-SCRHFWH .38-16X.75 PL
(Superseded to 07028500)

$1.49

$

In Stock, Qty 20+

0

90

NOT USED ON THIS MODEL

$

$

Not available

91

Ariens 07006000

BLT-SERRDHD SL .31-18X.87 PL
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

92

NOT USED ON THIS MODEL

$

$

Not available

93

Ariens 02434500

CLEVIS PIN

$

$

Not available

94

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

95

NOT USED ON THIS MODEL

$

$

Not available

96

NOT USED ON THIS MODEL

$

$

Not available

97

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 20+

0

98

NOT USED ON THIS MODEL

$

$

Not available

99

Ariens 02217800

BRAKE LINING

$9.49

$

Usually ships in 4-12 days

0

100

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

$1.49

$

Usually ships in 4-12 days

0

101

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

102

NOT USED ON THIS MODEL

$

$

Not available

103

NOT USED ON THIS MODEL

$

$

Not available

104

NOT USED ON THIS MODEL

$

$

Not available

105

NOT USED ON THIS MODEL

$

$

Not available

106

NOT USED ON THIS MODEL

$

$

Not available

107

NOT USED ON THIS MODEL

$

$

Not available

108

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

Note: (924046, 048, 052)

$2.49

$

Usually ships in 4-12 days

0

109

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.49

$

In Stock, Qty 13

0

110

Ariens 06200100

BLT-RDHDSQNK .25-20X1.25 GR5PL
(Superseded to 06219700)

$3.99

$

Usually ships in 4-12 days

0

111

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 8

0

112

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

Note: (924046, 048, 050)

$2.49

$

In Stock, Qty 20+

0

114

NOT USED ON THIS MODEL

$

$

Not available

115

NOT USED ON THIS MODEL

$

$

Not available

116

NOT USED ON THIS MODEL

$

$

Not available
