924046 (ST 524) - Ariens 24" Snow Blower, 5hp Tecumseh (SN: 014501 & Above) Drive Assembly Parts Diagram

24" Snow Blower, 5hp Tecumseh

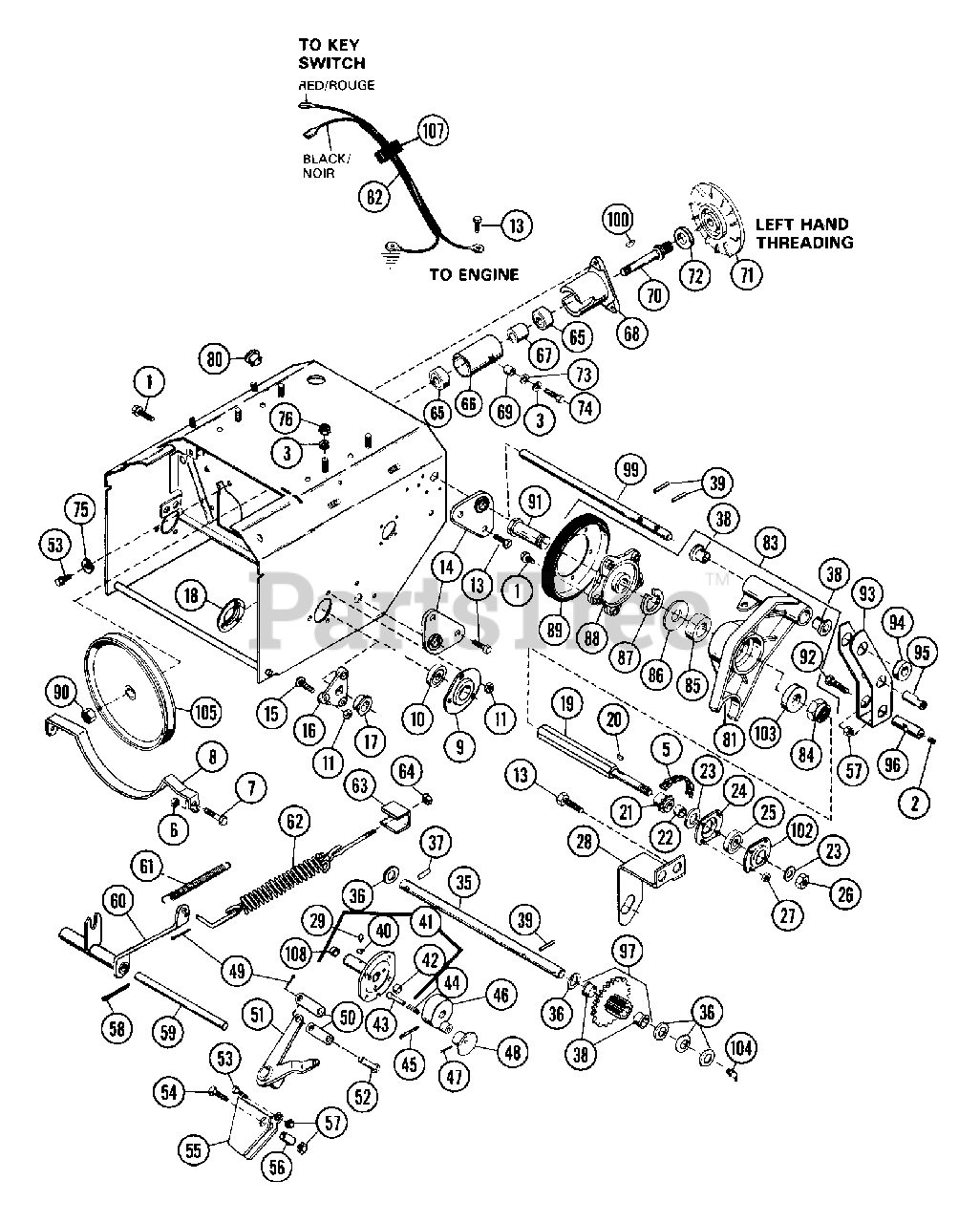

Drive Assembly Parts Diagram

  • Title

1

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

2

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

3

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 01207800

CHAIN
(Superseded to 02477700)

$14.99

$

In Stock, Qty 6

0

6

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 02423600

BELT RETAINER
(Superseded to 02423651)

$22.99

$

Usually ships in 4-12 days

0

9

Ariens 01014200

BEARING FLANGE

Note: (Used Only On Model(s): 924048,49).

$5.99

$

In Stock, Qty 20+

0

10

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

Note: (Used Only On Model(s): 924048,49).

$34.99

$

In Stock, Qty 20+

0

11

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 02407700

SUPPORT, SHAFT

$20.99

$

Usually ships in 4-12 days

0

15

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

Note: (Used Only On Model(s): 924046).

$3.99

$

In Stock, Qty 20+

0

16

Ariens 01202300

SUPPORT, BEARING

Note: (Used Only On Model(s): 924046).

$67.99

$

In Stock, only 4 left!

0

17

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

Note: (Used Only On Model(s): 924046).

$12.99

$

In Stock, Qty 6

0

18

Ariens 00301700

BEARING FLANGE

Note: (Used Only On Model(s): 924048,49).

$17.99

$

In Stock, Qty 9

0

19

Ariens 02433800

HEX SHAFT

$

$

Not available

20

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

21

Ariens 01027600

9 TOOTH SPROCKET

$41.99

$

Usually ships in 4-12 days

0

22

Ariens 02508900

ROLLER

$

$

Not available

23

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 00308500

BEARING FLANGE

$22.99

$

Usually ships in 4-12 days

0

25

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 15

0

26

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.49

$

Usually ships in 4-12 days

0

27

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$0.99

$

In Stock, Qty 8

0

28

Ariens 02433900

CLUTCH STOP

$

$

Not available

29

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

Note: (Used Only On Model(s): 924048,49).

$

$

Not available

35

Ariens 02436700

PINION SHAFT
(Superseded to 52422500)

$

$

Not available

36

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

38

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 18

0

40

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

Note: (Used Only On Model(s): 924048,49).

$2.49

$

Usually ships in 4-12 days

0

41

Ariens 61093800

L H AXLE ASSEMBLY
(Superseded to 51003000)

Note: (Used Only On Model(s): 924048,49).

$180.99

$

In Stock, only 1 left!

0

42

Ariens 05502900

BSHG-SLV .562X.625X.625 BRZ

Note: (Used Only On Model(s): 924048,49).

$13.99

$

In Stock, Qty 9

0

43

Ariens 01037400

PIN

Note: (Used Only On Model(s): 924048,49).

$

$

Not available

44

Ariens 08300700

SG-COMP .028X.34X1.062 WLD75

Note: (Used Only On Model(s): 924048,49).

$

$

Not available

45

Ariens 05804200

PIN-GRV .250X1.75 TP C

Note: (Used Only On Model(s): 924048,49).

$14.99

$

Usually ships in 4-12 days

0

46

Ariens 01037200

LOCKOUT HUB

Note: (Used Only On Model(s): 924048,49).

$85.99

$

Usually ships in 4-12 days

0

47

Ariens 05803200

PIN-ROLL .093X1.00

Note: (Used Only On Model(s): 924048,49).

$0.99

$

Usually ships in 4-12 days

0

48

Ariens 01037500

KNOB

Note: (Used Only On Model(s): 924048,49).

$53.99

$

Usually ships in 4-12 days

0

49

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

50

Ariens 02423300

SHIFT LINK
(Superseded to 02449300)

$

$

Not available

51

Ariens 02423200

LEVER - SHIFT ARM

$51.99

$

Usually ships in 4-12 days

0

52

Ariens 01215100

CLEVIS PIN

$

$

Not available

53

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

54

Ariens 05913600

BLT-HEX .31-18X3.00 PL GR2
(Superseded to 05962500)

$3.99

$

In Stock, only 4 left!

0

55

Ariens 02423100

BRACKET SHIFT LEVER

$

$

Not available

56

Ariens 02411500

SPACER .5 X .33 X 2.4

$

$

Not available

57

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

58

Ariens 06700200

PIN-COTR .09X1.0 PL

$0.99

$

Usually ships in 4-12 days

0

59

Ariens 02406900

ROD, FORK PIVOT

$30.99

$

Usually ships in 4-12 days

0

60

Ariens 02427200

FORK, CLUTCH

$62.99

$

Usually ships in 4-12 days

0

61

Ariens 08309400

SG-TENS .080X.73X3.06 WLD 20

$34.99

$

In Stock, Qty 5

0

62

Ariens 62402700

SPRING ASSEMBLY
(Superseded to 52404700)

$57.99

$

Usually ships in 4-12 days

0

63

Ariens 01054200

ADAPTER SPACER

$

$

Not available

64

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

65

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

66

Ariens 02200200

SPINDLE HOUSING
(Superseded to 52406000)

$206.99

$

Usually ships in 4-12 days

0

67

Ariens 02415500

BEARING SPACER

$4.99

$

Usually ships in 4-12 days

0

68

Ariens 02200300

DRIVE SPINDLE HOUSING
(Superseded to 52406000)

$206.99

$

Usually ships in 4-12 days

0

69

Ariens 00303400

ROLLER

$15.99

$

In Stock, only 2 left!

0

70

Ariens 02407600

SPINDLE

$75.99

$

Usually ships in 4-12 days

0

71

Ariens 01054600

DRIVE PLATE

$163.99

$

Usually ships in 4-12 days

0

72

Ariens 02407100

DRIVE DISC SPACER 1.3X.76X.19

$15.99

$

Usually ships in 4-12 days

0

73

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

74

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

75

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

76

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

80

Ariens 07504000

BUTTON PLUG 1.0

$3.49

$

In Stock, only 1 left!

0

81

Ariens 02444500

CARRIER
(Superseded to 52404600)

$204.99

$

Usually ships in 4-12 days

0

82

Ariens 02216100

SHORTING WIRE

$

$

Not available

83

Ariens 62402200

FRICTION WHEEL ASSEMBLY
(Superseded to 52404600)

$204.99

$

Usually ships in 4-12 days

0

84

Ariens 06508600

NUT-LK-NYL .875-14
(Superseded to 06530500)

$6.99

$

Usually ships in 4-12 days

0

85

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

In Stock, Qty 20+

0

86

Ariens 06407100

WSHR-FL-STL .880X1.250X.062
(Superseded to 06436900)

$2.49

$

In Stock, Qty 7

0

87

Ariens 05702100

RG-RTNG-INT 1.750X.062

$5.99

$

In Stock, only 1 left!

0

88

Ariens 02445400

DISC HUB

$23.99

$

Usually ships in 4-12 days

0

89

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

90

Ariens 06507700

NUT-LK-NYL.625-18 PL
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0

91

Ariens 02445500

SPINDLE HUB

$77.99

$

Usually ships in 4-12 days

0

92

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

93

Ariens 02422800

CLUTCH ENGAGEMENT YOKE
(Superseded to 02422851)

$28.99

$

Usually ships in 4-12 days

0

94

Ariens 02408600

SPACER 1.00 X .64 X .38

$

$

Not available

95

Ariens 02422700

ADAPTER

$11.99

$

Usually ships in 4-12 days

0

96

Ariens 02213500

ROD ADAPTER

$38.99

$

Usually ships in 4-12 days

0

97

Ariens 52400200

PINION AND SPROCKET ASSY.

$105.99

$

Usually ships in 4-12 days

0

99

Ariens 02408100

CARRIER SHAFT

$

$

Not available

100

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

102

Ariens 02414100

BEARING FLANGE

$18.99

$

In Stock, only 1 left!

0

103

Ariens 05512600

BSHG-SLV .882X1.250X.531

$5.99

$

In Stock, only 1 left!

0

104

Ariens 01313600

HYDRAULIC DRIVE FITTING
(Superseded to 07029700)

$11.99

$

Usually ships in 4-12 days

0

105

Ariens 07304900

PLY-V 8.00 X 1.0 W/KEY CLARK

$79.99

$

Usually ships in 4-12 days

0

107

Ariens 06901200

CLAMP

$5.49

$

In Stock, only 1 left!

0

108

Ariens 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 1 left!

0
