924038 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 & Above) HANDLE AND CONTROLS Parts Diagram

24" Snow Blower, 7hp Tecumseh

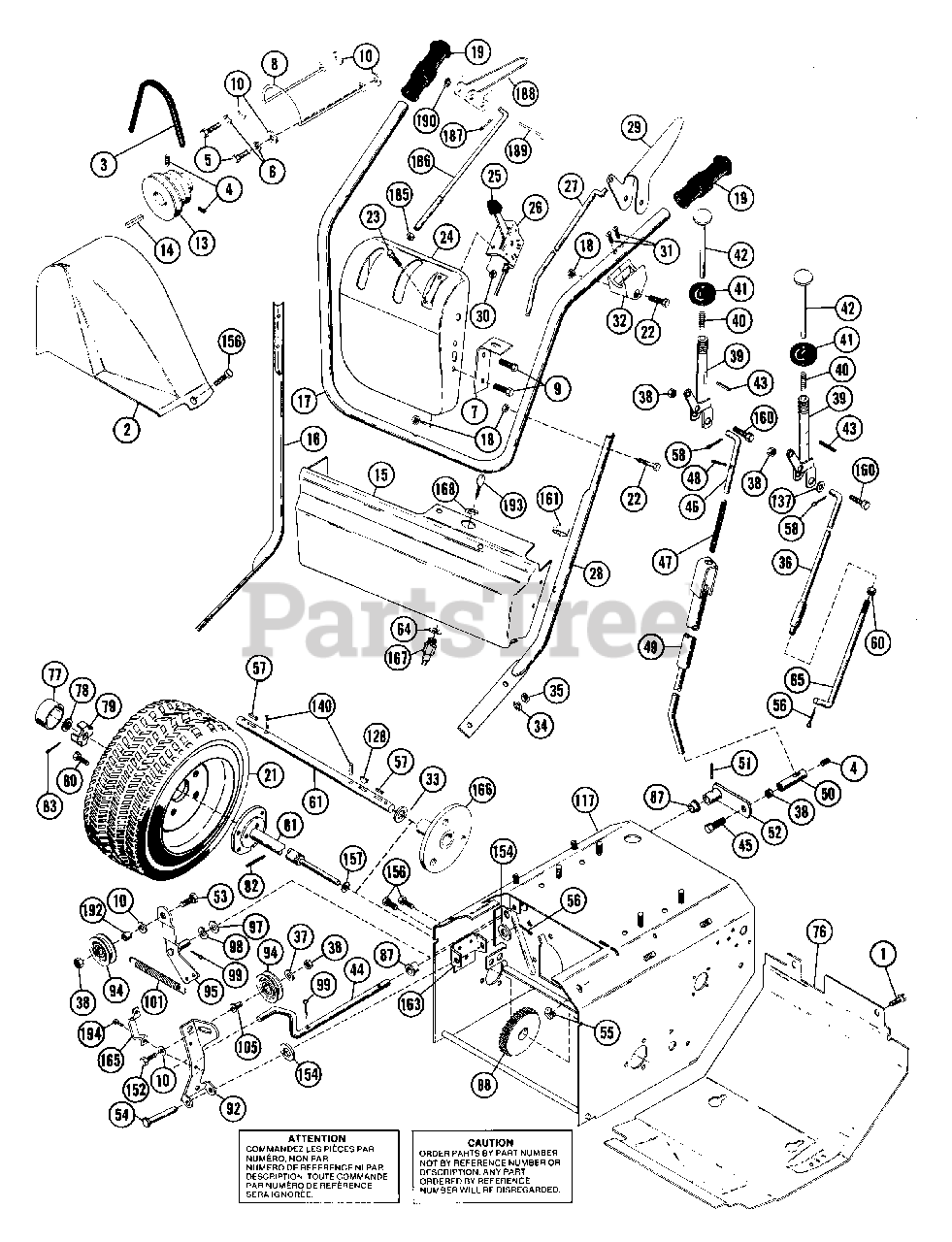

HANDLE AND CONTROLS Parts Diagram

  • Title

1

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

2

Ariens 02440600

BELT COVER

$

$

Not available

3

Ariens 07209800

BELT,3L 33.00 RAW LAM C-L2089
(Superseded to 07232100)

Note: (Used Only On Model(s): 924027,924036,924038,924039).

$37.99

$

In Stock, Qty 6

0

3

Ariens 07206600

V-BELT, 3L-RAW EDGE

Note: (Used Only On Model(s): 924040,924042,924044).

$37.99

$

In Stock, Qty 20+

0

4

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

5

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 02402500

BRACE

$

$

Not available

8

Ariens 02425300

BELT FINGER
(Superseded to 52407700)

$

$

Not available

9

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

10

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 02402100

ENGINE SHEAVE

Note: (Used Only On Model(s): 924027,924036,924038,924039).

$

$

Not available

13

Ariens 02435700

SHEAVE, ENGINE

Note: (Used Only On Model(s): 924040,924042,924044).

$103.99

$

Usually ships in 4-12 days

0

14

Ariens 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 2 left!

0

15

Ariens 02440200

COVER

$

$

Not available

16

Ariens 02426700

R H LOWER HANDLEBAR

$135.99

$

Usually ships in 4-12 days

0

17

Ariens 52401900

UPPER HANDLEBAR ASSEMBLY

Note: (Used Only On Model(s): 924027,924036,924038,924039).

$

$

Not available

17

Ariens 52402500

UPPER HANDLEBAR

Note: (Used Only On Model(s): 924040,924042,924044).

$

$

Not available

18

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

21

Ariens 61096000

TIRE & WHEEL ASSEMBLY CARLISLE
(Superseded to 07116500)

Note: (Used Only On Model(s): 924027,924036,924038,924039).

$

$

Not available

21

Ariens 07104600

TIRE 4.10/3.50X6

Note: (Used Only On Model(s): 924027,924036,924038,924039).

$

$

Not available

21

Ariens 07105000

TUBE

Note: (Used Only On Model(s): 924027,924036,924038,924039).

$11.99

$

Usually ships in 4-12 days

0

21

Ariens 07105200

WHL 6 IN O.D.
(Superseded to 07103800)

Note: (Used Only On Model(s): 924027,924036,924038,924039).

$

$

Not available

21

Ariens 60300200

WHEEL ASSEMBLY
(Superseded to 07100017)

Note: (Used Only On Model(s): 924040,924042).

$136.99

$

Usually ships in 4-12 days

0

21

Ariens 07108200

TIRE
(Superseded to 07100017)

Note: (Used Only On Model(s): 924040,924042).

$136.99

$

Usually ships in 4-12 days

0

21

Ariens 07107600

WHL

Note: (Used Only On Model(s): 924040,924042).

$67.99

$

In Stock, only 1 left!

0

21

Ariens 07103700

TUBE

Note: (Used Only On Model(s): 924040,924042).

$14.99

$

In Stock, only 1 left!

0

21

Ariens 60394800

TERRA TIRE & WHEEL ASSEMBLY
(Superseded to 07115200)

Note: (Used Only On Model(s): 924044).

$

$

Not available

21

Ariens 07102100

TIRE 16X6.50-8 2 PLY

Note: (Used Only On Model(s): 924044).

$79.99

$

Usually ships in 4-12 days

0

21

Ariens 07107700

WHL

Note: (Used Only On Model(s): 924044).

$82.99

$

Usually ships in 4-12 days

0

21

Ariens 07108700

TUBE

Note: (Used Only On Model(s): 924044).

$34.99

$

Usually ships in 4-12 days

0

22

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06101200

SCR-MCH 10-24X.50 SLRH PL
(Superseded to 06117600)

$2.99

$

Usually ships in 4-12 days

0

24

Ariens 52402000

DASH ASSEMBLY

$

$

Not available

25

Ariens 07501900

KNOB

$

$

Not available

26

Ariens 06910500

THROTTLE CONTROL

Note: (Used Only On Model(s): 924036,924038).

$52.99

$

Usually ships in 4-12 days

0

26

Ariens 06908000

THROTTLE CONTROL

Note: (Used Only On Model(s): 924027,924039,924040,924042,924044).

$

$

Not available

27

Ariens 02424400

CLUTCH ROD

Note: (Used Only On Model(s): 924027,924036,924038,924039).

$

$

Not available

27

Ariens 02426500

CLUTCH ROD

Note: (Used Only On Model(s): 924040,924042,924044).

$

$

Not available

28

Ariens 02434200

L H LOWER HANDLE BAR

$

$

Not available

29

Ariens 52201800

CLUTCH HANDLE ASSEMBLY
(Superseded to 53200700)

$59.99

$

Usually ships in 4-12 days

0

30

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

31

Ariens 07403900

SCR-TAP 12-14X1.50 CROVH PL BT
(Superseded to 07411800)

$

$

Not available

32

Ariens 02212900

HANDLE PIVOT

$21.99

$

Usually ships in 4-12 days

0

33

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

Note: (Used Only On Model(s): 924036,924038).

$3.99

$

In Stock, only 1 left!

0

33

Ariens 06403600

WSHR-FL-STL .880X1.380X.062

Note: (Used Only On Model(s): 924040).

$6.99

$

Usually ships in 4-12 days

0

34

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

35

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 02424500

SHIFT ROD UPPER

$

$

Not available

37

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 02424000

CONTROL HANDLE

$

$

Not available

40

Ariens 08301500

SG-COMP ??X.44X?? WLD 10

$5.99

$

Usually ships in 4-12 days

0

41

Ariens 01024800

SHIFT BALL

$

$

Not available

42

Ariens 02424100

SHIFT RELEASE HANDLE

$

$

Not available

43

Ariens 05805600

PIN-ROLL .188X1.75

$1.99

$

Usually ships in 4-12 days

0

44

Ariens 02408300

ACUTATION SHAFT

$41.99

$

Usually ships in 4-12 days

0

45

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 02409600

CLUTCH ROD

$

$

Not available

47

Ariens 08309500

SG-COMP .072X.37X10.3 WLD 40

$5.99

$

Usually ships in 4-12 days

0

48

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

49

Ariens 02424300

ATTACHMENT CLUTCH ROD

$82.99

$

Usually ships in 4-12 days

0

50

Ariens 02213500

ROD ADAPTER

$38.99

$

Usually ships in 4-12 days

0

51

Ariens 05803300

PIN-ROLL .156X.75

$1.99

$

Usually ships in 4-12 days

0

52

Ariens 02415700

LEVER

$

$

Not available

53

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

54

Ariens 02435400

PIN-CLEV .309X2.25

$

$

Not available

55

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.49

$

In Stock, Qty 16

0

56

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

57

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

Note: (Used Only On Model(s): 924036,924038,924040).

$8.49

$

In Stock, Qty 7

0

58

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

60

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$1.99

$

Usually ships in 4-12 days

0

61

Ariens 02439700

AXLE SHAFT

Note: (Used Only On Model(s): 924040).

$

$

Not available

61

Ariens 02432200

AXLE SHAFT

Note: (Used Only On Model(s): 924036,924038).

$184.99

$

Usually ships in 4-12 days

0

64

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

65

Ariens 02424700

ROD LOWER SHIFT

$77.99

$

In Stock, only 1 left!

0

76

Ariens 02440400

BOTTOM COVER

$92.99

$

Usually ships in 4-12 days

0

77

Ariens 00337700

HUB CAP

Note: (Used Only On Model(s): 924036,924038,924040).

$2.99

$

In Stock, Qty 20+

0

77

Ariens 00337700

HUB CAP

Note: (Used Only On Model(s): 924027,924039,924042,924044).

$2.99

$

In Stock, Qty 20+

0

78

Ariens 01036600

PUSHNUT

Note: (Used Only On Model(s): 924027,924039,924042,924044).

$5.99

$

Usually ships in 4-12 days

0

79

Ariens 00337600

SPINDLE CUP
(Superseded to 01238200)

Note: (Used Only On Model(s): 924036,924038,924040).

$

$

Not available

79

Ariens 00337600

SPINDLE CUP
(Superseded to 01238200)

Note: (Used Only On Model(s): 924027,924039,924042,924044).

$

$

Not available

80

Ariens 07003200

BLT-WHL .50-20X.75 GR5 PL
(Superseded to 07416900)

Note: (Used Only On Model(s): 924027,924036,924038,924039).

$13.99

$

In Stock, only 3 left!

0

80

Ariens 07003200

BLT-WHL .50-20X.75 GR5 PL
(Superseded to 07416900)

Note: (Used Only On Model(s): 924040,924042,924044).

$13.99

$

In Stock, only 3 left!

0

81

Ariens 01037000

R H AXLE SHAFT

Note: (Used Only On Model(s): 924027,924039).

$121.99

$

In Stock, only 1 left!

0

81

Ariens 02437100

R H AXLE
(Superseded to 02475700)

Note: (Used Only On Model(s): 924042,924044).

$356.99

$

Usually ships in 4-12 days

0

82

Ariens 05800300

PIN-ROLL .188X1.25

Note: (Used Only On Model(s): 924027,924039).

$0.99

$

In Stock, Qty 20+

0

82

Ariens 05803000

PIN-ROLL .188X1.50

Note: (Used Only On Model(s): 924042,924044).

$0.99

$

In Stock, Qty 20+

0

83

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

Note: (Used Only On Model(s): 924036,924038,924040).

$0.99

$

In Stock, Qty 20+

0

87

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 19

0

88

Ariens 61299900

DIFFERENTIAL ASSEMBLY
(Superseded to 51202000)

Note: (Used Only On Model(s): 924027,924039).

$

$

Not available

88

Ariens 62407300

DIFFERENTIAL ASSEMBLY
(Superseded to 52405300)

Note: (Used Only On Model(s): 924042,924044).

$610.99

$

Usually ships in 4-12 days

0

88

Ariens 01021100

SPUR GEAR, FELLOWS 35T .750 ID

Note: (Used Only On Model(s): 924036,924038).

$90.99

$

Usually ships in 4-12 days

0

88

Ariens 02439600

GEAR, SPUR

Note: (Used Only On Model(s): 924040).

$84.99

$

In Stock, only 1 left!

0

92

Ariens 02434800

ARM, IDLER
(Superseded to 02434851)

$51.99

$

Usually ships in 4-12 days

0

94

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

95

Ariens 02422200

IDLER ARM
(Superseded to 02453751)

$77.99

$

Usually ships in 4-12 days

0

97

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

98

Ariens 01026000

WAVE WASHER .406X.750X.063FH

$2.49

$

Usually ships in 4-12 days

0

99

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

101

Ariens 08309400

SG-TENS .080X.73X3.06 WLD 20

$34.99

$

In Stock, Qty 6

0

105

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

117

Ariens 02427400

FRAME - TRACTOR 6 HP

Note: (Used Only On Model(s): 924036,924038).

$

$

Not available

117

Ariens 02436200

FRAME

Note: (Used Only On Model(s): 924027,924039,924040,924042,924044).

$

$

Not available

128

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

Note: (Used Only On Model(s): 924036,924038).

$2.99

$

In Stock, Qty 20+

0

128

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

Note: (Used Only On Model(s): 924040).

$3.99

$

In Stock, only 2 left!

0

137

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

140

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

Note: (Used Only On Model(s): 924036,924038).

$2.49

$

In Stock, only 2 left!

0

140

Ariens 05800300

PIN-ROLL .188X1.25

Note: (Used Only On Model(s): 924040).

$0.99

$

In Stock, Qty 20+

0

152

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

154

Ariens 06407800

WSHR-FL-STL .380X.626X.033

$

$

Not available

156

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

157

Ariens 06403600

WSHR-FL-STL .880X1.380X.062

Note: (Used Only On Model(s): 924027,924039,924040).

$6.99

$

Usually ships in 4-12 days

0

157

Ariens 06417000

WSHR-FL-STL 1.140X1.718X.134
(Superseded to 06437400)

Note: (Used Only On Model(s): 924042,924044).

$5.99

$

Usually ships in 4-12 days

0

160

Ariens 05905700

BLT-HEX .31-18X2.00 PL GR2
(Superseded to 05957200)

$1.49

$

In Stock, Qty 20+

0

161

Ariens 06901200

CLAMP

$5.49

$

In Stock, only 1 left!

0

163

Ariens 02434700

BRACKET
(Superseded to 02434751)

$38.99

$

Usually ships in 4-12 days

0

165

Ariens 02435300

RETURN CLIP

$29.99

$

Usually ships in 4-12 days

0

166

Ariens 02432300

WHEEL HUB

Note: (Used Only On Model(s): 924036,924038).

$204.99

$

Usually ships in 4-12 days

0

166

Ariens 02439800

WHEEL HUB

Note: (Used Only On Model(s): 924040).

$194.99

$

Usually ships in 4-12 days

0

167

Ariens 01113400

KEY SWITCH
(Superseded to 52406900)

$39.99

$

Usually ships in 4-12 days

0

168

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

$7.99

$

Usually ships in 4-12 days

0

185

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

186

Ariens 02422100

UPPER ROD INTERLOCK

$

$

Not available

187

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

188

Ariens 02214700

HANDLE INTERLOCK

$

$

Not available

189

Ariens 02214800

PIN PIVOT

$

$

Not available

190

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

192

Ariens 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, Qty 10

0

193

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

194

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0
