924029 - Ariens 32" Sno-Thro Attachment (SN: 005401 - 012000) DRIVE TRAIN Parts Diagram

32" Sno-Thro Attachment

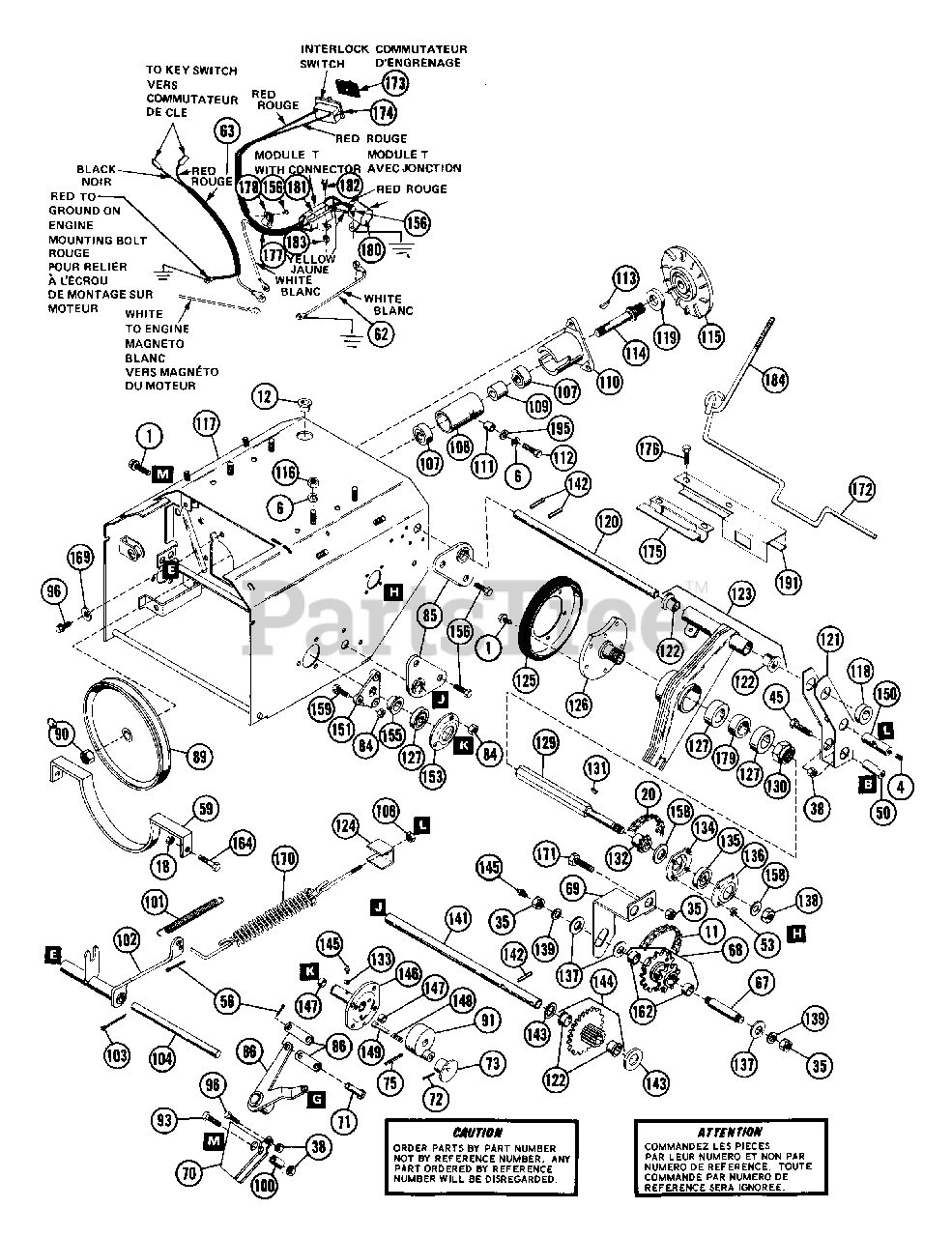

DRIVE TRAIN Parts Diagram

  • Title

1

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

6

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 02407400

PINION CHAIN

$

$

Not available

12

Ariens 07505000

SNAP BUSHING-.437

$

$

Not available

18

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 02407300

IDLER CHAIN

$23.99

$

Usually ships in 4-12 days

0

35

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 02213500

ROD ADAPTER

$38.99

$

Usually ships in 4-12 days

0

53

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$0.99

$

In Stock, Qty 8

0

56

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

59

Ariens 02423600

BELT RETAINER
(Superseded to 02423651)

$22.99

$

Usually ships in 4-12 days

0

61

Ariens 07504000

BUTTON PLUG 1.0

Note: (heater box)

$3.49

$

In Stock, only 1 left!

0

62

Ariens 02427800

WIRE - GROUND

$

$

Not available

63

Ariens 02216100

SHORTING WIRE

$

$

Not available

66

Ariens 02423200

LEVER - SHIFT ARM

$51.99

$

Usually ships in 4-12 days

0

67

Ariens 52400800

REDUCTION SHAFT SERVICE ASSEMB

$

$

Not available

68

Ariens 62402100

SPROCKET ASSEMBLY
(Superseded to 52404500)

$

$

Not available

69

Ariens 02423000

SUPPORT

$

$

Not available

70

Ariens 02423100

BRACKET SHIFT LEVER

$

$

Not available

71

Ariens 01215100

CLEVIS PIN

$

$

Not available

72

Ariens 05803200

PIN-ROLL .093X1.00

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$0.99

$

Usually ships in 4-12 days

0

73

Ariens 01037500

KNOB

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$53.99

$

Usually ships in 4-12 days

0

75

Ariens 05804200

PIN-GRV .250X1.75 TP C

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$14.99

$

Usually ships in 4-12 days

0

84

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

85

Ariens 02407700

SUPPORT, SHAFT

$20.99

$

Usually ships in 4-12 days

0

86

Ariens 02423300

SHIFT LINK
(Superseded to 02449300)

$

$

Not available

89

Ariens 07304900

PLY-V 8.00 X 1.0 W/KEY CLARK

Note: (Used Only On Model(s): 924024,924025).

$79.99

$

Usually ships in 4-12 days

0

89

Ariens 07306300

PLY-V 6.00 X .63 W/KEY CLARK

Note: (Used Only On Model(s): 924032,924026,924027).

$

$

Not available

90

Ariens 06507700

NUT-LK-NYL.625-18 PL
(Superseded to 06530300)

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$3.99

$

In Stock, only 2 left!

0

91

Ariens 01037200

LOCKOUT HUB

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$85.99

$

Usually ships in 4-12 days

0

93

Ariens 05913600

BLT-HEX .31-18X3.00 PL GR2
(Superseded to 05962500)

$3.99

$

In Stock, only 4 left!

0

96

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

100

Ariens 02411500

SPACER .5 X .33 X 2.4

$

$

Not available

101

Ariens 08309400

SG-TENS .080X.73X3.06 WLD 20

$34.99

$

In Stock, Qty 5

0

102

Ariens 02427200

FORK, CLUTCH

$62.99

$

Usually ships in 4-12 days

0

103

Ariens 06700200

PIN-COTR .09X1.0 PL

$0.99

$

Usually ships in 4-12 days

0

104

Ariens 02406900

ROD, FORK PIVOT

$30.99

$

Usually ships in 4-12 days

0

106

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

107

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

108

Ariens 02200200

SPINDLE HOUSING
(Superseded to 52406000)

$206.99

$

Usually ships in 4-12 days

0

109

Ariens 02415500

BEARING SPACER

$4.99

$

Usually ships in 4-12 days

0

110

Ariens 02200300

DRIVE SPINDLE HOUSING
(Superseded to 52406000)

$206.99

$

Usually ships in 4-12 days

0

111

Ariens 00303400

ROLLER

$15.99

$

In Stock, only 2 left!

0

112

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

113

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

114

Ariens 02407600

SPINDLE

$75.99

$

Usually ships in 4-12 days

0

115

Ariens 01054600

DRIVE PLATE

$163.99

$

Usually ships in 4-12 days

0

116

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

117

Ariens 02427400

FRAME - TRACTOR 6 HP

Note: (Used Only On Model(s): 924032).

$

$

Not available

117

Ariens 02427500

FRAME - TRACTOR
(Superseded to 02436200)

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$

$

Not available

118

Ariens 02408600

SPACER 1.00 X .64 X .38

$

$

Not available

119

Ariens 02407100

DRIVE DISC SPACER 1.3X.76X.19

$15.99

$

Usually ships in 4-12 days

0

120

Ariens 02408100

CARRIER SHAFT

$

$

Not available

121

Ariens 02422800

CLUTCH ENGAGEMENT YOKE
(Superseded to 02422851)

$28.99

$

Usually ships in 4-12 days

0

122

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

$1.49

$

In Stock, Qty 20+

0

123

Ariens 52401100

DISC CARRIER SERVICE ASSEMBLY
(Superseded to 52404600)

$204.99

$

Usually ships in 4-12 days

0

124

Ariens 01054200

ADAPTER SPACER

$

$

Not available

125

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

126

Ariens 02407500

FRICTION DISC HUB

$193.99

$

Usually ships in 4-12 days

0

127

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

Note: (Used Only On Model(s): 924024,924025).

$34.99

$

In Stock, Qty 20+

0

127

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

Note: (Used Only On Model(s): 924032,924026,924027).

$34.99

$

In Stock, Qty 20+

0

129

Ariens 02404500

HEX SHAFT

$366.99

$

Usually ships in 4-12 days

0

130

Ariens 06508600

NUT-LK-NYL .875-14
(Superseded to 06530500)

$6.99

$

Usually ships in 4-12 days

0

131

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

132

Ariens 01027600

9 TOOTH SPROCKET

$41.99

$

Usually ships in 4-12 days

0

133

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$2.49

$

Usually ships in 4-12 days

0

134

Ariens 00308500

BEARING FLANGE

$22.99

$

Usually ships in 4-12 days

0

135

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 15

0

136

Ariens 02414100

BEARING FLANGE

$18.99

$

In Stock, only 1 left!

0

137

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

138

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.49

$

Usually ships in 4-12 days

0

139

Ariens 06301400

WSHR-LK .375X.130
(Superseded to 06306700)

$3.99

$

In Stock, only 1 left!

0

141

Ariens 02408000

PINION SHAFT

$101.99

$

Usually ships in 4-12 days

0

142

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 18

0

143

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

144

Ariens 52400200

PINION AND SPROCKET ASSY.

$105.99

$

Usually ships in 4-12 days

0

145

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$

$

Not available

145

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

Note: (Used Only On Model(s): 924032).

$

$

Not available

146

Ariens 62401200

L. H. AXLE ASSEM
(Superseded to 52404400)

Note: (Used Only On Model(s): 924024,924025,924032).

$147.99

$

Usually ships in 4-12 days

0

146

Ariens 61093800

L H AXLE ASSEMBLY
(Superseded to 51003000)

Note: (Used Only On Model(s): 924026,924027).

$180.99

$

In Stock, only 1 left!

0

147

Ariens 05502900

BSHG-SLV .562X.625X.625 BRZ

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$13.99

$

In Stock, Qty 9

0

148

Ariens 01037400

PIN

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$

$

Not available

149

Ariens 08300700

SG-COMP .028X.34X1.062 WLD75

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$

$

Not available

150

Ariens 02422700

ADAPTER

$11.99

$

Usually ships in 4-12 days

0

151

Ariens 01202300

SUPPORT, BEARING

Note: (Used Only On Model(s): 924032,924026,924027).

$67.99

$

In Stock, only 4 left!

0

153

Ariens 01014200

BEARING FLANGE

Note: (Used Only On Model(s): 924024,924025).

$5.99

$

In Stock, Qty 20+

0

155

Ariens 05503000

BSHG-FLG.875X1X.625X1.250 BR

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$10.99

$

In Stock, Qty 15

0

155

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

Note: (Used Only On Model(s): 924032).

$12.99

$

In Stock, Qty 6

0

156

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

158

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

159

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

Note: (Used Only On Model(s): 924032,924026,924027).

$3.99

$

In Stock, Qty 20+

0

162

Ariens 05504000

BSHG-SLV .500X.625X.500 BR

$13.99

$

In Stock, only 2 left!

0

164

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

169

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

170

Ariens 62402700

SPRING ASSEMBLY
(Superseded to 52404700)

$57.99

$

Usually ships in 4-12 days

0

171

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

172

Ariens 02425100

SWITCH ACTUATOR

$

$

Not available

173

Ariens 07504500

SWITCH BOOT

$

$

Not available

174

Ariens 02517200

SWITCH

$41.99

$

Usually ships in 4-12 days

0

175

Ariens 02422000

ROD RETAINER

$

$

Not available

176

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

177

Ariens 02216700

WIRING HARNESS

$

$

Not available

178

Ariens 06906600

CLIP

$

$

Not available

179

Ariens 02433000

SPACER

$

$

Not available

180

Ariens 52401000

MODULE T SERVICE ASSEMBLY

$

$

Not available

181

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

$

$

Not available

182

Ariens 05909700

BLT-HEX 10-24X.38 PL GR2

$

$

Not available

183

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

184

Ariens 02421900

LOWER ROD INTERLOCK

Note: (Used Only On Model(s): 924032,924026,924027).

$

$

Not available

184

Ariens 02215200

LOWER ROD INTERLOCK

Note: (Used Only On Model(s): 924024,924025).

$

$

Not available

191

Ariens 02424600

SWITCH RETAINER

$

$

Not available

195

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0
