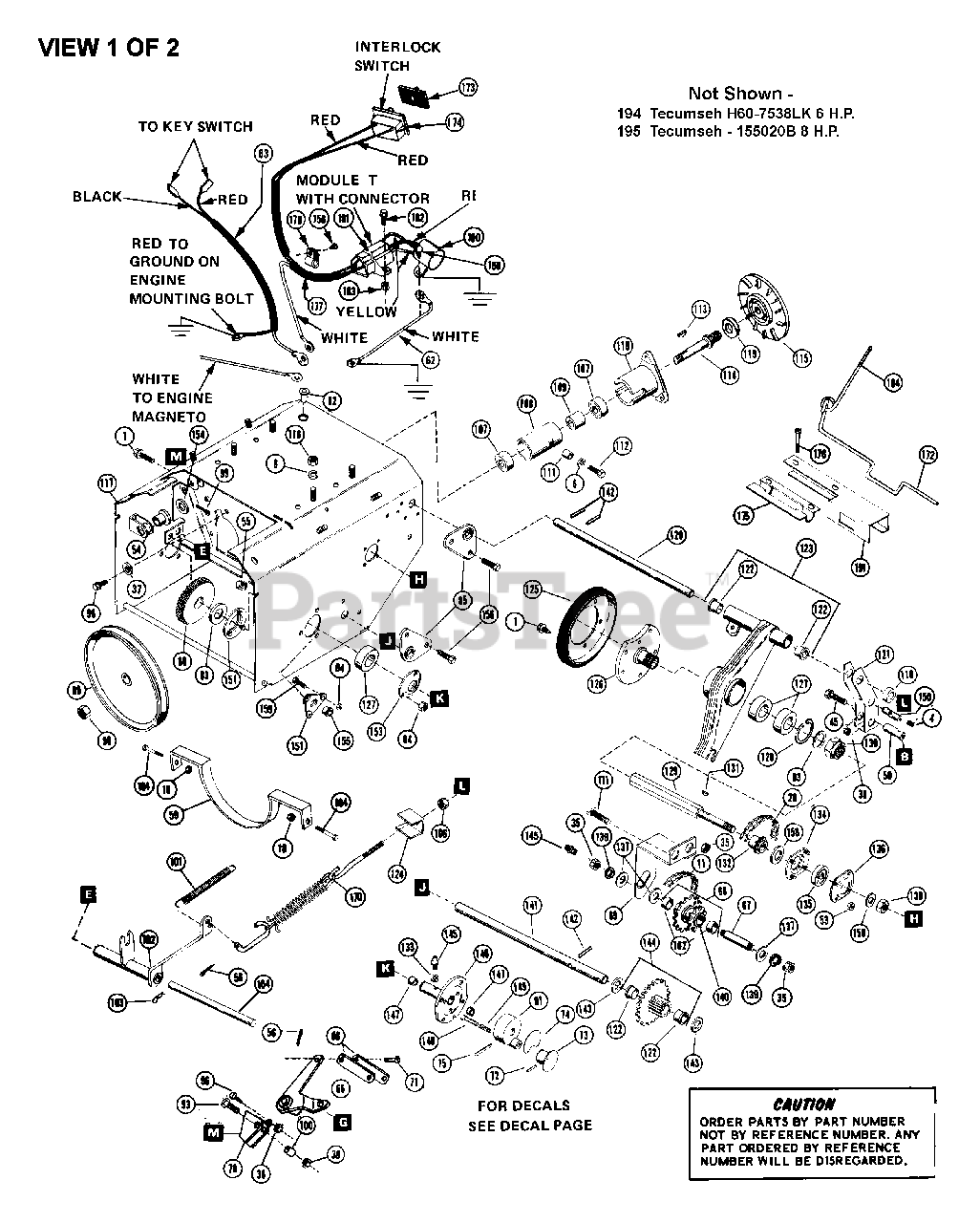

924026 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 - 008000) TRACTOR PARTS (CONTINUED) Parts Diagram

24" Snow Blower, 8hp Tecumseh

TRACTOR PARTS (CONTINUED) Parts Diagram

  • Title

101

Ariens 08309400

SG-TENS .080X.73X3.06 WLD 20

$34.99

$

In Stock, Qty 6

0

102

Ariens 02427200

FORK, CLUTCH

$62.99

$

Usually ships in 4-12 days

0

103

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

104

Ariens 02406900

ROD, FORK PIVOT

$30.99

$

Usually ships in 4-12 days

0

105

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

106

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

107

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

108

Ariens 02200200

SPINDLE HOUSING
(Superseded to 52406000)

$206.99

$

Usually ships in 4-12 days

0

109

Ariens 02415500

BEARING SPACER

$4.99

$

Usually ships in 4-12 days

0

110

Ariens 02200300

DRIVE SPINDLE HOUSING
(Superseded to 52406000)

$206.99

$

Usually ships in 4-12 days

0

111

Ariens 00303400

ROLLER

$15.99

$

In Stock, only 2 left!

0

112

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

113

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

114

Ariens 02407600

SPINDLE

$75.99

$

Usually ships in 4-12 days

0

115

Ariens 01054600

DRIVE PLATE

$163.99

$

Usually ships in 4-12 days

0

116

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

117

Ariens 02427400

FRAME - TRACTOR 6 HP

Note: (Used Only On Model(s): 924022,924023).

$

$

Not available

117

Ariens 02427500

FRAME - TRACTOR
(Superseded to 02436200)

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$

$

Not available

118

Ariens 02408600

SPACER 1.00 X .64 X .38

$

$

Not available

119

Ariens 02407100

DRIVE DISC SPACER 1.3X.76X.19

$15.99

$

Usually ships in 4-12 days

0

120

Ariens 02408100

CARRIER SHAFT

$

$

Not available

121

Ariens 02422800

CLUTCH ENGAGEMENT YOKE
(Superseded to 02422851)

$28.99

$

Usually ships in 4-12 days

0

122

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

$1.49

$

In Stock, Qty 20+

0

123

Ariens 52401100

DISC CARRIER SERVICE ASSEMBLY
(Superseded to 52404600)

$204.99

$

In Stock, only 1 left!

0

124

Ariens 01054200

ADAPTER SPACER

$

$

Not available

125

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

126

Ariens 02407500

FRICTION DISC HUB

$193.99

$

Usually ships in 4-12 days

0

127

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

Note: (Used Only On Model(s): 924024,924025).

$34.99

$

Usually ships in 4-12 days

0

127

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

Note: (Used Only On Model(s): 924022,924023,924026,924027).

$34.99

$

Usually ships in 4-12 days

0

128

Ariens 05702100

RG-RTNG-INT 1.750X.062

$5.99

$

In Stock, only 1 left!

0

129

Ariens 02404500

HEX SHAFT

$366.99

$

Usually ships in 4-12 days

0

130

Ariens 06508600

NUT-LK-NYL .875-14
(Superseded to 06530500)

$6.99

$

Usually ships in 4-12 days

0

131

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

132

Ariens 01027600

9 TOOTH SPROCKET

$41.99

$

Usually ships in 4-12 days

0

133

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

134

Ariens 00308500

BEARING FLANGE

$22.99

$

In Stock, only 1 left!

0

135

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

136

Ariens 02414100

BEARING FLANGE

$18.99

$

In Stock, only 1 left!

0

137

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

138

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.49

$

Usually ships in 4-12 days

0

139

Ariens 06301400

WSHR-LK .375X.130
(Superseded to 06306700)

$3.99

$

In Stock, only 1 left!

0

140

Ariens 02405500

REDUCTION SPROCKET
(Superseded to 52404500)

$

$

Not available

141

Ariens 02408000

PINION SHAFT

$101.99

$

Usually ships in 4-12 days

0

142

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 20+

0

143

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

144

Ariens 52400200

PINION AND SPROCKET ASSY.

$105.99

$

Usually ships in 4-12 days

0

145

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

146

Ariens 62401200

L. H. AXLE ASSEM
(Superseded to 52404400)

Note: (Used Only On Model(s): 924024,924025).

$147.99

$

Usually ships in 4-12 days

0

146

Ariens 61093800

L H AXLE ASSEMBLY
(Superseded to 51003000)

Note: (Used Only On Model(s): 924022,924023,924026,924027).

$180.99

$

In Stock, only 1 left!

0

147

Ariens 05502900

BSHG-SLV .562X.625X.625 BRZ

$13.99

$

In Stock, Qty 11

0

148

Ariens 01037400

PIN

$

$

Not available

149

Ariens 08300700

SG-COMP .028X.34X1.062 WLD75

$

$

Not available

150

Ariens 02422700

ADAPTER

$11.99

$

Usually ships in 4-12 days

0

151

Ariens 00301700

BEARING FLANGE

Note: (Used Only On Model(s): 924024,924025).

$17.99

$

In Stock, Qty 17

0

151

Ariens 01202300

SUPPORT, BEARING

Note: (Used Only On Model(s): 924022,924023,924026,924027).

$67.99

$

In Stock, only 4 left!

0

152

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

153

Ariens 01014200

BEARING FLANGE

Note: (Used Only On Model(s): 924024,924025).

$5.99

$

In Stock, Qty 20+

0

154

Ariens 06407800

WSHR-FL-STL .380X.626X.033

$

$

Not available

155

Ariens 05503000

BSHG-FLG.875X1X.625X1.250 BR

Note: (Used Only On Model(s): 924022,924023,924026,924027).

$10.99

$

In Stock, Qty 15

0

156

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

157

Ariens 06403600

WSHR-FL-STL .880X1.380X.062

$6.99

$

Usually ships in 4-12 days

0

158

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

159

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

Note: (Used Only On Model(s): 924022,924023,924026,924027).

$3.99

$

In Stock, Qty 20+

0

160

Ariens 05905700

BLT-HEX .31-18X2.00 PL GR2
(Superseded to 05957200)

$1.49

$

In Stock, Qty 20+

0

161

Ariens 06901200

CLAMP

$5.49

$

In Stock, only 1 left!

0

162

Ariens 05504000

BSHG-SLV .500X.625X.500 BR

$13.99

$

In Stock, only 2 left!

0

163

Ariens 02422500

BRACKET

$

$

Not available

164

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

165

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

166

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

167

Ariens 01113700

SPARK PLUG SHIELD
(Superseded to 52406900)

$39.99

$

Usually ships in 4-12 days

0

168

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

Note: (SPECIAL)

$7.99

$

Usually ships in 4-12 days

0

170

Ariens 62402700

SPRING ASSEMBLY
(Superseded to 52404700)

$57.99

$

Usually ships in 4-12 days

0

171

Ariens 07402200

SCR-TAP .375-16X.75 HWH PL TR
(Superseded to 07415400)

$1.49

$

In Stock, Qty 20+

0

172

Ariens 02425100

SWITCH ACTUATOR

$

$

Not available

173

Ariens 07504500

SWITCH BOOT

$

$

Not available

174

Ariens 02517200

SWITCH

$41.99

$

Usually ships in 4-12 days

0

175

Ariens 02422000

ROD RETAINER

$

$

Not available

176

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

$2.49

$

Usually ships in 4-12 days

0

177

Ariens 02216700

WIRING HARNESS

$

$

Not available

178

Ariens 06906600

CLIP

$

$

Not available

180

Ariens 52401000

MODULE T SERVICE ASSEMBLY

$

$

Not available

181

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

$

$

Not available

182

Ariens 05909700

BLT-HEX 10-24X.38 PL GR2

$

$

Not available

183

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

184

Ariens 02421900

LOWER ROD INTERLOCK

Note: (Used Only On Model(s): 924022,924023,924026,924027).

$

$

Not available

184

Ariens 02215200

LOWER ROD INTERLOCK

Note: (Used Only On Model(s): 924024,924025).

$

$

Not available

185

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

186

Ariens 02422100

UPPER ROD INTERLOCK

$

$

Not available

187

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

188

Ariens 02214700

HANDLE INTERLOCK

$

$

Not available

189

Ariens 02214800

PIN PIVOT

$

$

Not available

190

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

191

Ariens 02424600

SWITCH RETAINER

$

$

Not available

192

Ariens 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, Qty 10

0

193

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

194

Tecumseh H60-7538LK 6 H.P.

Note: (Used Only On Model(s): 924022,924023).

$

$

Not available

195

Tecumseh - 155020B 8 H.P.

Note: (Used Only On Model(s): 924024,924025,924026,924027).

$

$

Not available
