924 SBE (961939922-01) - Husqvarna 24" Snow Blower (2007-09) Handles Parts Diagram

24" Snow Blower

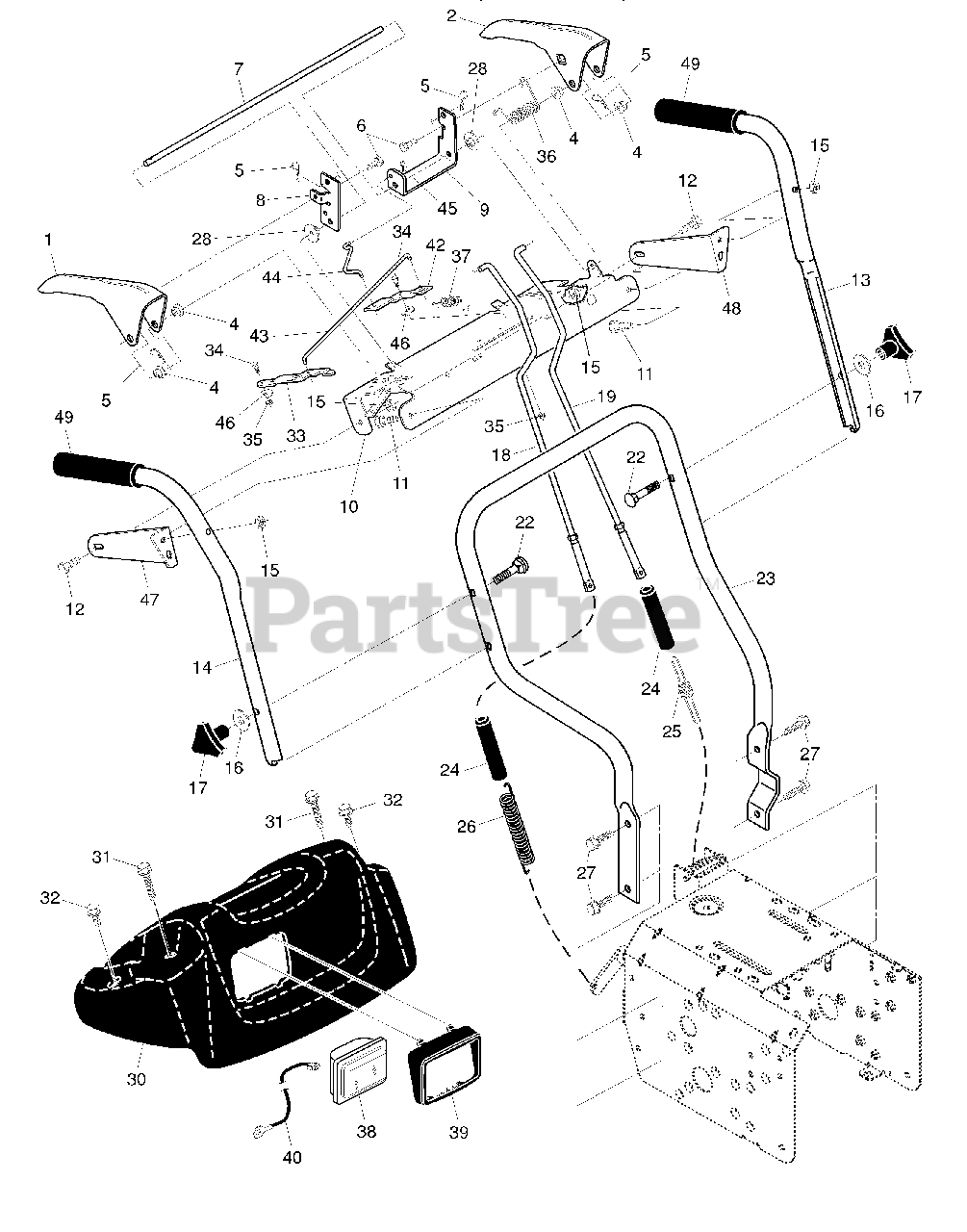

Handles Parts Diagram

  • Title

1

Husqvarna 532407649

Lever, Auger Control, RH
(Superseded to 532411423)

$27.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532407648

Lever, Traction Drive Control, LH
(Superseded to 532405783)

$

$

Not available

4

Husqvarna 532178888

Bushing, Flange

$

$

Not available

5

Husqvarna 532169675

Retainer, Hairpin

$7.49

$

In Stock, only 1 left!

0

6

Husqvarna 817060408

Screw, Hex Head

$5.99

$

In Stock, only 2 left!

0

7

Husqvarna 532178652

Rod, Interlock

$11.99

$

In Stock, only 1 left!

0

8

Husqvarna 532199576

Arm, Impeller Rod
(Superseded to 532429098)

$

$

Not available

9

Husqvarna 532199575

Arm, Traction Rod
(Superseded to 532196334)

$

$

Not available

10

Husqvarna 532199531

Panel, Control
(Superseded to 532196619)

$18.99

$

Usually ships in 3-10 days

0

11

Husqvarna 874780524

Screw, Hex Head 5/16-18 x 1-1/2
(Superseded to 539976935)

$

$

Not available

12

Husqvarna 874780512

Screw, Hex Head 5/16-18 x 1-3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532415236

Handle Tube, LH
(Superseded to 532414517)

$54.99

$

In Stock, only 1 left!

0

14

Husqvarna 532415237

Handle Tube, RH
(Superseded to 532414516)

$60.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532751153

Nut, Lock 5/16-18

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 819131316

Washer, Flat 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532178899

Knob, Handle

$8.99

$

In Stock, only 2 left!

0

18

Husqvarna 532180480

Rod, Auger Control

$

$

Not available

19

Husqvarna 532180481

Rod, Traction Control

$27.99

$

Usually ships in 3-10 days

0

22

Husqvarna 872120618

Bolt, Carriage 3/8-16 x 2-1/4

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532184087

Handle Tube, Lower

$

$

Not available

24

Husqvarna 532180447

Sleeve, Spring

$6.99

$

In Stock, only 2 left!

0

25

Husqvarna 532180926

Spring, Traction Drive

$7.49

$

In Stock, only 4 left!

0

26

Husqvarna 532178669

Spring, Auger Control

$9.49

$

In Stock, only 4 left!

0

27

Husqvarna 817000616

Screw, Hex Head 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

28

Husqvarna 532412680

Spacer, Control Lever

$

$

Not available

30

Husqvarna 532183346

Console, Panel

$36.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532175262

Screw, Hex Head, Tapping #10-24 x 1-1/4

$7.49

$

In Stock, only 1 left!

0

32

Husqvarna 532184471

Screw, Hex Head, Tapping #10-24 x 1/2

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532199577

Latch, Interlock
(Superseded to 532196335)

$13.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532401369

Bolt, Shoulder

$2.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532068038

Nut, Lock 1/4-20
(Superseded to 873850400)

$

$

Not available

36

Husqvarna 532178831

Spring, Torsion
(Superseded to 532443215)

$6.49

$

In Stock, only 1 left!

0

37

Husqvarna 532193885

Spring, Interlock

$6.49

$

In Stock, only 1 left!

0

38

Husqvarna 532180927

Headlight, Flood

Note: Includes Bulb

$68.99

$

In Stock, only 1 left!

0

39

Husqvarna 532178668

Bezel, Headlight

$7.49

$

In Stock, Qty 5

0

40

Husqvarna 532178770

Harness, Headlight

Note: Flood

$15.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532199578

Lever, Interlock
(Superseded to 532196336)

$2.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532199638

Rod, Latch, Interlock

$7.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532196338

Rod, Arm, Interlock

$5.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532700279

Clip

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532057079

Washer, Friction

$6.49

$

In Stock, Qty 10

0

47

Husqvarna 532196943

Mounting Bracket, Handle, RH
(Superseded to 532429149)

$4.99

$

In Stock, only 1 left!

0

48

Husqvarna 532196944

Mounting Bracket, Handle, LH
(Superseded to 532429148)

$

$

Not available

49

Husqvarna 532199513

Grip, Handle

$4.99

$

In Stock, only 1 left!

0
