924 SB XLS (961930032-00) - Husqvarna 24" Snow Blower (2008-08) Control Rods Parts Diagram

24" Snow Blower

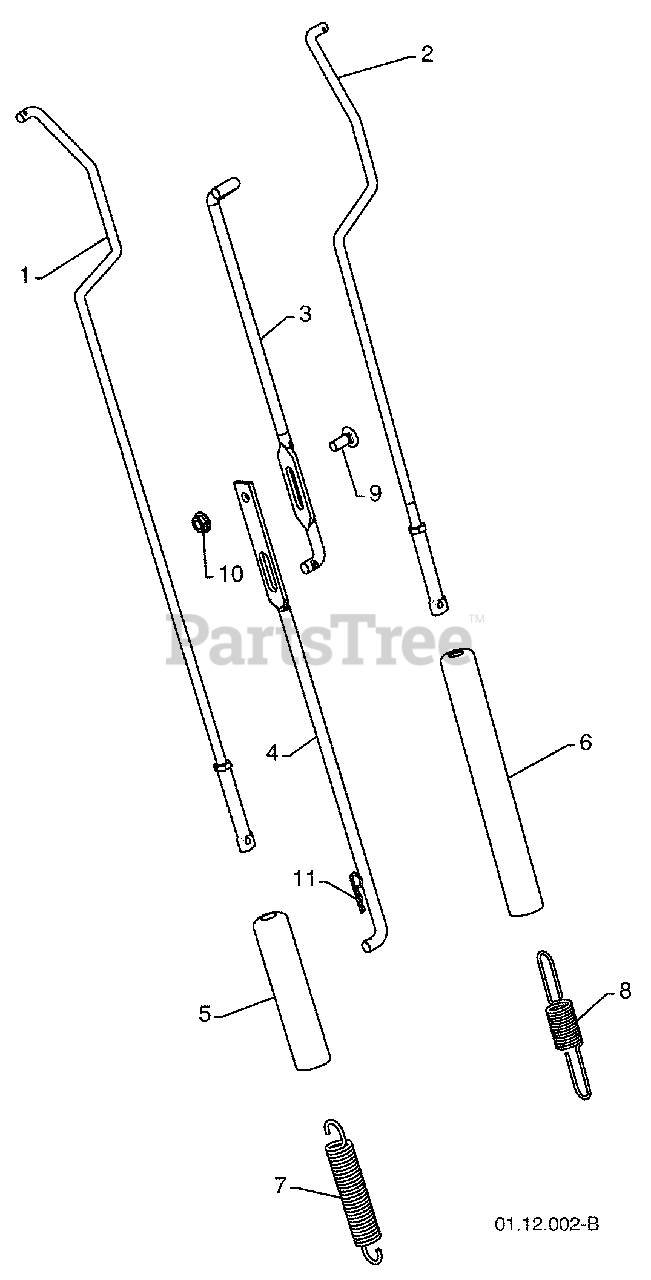

Control Rods Parts Diagram

  • Title
1

Husqvarna 532421763

IMPELLER ROD ASSEMBLY
(Superseded to 532193447)

$40.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180485

TRACTION ROD ASSEMBLY

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187782

SHIFTER ROD TOP

$24.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532187784

SHIFTER ROD BOTTOM

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532180447

SPRING SLEEVE

$6.99

$

In Stock, only 2 left!

0

6

Husqvarna 532192091

SPRING SLEEVE

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532178669

IMPELLER SPRING

$9.49

$

In Stock, only 4 left!

0

8

Husqvarna 532180926

TRACTION SPRING

$7.49

$

In Stock, only 4 left!

0

9

Husqvarna 872270506

CARRIAGE BOLT 5/16-18 X .750
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

10

Husqvarna 532155377

NUT 5/16-18

$6.49

$

Usually ships in 3-10 days

0

11

$7.49

$

In Stock, only 1 left!

0
