924 SB (961930063-00) - Husqvarna 24" Snow Blower (2010-04) Control Panel / Discharge Chute Parts Diagram

24" Snow Blower

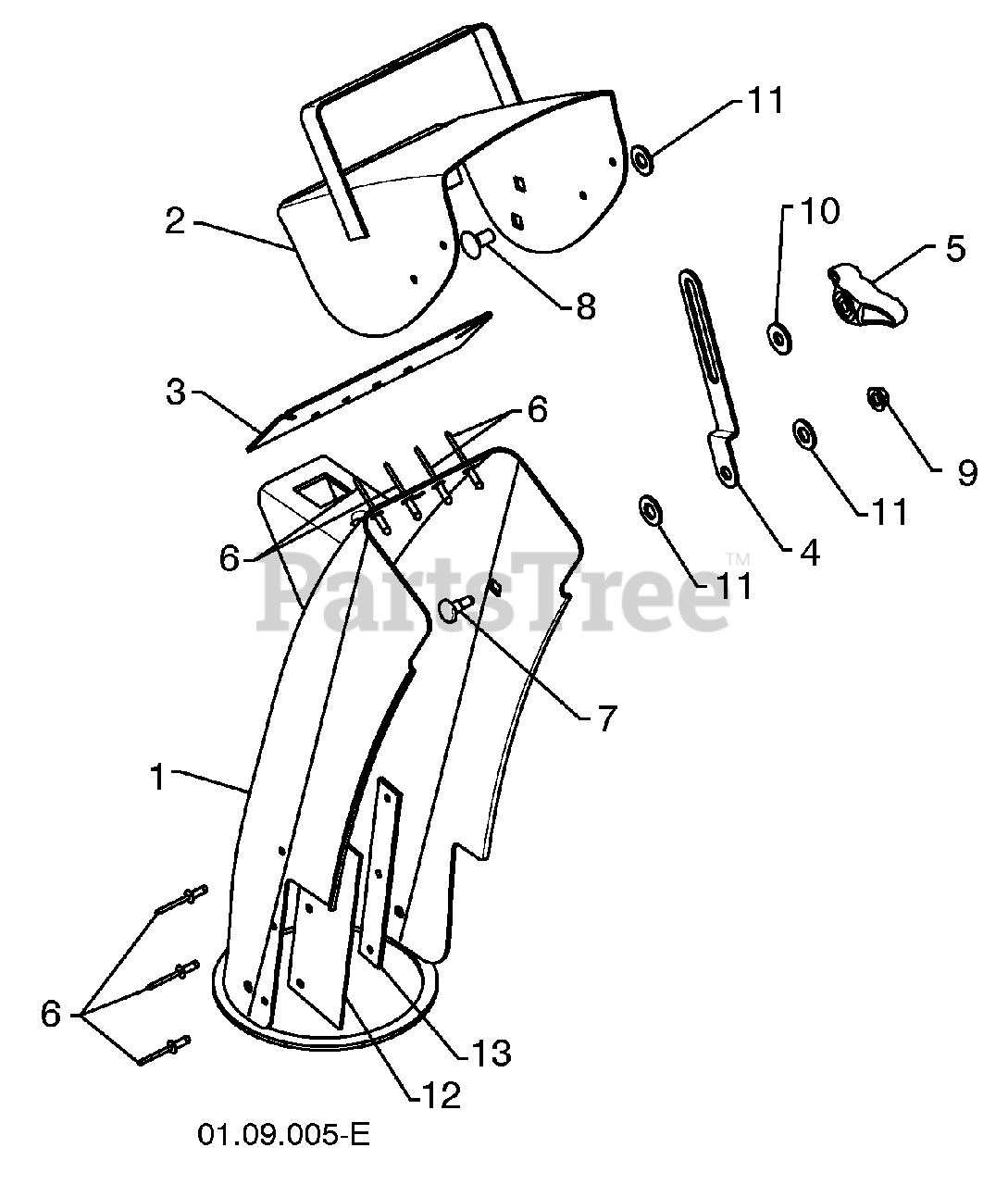

Control Panel / Discharge Chute Parts Diagram

  • Title
1

Husqvarna 532435791

CHUTE WELDMENT
(Superseded to 532444041)

$78.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532184113

DEFLECTOR WELDMENT
(Superseded to 588077802)

$120.99

$

In Stock, only 1 left!

0

3

Husqvarna 532420325

DEFLECTOR SEAL

$7.49

$

Usually ships in 3-10 days

0

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532191998

KNOB BLACK
(Superseded to 532191997)

$

$

Not available

6

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532185600

SHOULDER BOLT 1/4-20 X .704

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 872270505

CARRIAGE BOLT 5/16-18 X .625
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532191730

NUT 1/4-20

$7.49

$

In Stock, Qty 5

0

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 532179246

PLASTIC WASHER

$7.49

$

In Stock, Qty 6

0

12

Husqvarna 532430324

CHUTE SNOW SHIELD

$20.99

$

In Stock, only 3 left!

0

13

Husqvarna 532435776

SHIELD RETAINER STRAP

$7.99

$

Usually ships in 3-10 days

0
