924 SB (961930035-01) - Husqvarna 24" Snow Blower (2008-10) Control Rods Parts Diagram

24" Snow Blower

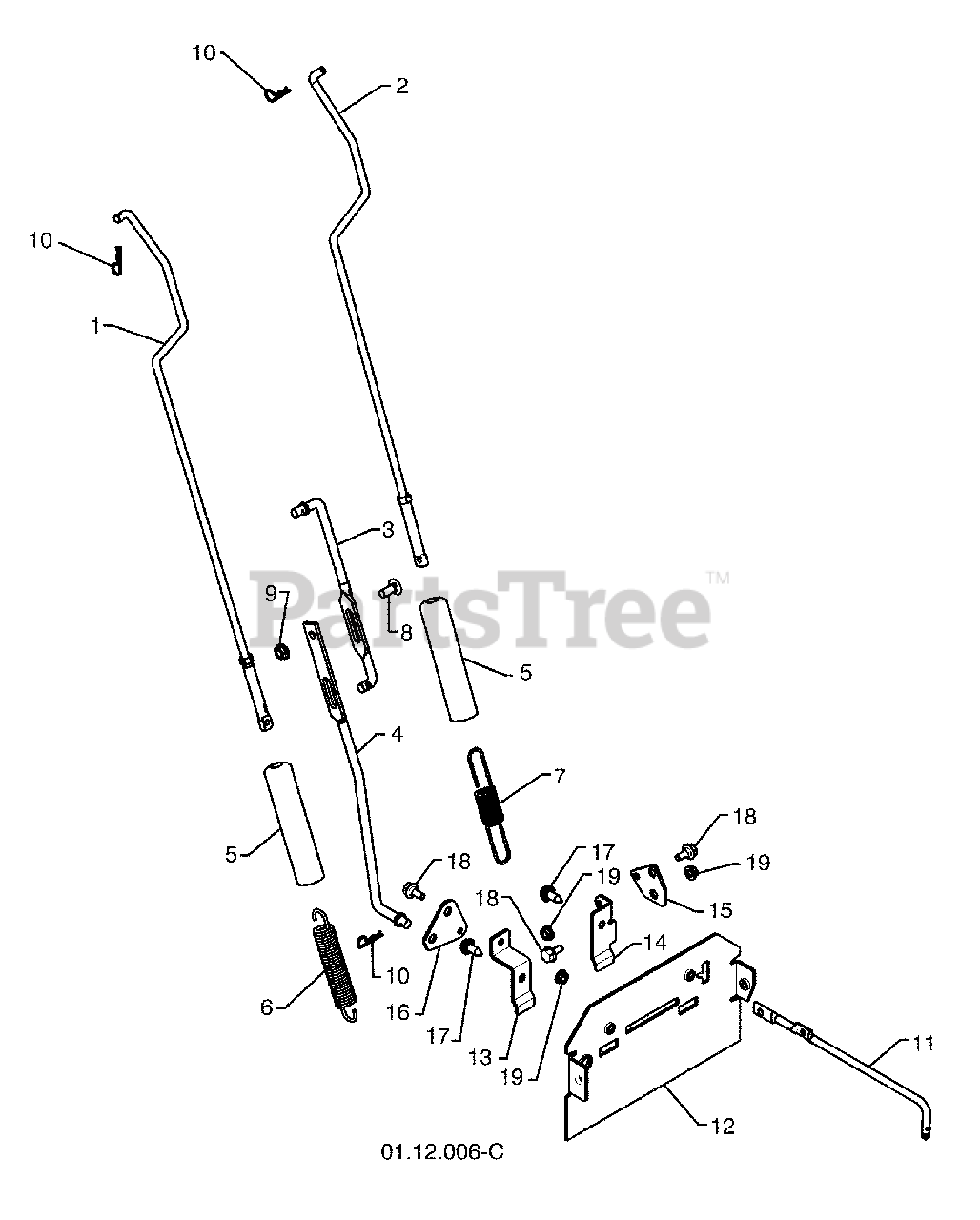

Control Rods Parts Diagram

  • Title

1

Husqvarna 532180480

IMPELLER ROD ASSEMBLY

$

$

Not available

2

Husqvarna 532405740

TRACTION ROD ASSEMBLY

$

$

Not available

3

Husqvarna 532180445

SHIFTER ROD TOP

$39.99

$

In Stock, Qty 5

0

4

Husqvarna 532187716

SHIFTER ROD BOTTOM

$

$

Not available

5

Husqvarna 532180447

SPRING SLEEVE

$6.99

$

In Stock, only 2 left!

0

6

Husqvarna 532178669

IMPELLER SPRING

$9.49

$

In Stock, Qty 5

0

7

Husqvarna 532180926

TRACTION SPRING

$7.49

$

In Stock, Qty 7

0

8

Husqvarna 872270506

CARRIAGE BOLT 5/16--18 X .750
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 352155377

NUT 5/16--18

$

$

Currently unavailable

10

Husqvarna 532169675

RETAINER

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 532403300

CLUTCH ROD

$12.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532416921

REAR PLATE

$

$

Not available

13

Husqvarna 532415433

SHIFTER PLATE BRACKET

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 532416864

CLUTCH PLATE BRACKET

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532415435

CLUTCH PLATE

$2.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532415450

SHIFTER PLATE

$7.99

$

In Stock, only 3 left!

0

17

Husqvarna 532150078

BOLT 5/16--18 X .750
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532402881

SHOULDER BOLT 1/4--20 X .500

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532191730

NUT 1/4-20

$7.49

$

In Stock, Qty 5

0
