924 SB (961930026-00) - Husqvarna 24" Snow Blower (2008-08) Drive Parts Diagram

24" Snow Blower

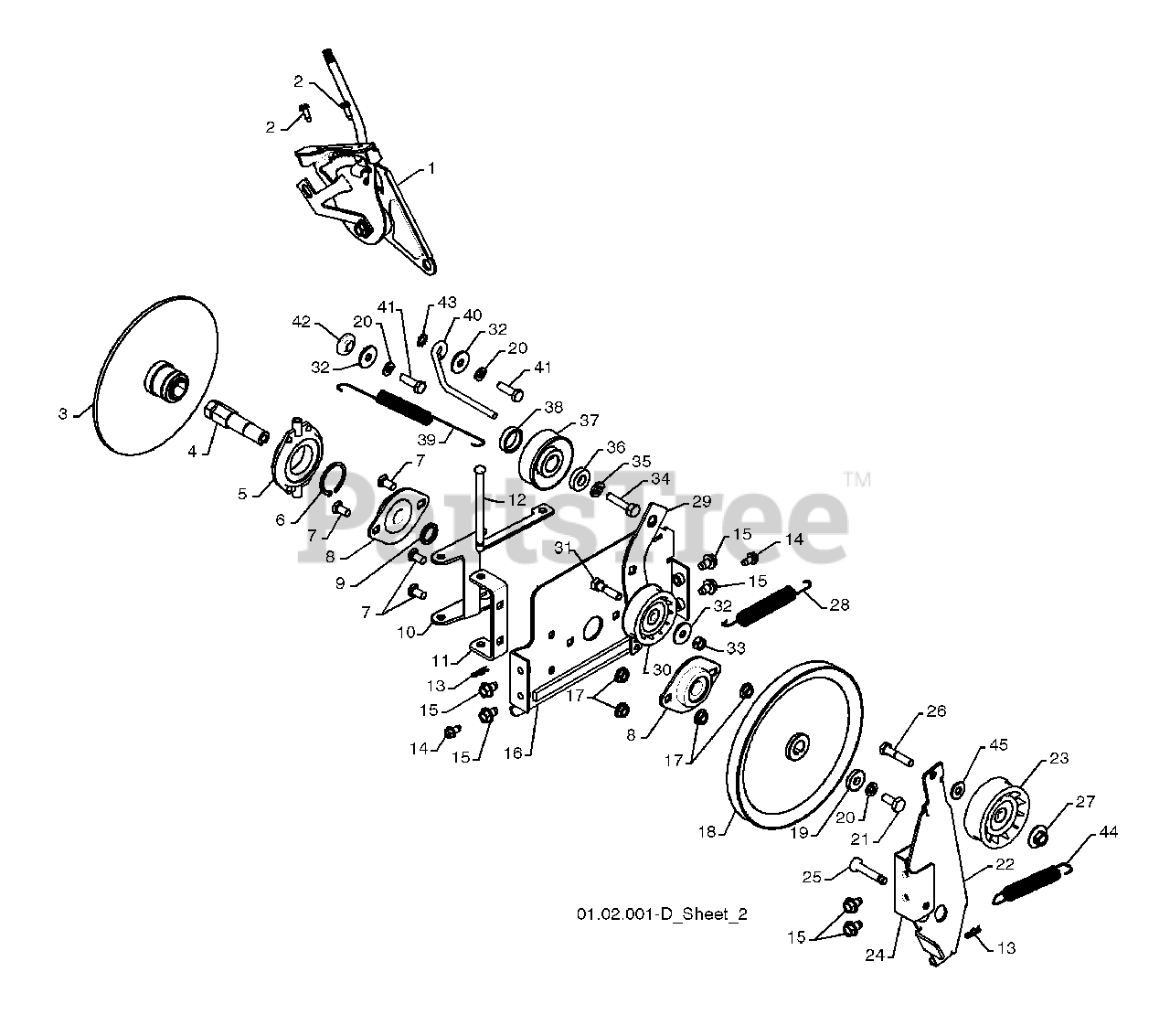

Drive Parts Diagram

  • Title
1

Husqvarna 532198474

SPEED SELECTOR HEAD ASSEMBLY
(Superseded to 532429667)

$

$

Not available

2

Husqvarna 817501010

SCREW 10-24 X .625

$

$

Not available

3

Husqvarna 532197763

DRIVE PLATE WELDMENT

$66.99

$

Usually ships in 3-10 days

0

4

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532175344

TRUNNION BEARING ASSEMBLY
(Superseded to 597412801)

$34.99

$

In Stock, only 1 left!

0

6

Husqvarna 812000012

RETAINER
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 872270505

CARRIAGE BOLT 5/16-18 X .625
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 532188909

FLANGE BEARING

$28.99

$

In Stock, only 2 left!

0

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532184077

LEVER SHIFTER PLATE

$12.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532184076

SHIFTER SUPPORT BRACKET
(Superseded to 532175349)

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

13

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 817490408

SCREW 1/4-20 X .500
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 817490508

BOLT 5/16-18 X .500
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532184075

DRIVE MOUNT PLATE

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532155377

NUT 5/16-18

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532191080

TRACTION PULLEY

$66.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 810040500

LOCKWASHER 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

21

Husqvarna 874950512

SCREW 5/16-18 X .750

$4.99

$

In Stock, only 3 left!

0

22

Husqvarna 532419925

IDLER BRAKE ARM
(Superseded to 532422111)

$15.99

$

In Stock, only 1 left!

0

23

Husqvarna 532180523

IDLER PULLEY

$24.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532184074

IDLER PIVOT BRACKET
(Superseded to 532422762)

$91.99

$

Usually ships in 3-10 days

0

$5.99

$

In Stock, Qty 18

0

26

Husqvarna 874780524

SCREW 5/16-18 X 1.50
(Superseded to 539976935)

$

$

Not available

27

Husqvarna 532166785

NUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

28

Husqvarna 532181044

TRACTION SPRING
(Superseded to 532414557)

$6.49

$

In Stock, only 4 left!

0

29

Husqvarna 532179354

IDLER TRACTION ARM
(Superseded to 585238401)

$44.99

$

In Stock, only 2 left!

0

30

Husqvarna 532180522

IDLER PULLEY

$31.99

$

Usually ships in 3-10 days

0

31

Husqvarna 874780520

SCREW 5/16-18 X 1.25
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 873930500

NUT 5/16-18

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532851084

SCREW 3/8-24 X 1.38
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532850263

LOCKWASHER 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

$9.49

$

In Stock, only 3 left!

0

37

Husqvarna 532180478

ENGINE TRACTION PULLEY
(Superseded to 595926601)

$31.99

$

Usually ships in 3-10 days

0

$9.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532179095

RETURN SPRING

$6.49

$

In Stock, only 1 left!

0

40

Husqvarna 532155452

BELT GUIDE

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 874610516

SCREW 5/16-18 X 1.00

$4.99

$

In Stock, only 3 left!

0

42

Husqvarna 532175331

BUSHING
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

43

Husqvarna 811050500

LOCKWASHER 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 2 left!

0

44

Husqvarna 532178828

BRAKE SPRING

$6.49

$

In Stock, only 2 left!

0

$5.99

$

In Stock, only 1 left!
