924 I (1695302) - Simplicity 24" Snow Thrower, 9hp Auger Housing & Chute Group Parts Diagram

24" Snow Thrower, 9hp

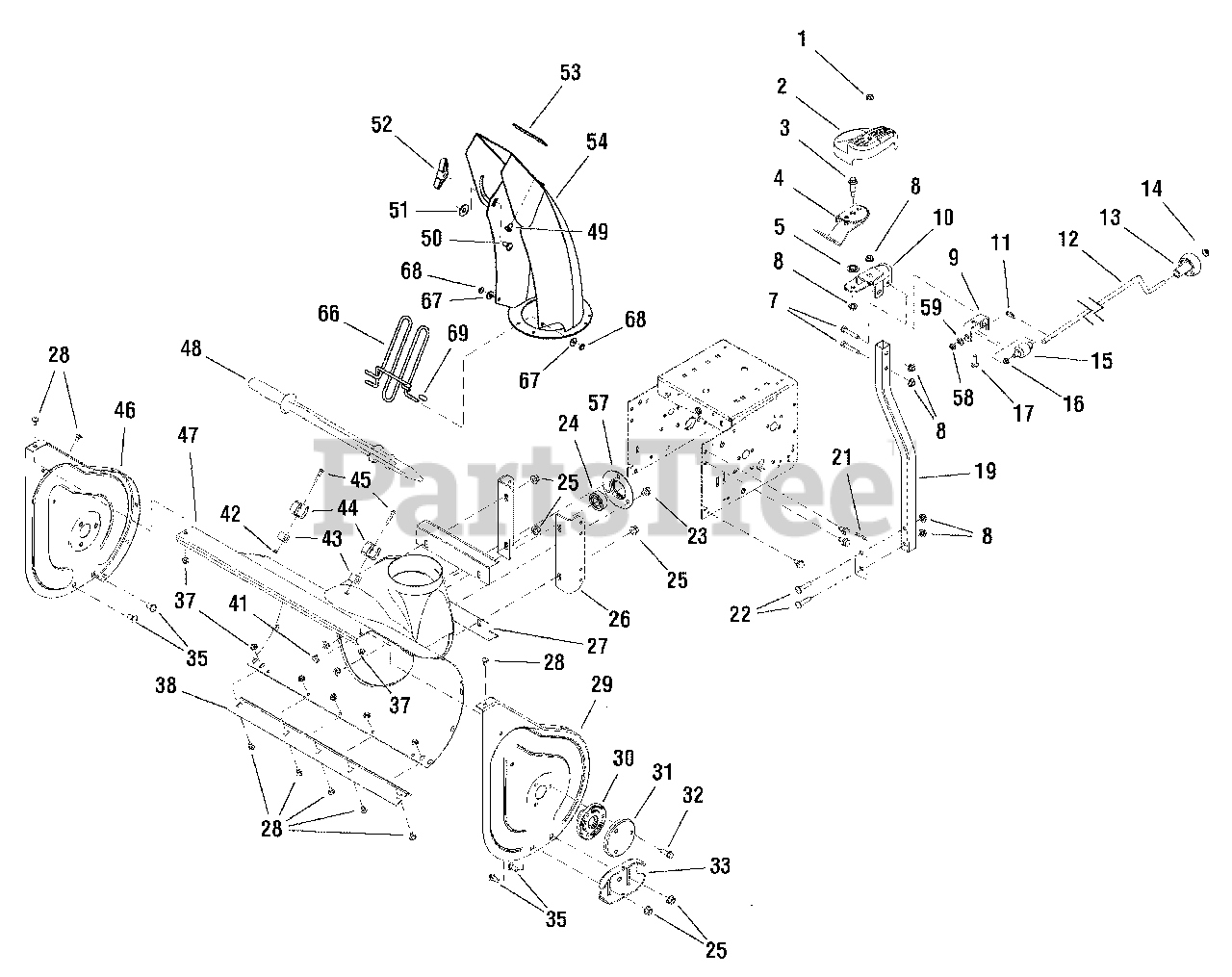

Auger Housing & Chute Group Parts Diagram

  • Title

1

Simplicity 1935048SM

NUT, Hex Flange 5/16-18 Two Way Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 1734442SM

COVER, Gears

$7.99

$

In Stock, only 1 left!

0

3

Simplicity 1732412SM

BOLT, Shoulder 5/16-18 G5

$15.99

$

Usually ships in 2-12 days

0

4

Simplicity 1734773SM

GEAR & SUPPORT ASSEMBLY, Chute

$70.99

$

Usually ships in 2-12 days

0

5

Simplicity 1733026SM

WASHER, Powdered Metal

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 1922127SM

CAPSCREW, Hex Head 5/16-18 x 1-3/4 G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960684SM

NUT, Hex KEPS 5/16-18 Conical Washer
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

9

Simplicity 1734440SM

SUPPORT, Worm "U" 10GA

$7.99

$

Usually ships in 2-12 days

0

10

Simplicity 1734423ASM

SUPPORT, Gear & Chute 10GA

$19.99

$

Usually ships in 2-12 days

0

11

Simplicity 1501293MA

PIN, Hair Chute Gear

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 1734404SM

ROD, Chute Control E-Coat

$16.99

$

Usually ships in 2-12 days

0

13

Simplicity 1714084SM

KNOB, Spinner

$12.99

$

In Stock, only 1 left!

0

14

Simplicity 1960093SM

NUT, Push Pal 3/8 Diameter Stud Capped
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

15

Simplicity 1734439SM

WORM, Chute L.H.

$35.99

$

Usually ships in 2-12 days

0

16

Simplicity 1667588SM

BUSHING

$5.99

$

In Stock, Qty 20+

0

17

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1 G5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

19

Simplicity 1734195ASM

TUBE

$31.99

$

Usually ships in 2-12 days

0

21

Simplicity 1734201ASM

SUPPORT, Tube 10GA

$23.99

$

Usually ships in 2-12 days

0

22

Simplicity 1931337SM

CARRIAGE BOLT, 5/16-18 x 1-1/2 G5
(Superseded to 703296)

$4.49

$

In Stock, only 4 left!

0

23

Simplicity 1931648SM

SCREW, Hex Whiz Lock Flange 5/16-18 x 1/2
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

24

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

25

Simplicity 1960687SM

NUT, Hex Flange 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

26

Simplicity 1734055CSM

BRACKET, Housing 12GA

$31.99

$

Usually ships in 2-12 days

0

27

Simplicity 1734063CSM

ANGLE, Fill Strip

$19.99

$

Usually ships in 2-12 days

0

28

Simplicity 1931315SM

CARRIAGE BOLT, 1/4-20 x 1/2 G5
(Superseded to 703978)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1726458CSM

PLATE, End L.H.

$146.99

$

Usually ships in 2-12 days

0

30

Simplicity 1726457SM

HOUSING, Auger Bearing

$

$

Not available

31

Simplicity 1668639ASM

CAP, Bearing
(Superseded to 1668639BMYP)

$51.99

$

Usually ships in 2-12 days

0

32

Simplicity 1960373SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 1727854ASM

SKID, Shoe Reversible
(Superseded to 1727854BMYP)

$16.99

$

In Stock, Qty 20+

0

35

Simplicity 1960711SM

CARRIAGE BOLT, 3/8-16 x 3/4 G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1930641SM

NUT, Hex Flange 1/4-20 Whiz Lock Large
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 7300098ASM

BLADE, Scraper 24"
(Superseded to 7600018SM)

$66.99

$

In Stock, only 3 left!

0

41

Simplicity 1930659SM

RETAINER, Nut, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

42

Simplicity 1933896SM

NUT, Hex Lock 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

43

Simplicity 578063MA

BLOCK, Universal Pivot

$5.49

$

In Stock, only 2 left!

0

44

Simplicity 1501672MA

CLIP, Retainer

$8.99

$

In Stock, Qty 17

0

45

Simplicity 2860604SM

SCREW, Hex Washer Head Slot #10C x 1-1/4 G2

$4.49

$

Usually ships in 2-12 days

0

46

Simplicity 1726459CSM

PLATE, End R.H. 14GA

$136.99

$

Usually ships in 2-12 days

0

47

Simplicity 1734475CSM

WRAPPER ASSEMBLY, 24" Auger

$364.99

$

Usually ships in 2-12 days

0

48

Simplicity 1733209SM

STICK, Cleanout w/Brush
(Superseded to 1736094YP)

$34.99

$

In Stock, only 3 left!

0

49

Simplicity 7091542SM

SCREW, Phillips Head Taptite, Torx 5/16C x 1/2
(Superseded to 703932)

$4.99

$

Usually ships in 2-12 days

0

50

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

51

Simplicity 2860210SM

WASHER

$4.49

$

In Stock, only 2 left!

0

52

Simplicity 071294MA

WINGNUT, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

53

Simplicity 1706085SM

DECAL, Hinge

$13.99

$

Usually ships in 2-12 days

0

54

Simplicity 1734206CSM

CHUTE & DEFLECTOR ASSEMBLY

$216.99

$

Usually ships in 2-12 days

0

57

Simplicity 1665982SM

RETAINER, Bearing

$6.99

$

In Stock, Qty 16

0

58

Simplicity 1960762SM

NUT, Hex Lock Jam ESNA Lite 3/8-24

$4.99

$

Usually ships in 2-12 days

0

59

Simplicity 1734542SM

WASHER, Cup

$5.49

$

Usually ships in 2-12 days

0

66

Simplicity 1735174SM

GUARD, Chute

$58.99

$

Usually ships in 2-12 days

0

67

Simplicity 1678366SM

WASHER, Nylon

$5.49

$

Usually ships in 2-12 days

0

68

Simplicity 1960126SM

NUT, Push 1/4
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

69

Simplicity 1733647SM

CAP, Wire 1/4

$3.99

$

Usually ships in 2-12 days

0
