924 HVX (961950017-00) - Husqvarna 24" Snow Blower (2013-06) DRIVE Parts Diagram

24" Snow Blower

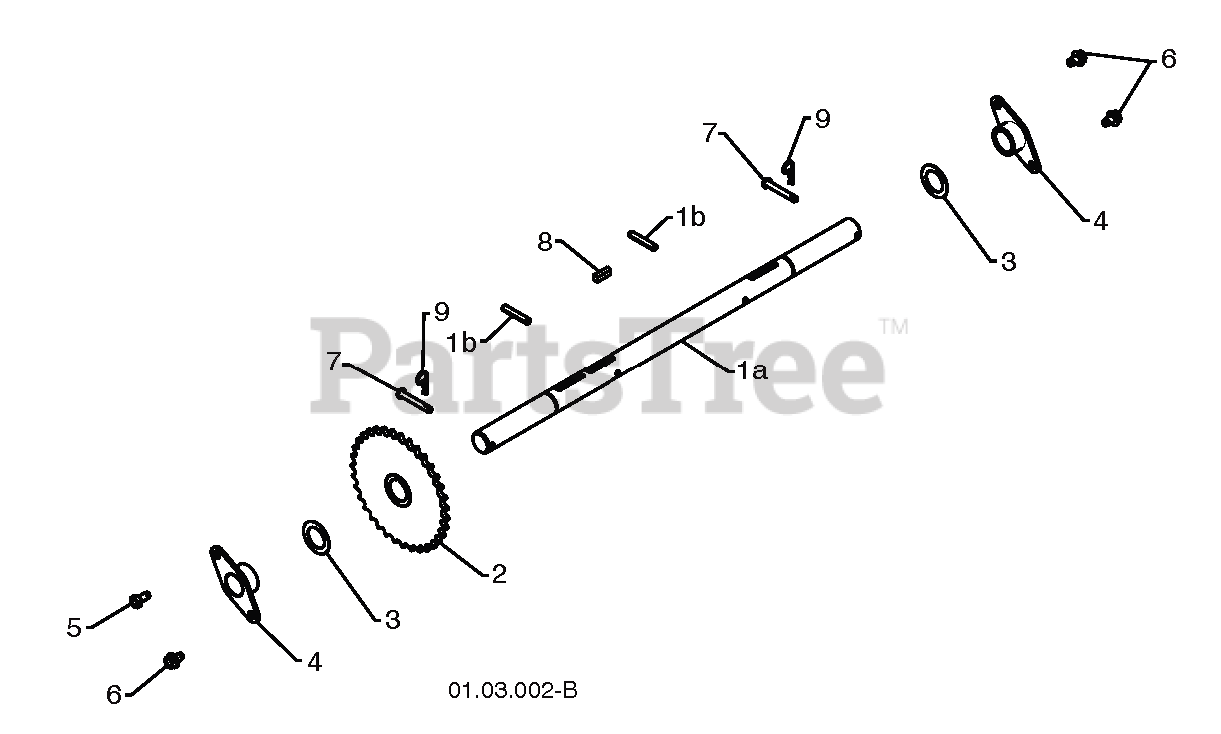

DRIVE Parts Diagram

  • Title
7

Husqvarna 532171271

RIVET
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

1a

Husqvarna 532404307

SHAFT.AXLE.POWER.STEERING

$72.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532444949

WASHER 1.00

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

8

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

1

Husqvarna 532404923

AXLE.ASM.SHAFT.W/ROLLPIN.PS

$66.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532179830

BEARING, AXLE

$24.99

$

In Stock, only 2 left!

0

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532402691

SPROCKET.WELDMENT.AXLE.1.00

$60.99

$

Usually ships in 3-10 days

0

1b

Husqvarna 532184206

PIN.ROLL.3/16

$4.99

$

Usually ships in 3-10 days

0
