924 HV (961930070-04) - Husqvarna 24" Snow Blower (2012-08) "CHASSIS, ENGINE & PULLEYS" 3 Parts Diagram

24" Snow Blower

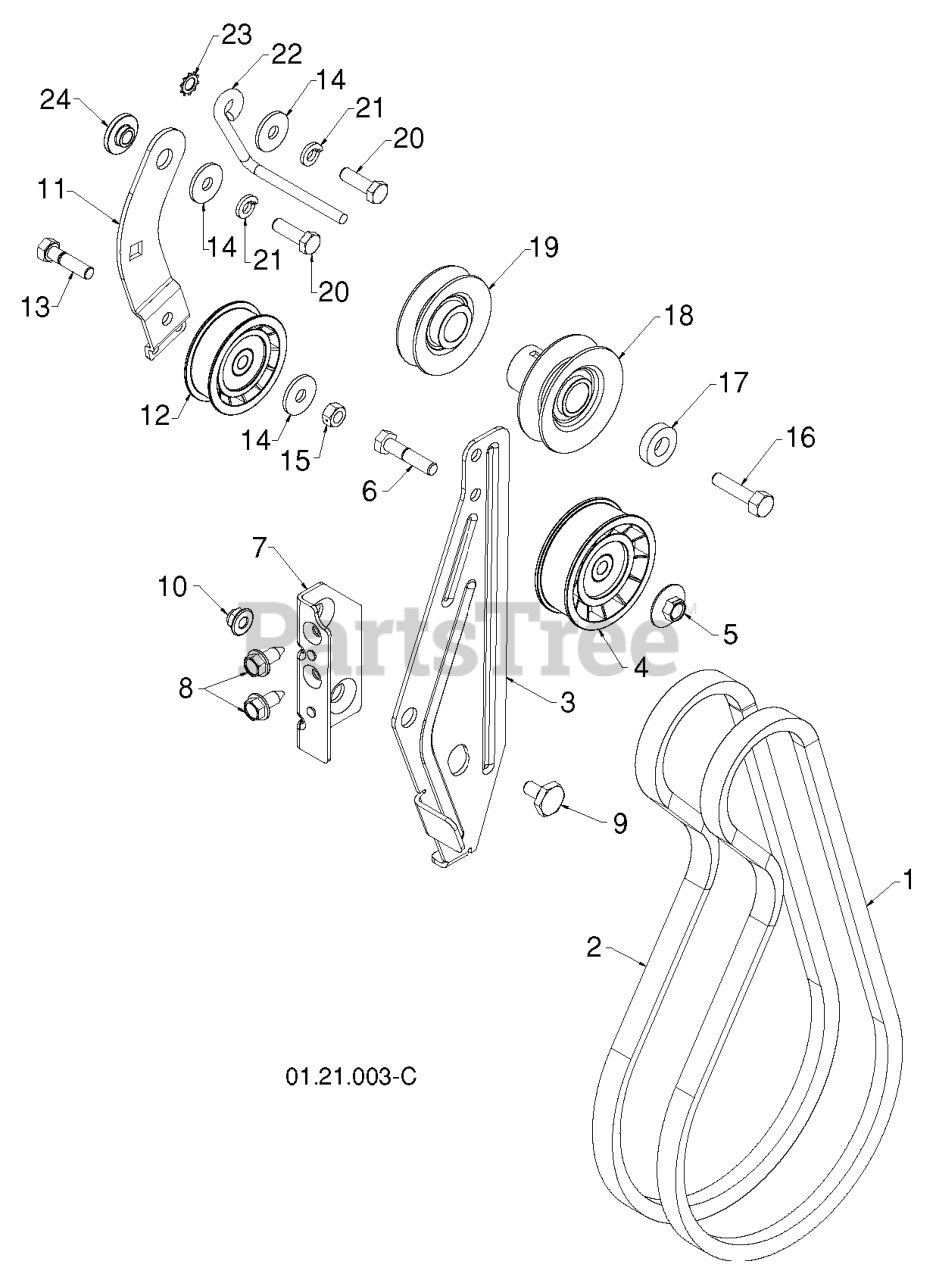

"CHASSIS, ENGINE & PULLEYS" 3 Parts Diagram

  • Title
14

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 532419744

V-BELT TRACTION 34.25

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 2 left!

0

$4.99

$

In Stock, only 3 left!

0

3

Husqvarna 532429271

ARM.IDLER.BRAKE.
(Superseded to 584232402)

$

$

Not available

17

Husqvarna 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 3 left!

0

13

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532187786

ARM, IDLER
(Superseded to 585238401)

$44.99

$

In Stock, only 2 left!

0

8

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

6

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$

$

Not available

10

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 532180523

PULLEY.W/SPACER.2.75

$24.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532424297

BOLT.SHOULDER.1/2X12

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532426490

PULLEY.ENG.TRACTION

$15.99

$

In Stock, only 1 left!

0

24

Husqvarna 532175331

RP BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532426491

PULLEY.IMPELER.

$26.99

$

In Stock, only 1 left!

0

22

Husqvarna 532155452

BELT.GUIDE.RH

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532180522

PULLEY.W/SPACER.2.25

$31.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

15

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532408007

BELT.V.IMPELLER

$43.99

$

In Stock, Qty 20+

0

21

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

7

Husqvarna 532429270

RP BRACKET.IDLER.PIVOT
(Superseded to 532423990)

$6.49

$

Usually ships in 3-10 days

0
