922024 - Ariens 20" Sno-Thro Attachment (SN: 018001 & Above) TRACTOR DRIVE PARTS LIST Parts Diagram

20" Sno-Thro Attachment

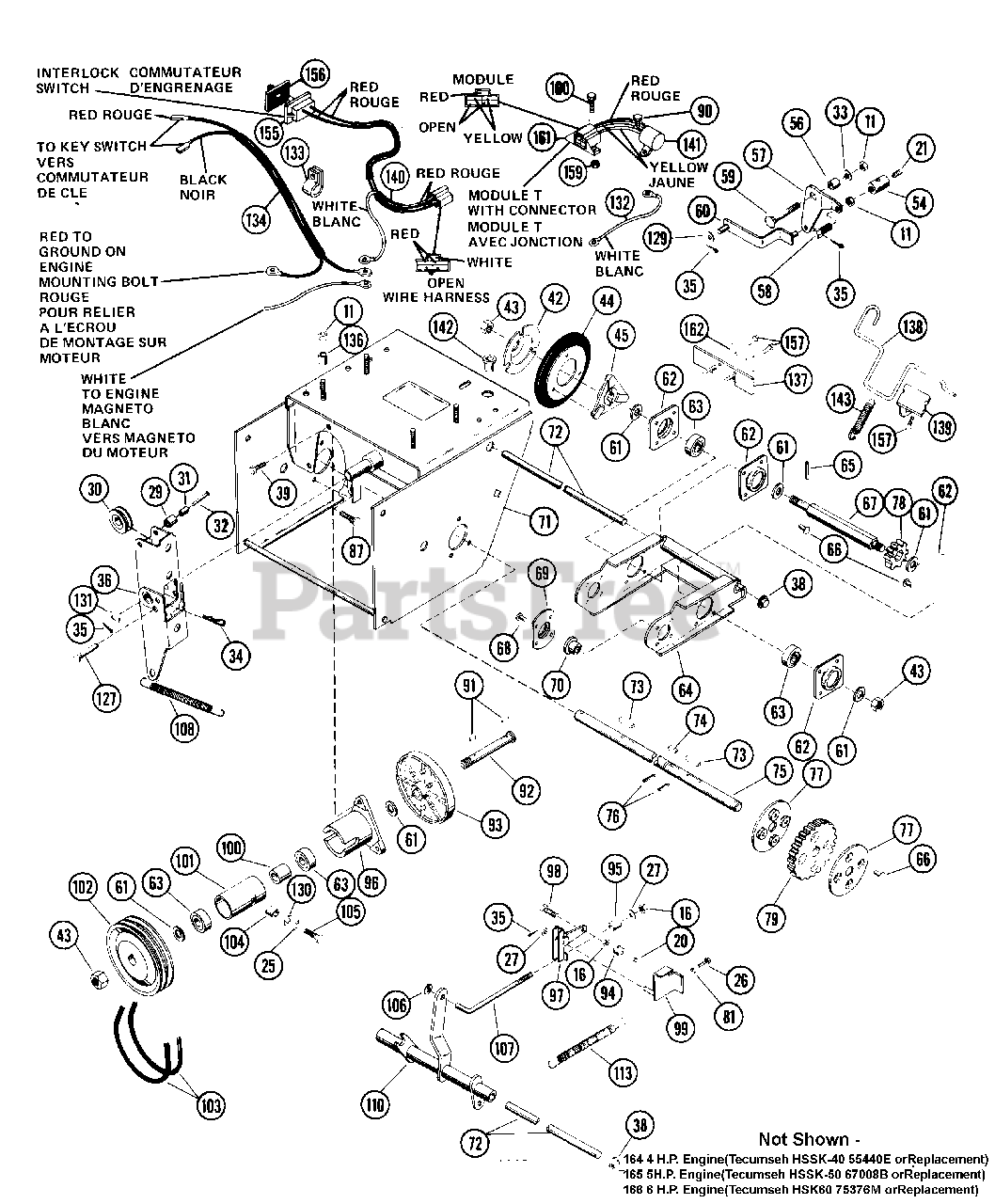

TRACTOR DRIVE PARTS LIST Parts Diagram

  • Title

11

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

25

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

Usually ships in 4-12 days

0

29

Ariens 05504800

BSHG-SLV .500X.625X.937

$59.99

$

In Stock, only 2 left!

0

30

Ariens 02204700

IDLER

$68.99

$

Usually ships in 4-12 days

0

31

Ariens 02205300

IDLER SHAFT

$20.99

$

Usually ships in 4-12 days

0

32

Ariens 06804800

RVT-TBLR .187X1.218 OH ST PL

$0.99

$

Usually ships in 4-12 days

0

33

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

36

Ariens 52200900

IDLER ARM ASSEMBLY

$

$

Not available

38

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

39

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

42

Ariens 02219600

RETAINER

$28.99

$

Usually ships in 4-12 days

0

43

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.49

$

Usually ships in 4-12 days

0

44

Ariens 02201300

FRICTION DISC
(Superseded to 03248300)

$39.99

$

In Stock, Qty 20+

0

45

Ariens 02219200

FRICTION DISC HUB

$53.99

$

Usually ships in 4-12 days

0

54

Ariens 02213500

ROD ADAPTER

$38.99

$

Usually ships in 4-12 days

0

56

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$5.99

$

In Stock, only 4 left!

0

57

Ariens 02203500

SHIFT LEVER

$

$

Not available

58

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

59

Ariens 06202400

BLT-RDHDSQNK .31-18X2.0 SHT PL

$

$

Not available

60

Ariens 02215500

SHIFT LINK

$

$

Not available

61

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

62

Ariens 00303100

BEARING FLANGE
(Superseded to 02414100)

$18.99

$

In Stock, only 1 left!

0

63

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

64

Ariens 02215800

CARRIER

$

$

Not available

65

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

66

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 10

0

67

Ariens 02201000

HEX SHAFT

$34.99

$

Usually ships in 4-12 days

0

68

Ariens 06803100

RVT-POP.125 X .294 DOME

$

$

Not available

69

Ariens 02201500

BEARING RETAINER

$

$

Not available

70

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 7

0

71

Ariens 02213600

TRACTOR FRAME

$

$

Not available

72

Ariens 02200900

SHAFT

$

$

Not available

73

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

$8.49

$

In Stock, Qty 7

0

74

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

75

Ariens 02201700

AXLE SHAFT

$92.99

$

Usually ships in 4-12 days

0

76

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

77

Ariens 02205400

RETAINER PLATE

$

$

Not available

78

Ariens 02201100

PINION

$10.99

$

In Stock, only 1 left!

0

79

Ariens 01021100

SPUR GEAR, FELLOWS 35T .750 ID

$90.99

$

Usually ships in 4-12 days

0

81

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

90

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

91

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

92

Ariens 02200400

SPINDLE

$

$

Not available

93

Ariens 02200500

DRIVE DISK

$

$

Not available

94

Ariens 02205100

ROD ADAPTER

$

$

Not available

95

Ariens 00327900

SPACER

$

$

Not available

96

Ariens 02200300

DRIVE SPINDLE HOUSING
(Superseded to 52406000)

$206.99

$

Usually ships in 4-12 days

0

97

Ariens 02214300

DEADMAN LEVER

$

$

Not available

98

Ariens 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

99

Ariens 02202500

DEADMAN BRACKET

$

$

Not available

100

Ariens 02200600

BEARING SPACER .75 X .5 X.88

$

$

Not available

101

Ariens 02200200

SPINDLE HOUSING
(Superseded to 52406000)

$206.99

$

Usually ships in 4-12 days

0

102

Ariens 02204800

DRIVE SHEAVE

$

$

Not available

103

Ariens 07207400

V-BELT, SPECIAL-RAW EDGE (SET)

Note: (Used Only On Model(s): 922022,922023).

$45.99

$

Usually ships in 4-12 days

0

103

Ariens 07202300

V-BELT, SPECIAL-RAW EDGE (SET)

Note: (Used Only On Model(s): 922018,922019,922020,922021).

$52.99

$

In Stock, Qty 5

0

104

Ariens 00303400

ROLLER

$15.99

$

In Stock, only 2 left!

0

105

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

106

Ariens 01037600

RATCHET PLATE

$

$

Not available

107

Ariens 02201200

ADJUSTMENT LINK

$51.99

$

Usually ships in 4-12 days

0

108

Ariens 08302600

SG-TENS .063X.44X2.81 WLD 18

$20.99

$

Usually ships in 4-12 days

0

110

Ariens 02219100

CLUTCH FORK

$

$

Not available

113

Ariens 08302600

SG-TENS .063X.44X2.81 WLD 18

$20.99

$

Usually ships in 4-12 days

0

127

Ariens 02213200

CLEVIS PIN

$

$

Not available

129

Ariens 06409100

WSHR-FL-STL .250X.562X.125 PL
(Superseded to 06439500)

$1.49

$

Usually ships in 4-12 days

0

130

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

131

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

132

Ariens 02216300

WIRE GROUND

$

$

Not available

133

Ariens 06906600

CLIP

$

$

Not available

134

Ariens 02216100

SHORTING WIRE

$

$

Not available

136

Ariens 01026200

ENG BOLT SPCR

Note: (Used Only On Model(s): 922022,922023).

$

$

Not available

137

Ariens 02213800

BRACKET SWITCH

$

$

Not available

138

Ariens 02213900

ACTUATOR SWITCH

$

$

Not available

139

Ariens 02214000

RETAINER ROD

$

$

Not available

140

Ariens 02216700

WIRING HARNESS

$

$

Not available

141

Ariens 52401000

MODULE T SERVICE ASSEMBLY

$

$

Not available

142

Ariens 07505000

SNAP BUSHING-.437

$

$

Not available

143

Ariens 08316300

SG-TENS .026X.38X3.75 WLD 1.58

$

$

Not available

155

Ariens 02517200

SWITCH

$41.99

$

Usually ships in 4-12 days

0

156

Ariens 07504500

SWITCH BOOT

$

$

Not available

157

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

159

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

160

Ariens 05909700

BLT-HEX 10-24X.38 PL GR2

$

$

Not available

161

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

$

$

Not available

162

Ariens 02216200

STRAP - SWITCH BRACKET

$

$

Not available

163

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

164

4 H.P. Engine(Tecumseh HSSK-40 55440E orReplacement)

Note: (Used Only On Model(s): 922018,922019).

$

$

Not available

165

5 H.P. Engine(Tecumseh HSSK-50 67008B orReplacement)

Note: (Used Only On Model(s): 922020,922021).

$

$

Not available

166

6 H.P. Engine(Tecumseh HSK60 75376M orReplacement)

Note: (Used Only On Model(s): 922022,922023).

$

$

Not available
