921S - Scag Tiger Striper for STC, SCZ, STT Mower SCZ - 61/72 (Cheetah) Striper Assembly Parts Diagram

Tiger Striper for STC, SCZ, STT Mower

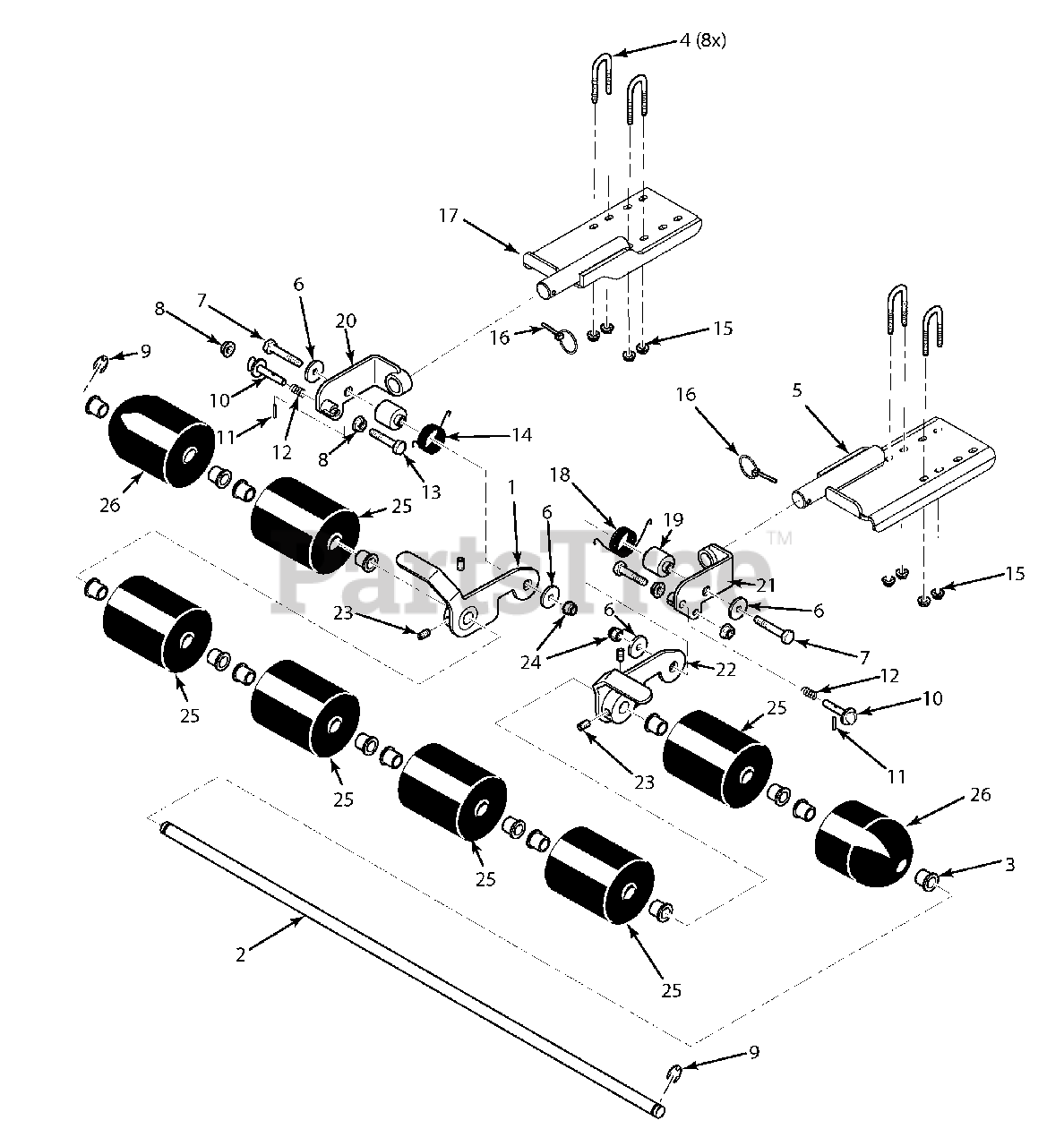

SCZ - 61/72 (Cheetah) Striper Assembly Parts Diagram

  • Title

1

Scag 451668

Hinge Weldment, L.H.

$69.99

$

In Stock, only 1 left!

0

2

Scag 43653

Roller Shaft

$60.99

$

In Stock, only 1 left!

0

3

Scag 48100-24

Bushing, .752 Oilite

$3.49

$

In Stock, only 1 left!

0

4

Scag 04100-05

U-Bolt, 1/4-20 x 3/4"

$8.99

$

Usually ships in 2-12 days

0

5

Scag 452177

Mounting Bracket Weldment, SCZ LH.

$96.99

$

Usually ships in 2-12 days

0

6

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1/2" 7 Gauge

$1.99

$

In Stock, only 4 left!

0

7

Scag 04001-22

Bolt, Hex Head 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 10

0

8

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 04050-02

Retaining Ring, .750 External "E"

$0.99

$

In Stock, Qty 7

0

10

Scag 461777

Pin, Lift Latch

$8.99

$

Usually ships in 2-12 days

0

11

Scag 04060-01

Pin, Slotted Spring .156 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

12

Scag 482896

Spring, Lock Pin

$12.99

$

Usually ships in 2-12 days

0

13

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

14

Scag 482894

Spring, Torsion L.H.

$20.99

$

Usually ships in 2-12 days

0

15

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

16

Scag 04066-02

Quick Pin, .188 Dia.

$4.49

$

In Stock, only 4 left!

0

17

Scag 452178

Mounting Bracket Weldment, SCZ R.H.

$96.99

$

Usually ships in 2-12 days

0

18

Scag 482895

Spring, Torsion R.H.

$20.99

$

Usually ships in 2-12 days

0

19

Scag 43648

Hub, Striper

$16.99

$

Usually ships in 2-12 days

0

20

Scag 451669

Pivot Weldment, L.H.

$67.99

$

Usually ships in 2-12 days

0

21

Scag 451670

Pivot Weldment, R.H.

$67.99

$

Usually ships in 2-12 days

0

22

Scag 451667

Hinge Weldment, R.H.

$69.99

$

Usually ships in 2-12 days

0

23

Scag 04012-06

Set Screw, 3/8-16 x 1/2"

$0.99

$

In Stock, only 1 left!

0

24

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

25

Scag 461707

Roller Assembly
(Superseded to 485769)

Note: (Incl. Item 3)

$25.99

$

Usually ships in 2-12 days

0

26

Scag 461730

Roller Assembly, Striper End
(Superseded to 485770)

Note: (Incl. Item 3)

$25.99

$

Usually ships in 2-12 days

0

27

Scag 451668

Hinge Weldment, L.H.

$69.99

$

In Stock, only 1 left!

0
