921933 - Ariens Platinum 24" SHO Snow Blower, Ariens AX 369cc, 90th Anniversary (SN: 000101 & Above) Wheels and Axles Parts Diagram

Platinum 24" SHO Snow Blower, Ariens AX 369cc, 90th Anniversary

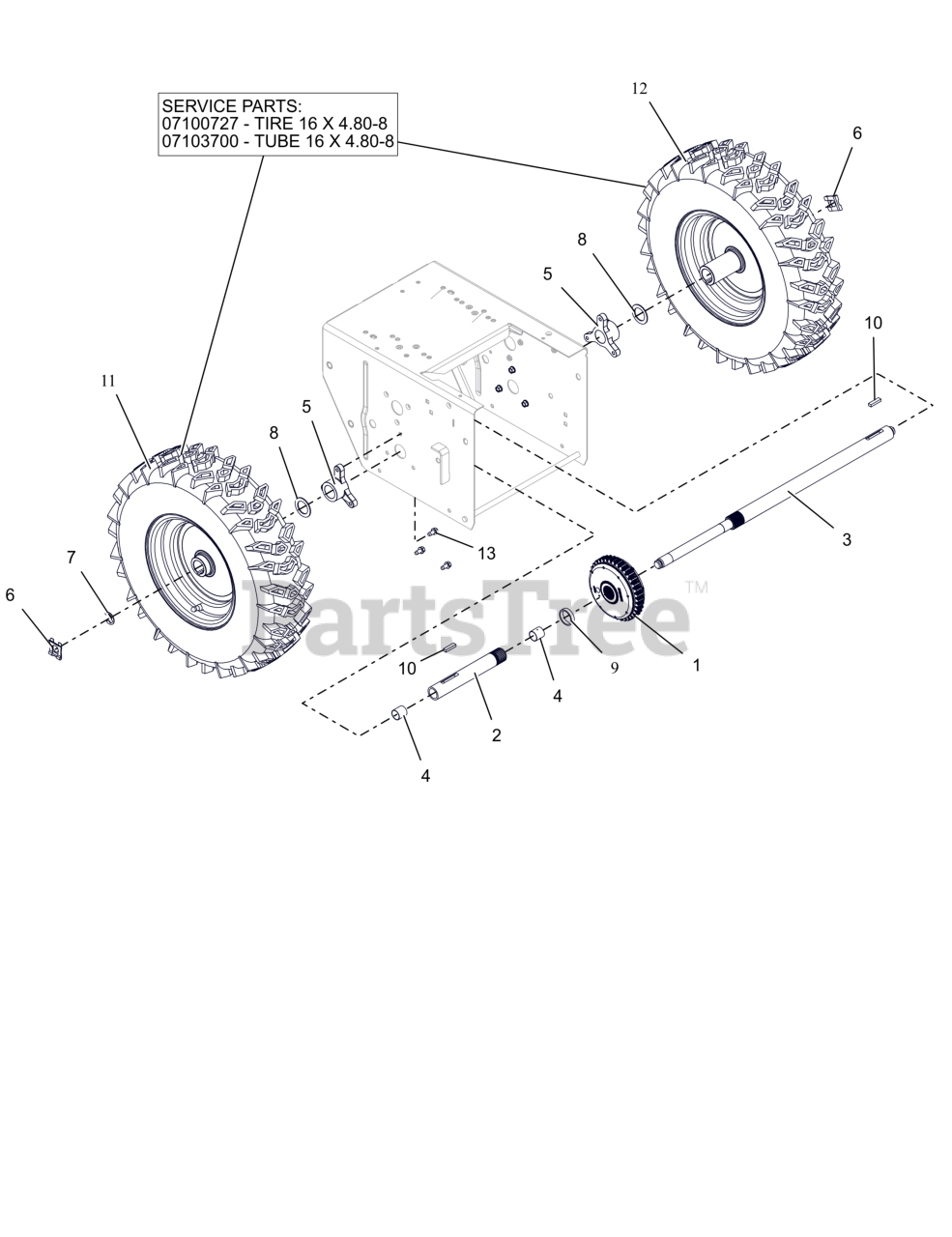

Wheels and Axles Parts Diagram

  • Title

1

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$155.99

$

In Stock, Qty 9

0

2

Ariens 52109000

AXLE, SHORT - W/BUSHINGS

$

$

Not available

3

Ariens 04984800

AXLE,LONG-DELUXE AUTO DIFF

$89.99

$

Usually ships in 4-12 days

0

4

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

5

Ariens 05500829

BUSHING, AXLE

$10.99

$

In Stock, Qty 7

0

6

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

7

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06401132

WSHR, FLT 1.010X1.505X.062 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05501413

BSHG, SLV 1.062X1.228X.268

$

$

Not available

10

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

11

Ariens 07101526

TIRE/WHEEL RH 16X4.8-8 DIFF T2

$113.99

$

Usually ships in 4-12 days

0

12

Ariens 07101527

TIRE/WHEEL LH 16X4.8-8 DIFF T2

$113.99

$

Usually ships in 4-12 days

0

12

Ariens 07100727

SNOW TIRE, 16/4.80-8 K478 DIRECTIONAL

Note: COMPONENT SERVICE PART

$79.99

$

Usually ships in 4-12 days

0

12

Ariens 07103700

TIRE TUBE, 16X4.80/4.00-8 4 PLY TR13 STRAIGHT VALVE

Note: COMPONENT SERVICE PART

$14.99

$

In Stock, only 1 left!

0

13

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
