921933 - Ariens Platinum 24" SHO Snow Blower, Ariens AX 369cc, 90th Anniversary (SN: 000101 & Above) Housing Parts Diagram

Platinum 24" SHO Snow Blower, Ariens AX 369cc, 90th Anniversary

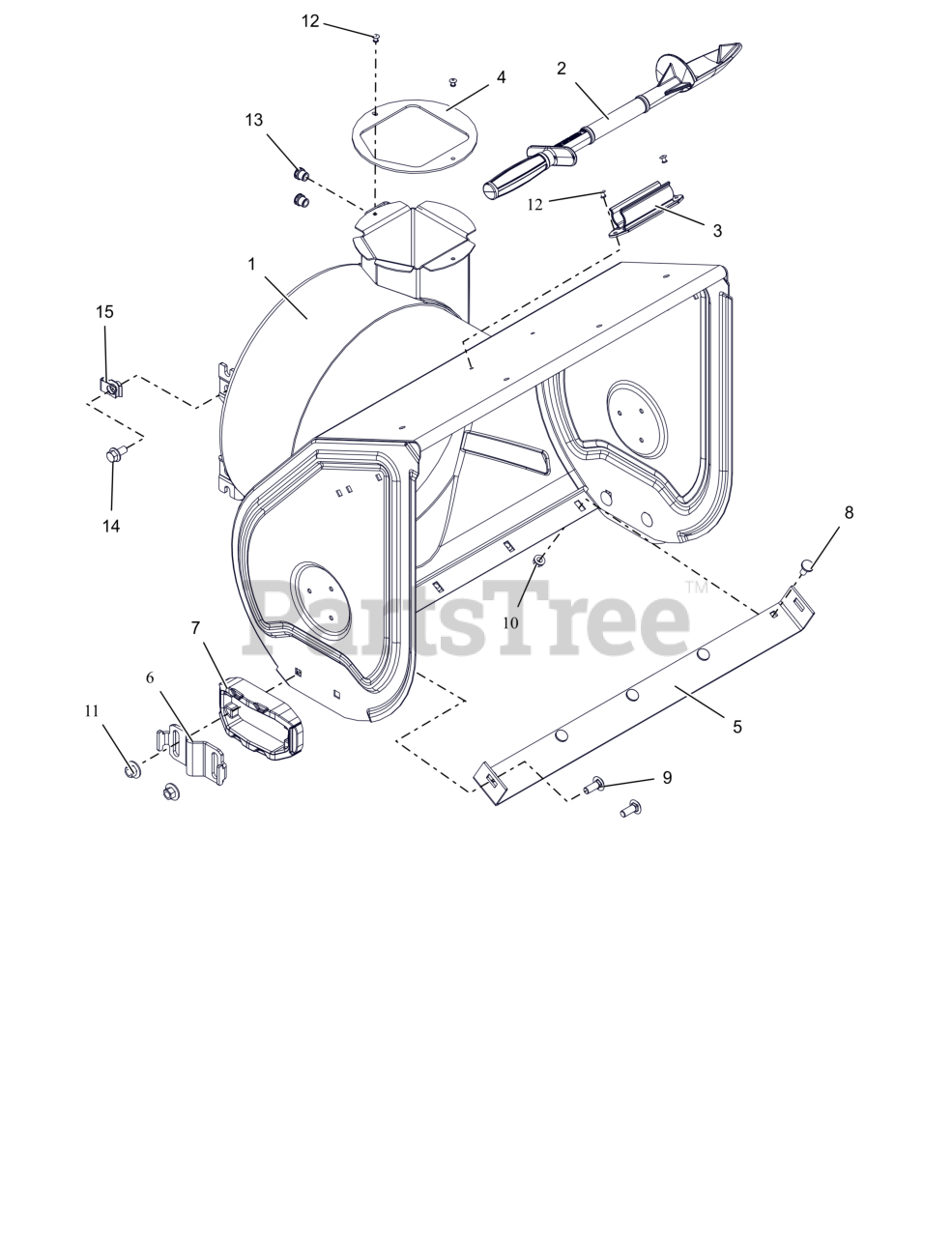

Housing Parts Diagram

  • Title
1

Ariens 52112000

HOUSING, BLOWER W/SAFETY DECALS 24"

$323.99

$

Usually ships in 4-12 days

0

2

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 10

0

3

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

4

Ariens 00600100

BAFFLE, DISCHARGE NECK

$12.99

$

Usually ships in 4-12 days

0

5

Ariens 00658559

BLADE, SCRAPER-24"

$35.99

$

In Stock, Qty 20+

0

6

Ariens 04889741

SHOE, SKID - INSERT (GREY)

$13.99

$

Usually ships in 4-12 days

0

7

Ariens 04889800

SHOE, SKID - WEAR

$

$

Not available

8

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06501007

NUT- CON-LN .375-16 ZC120

$

$

Not available

12

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 14

0

13

Ariens 07001805

NUT,THD,INSERT .38-16 ZC120

$2.49

$

Usually ships in 4-12 days

0

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0
