9217-0 - Generac 2,400 Watt Portable Generator A-C Generator Parts Diagram

2,400 Watt Portable Generator

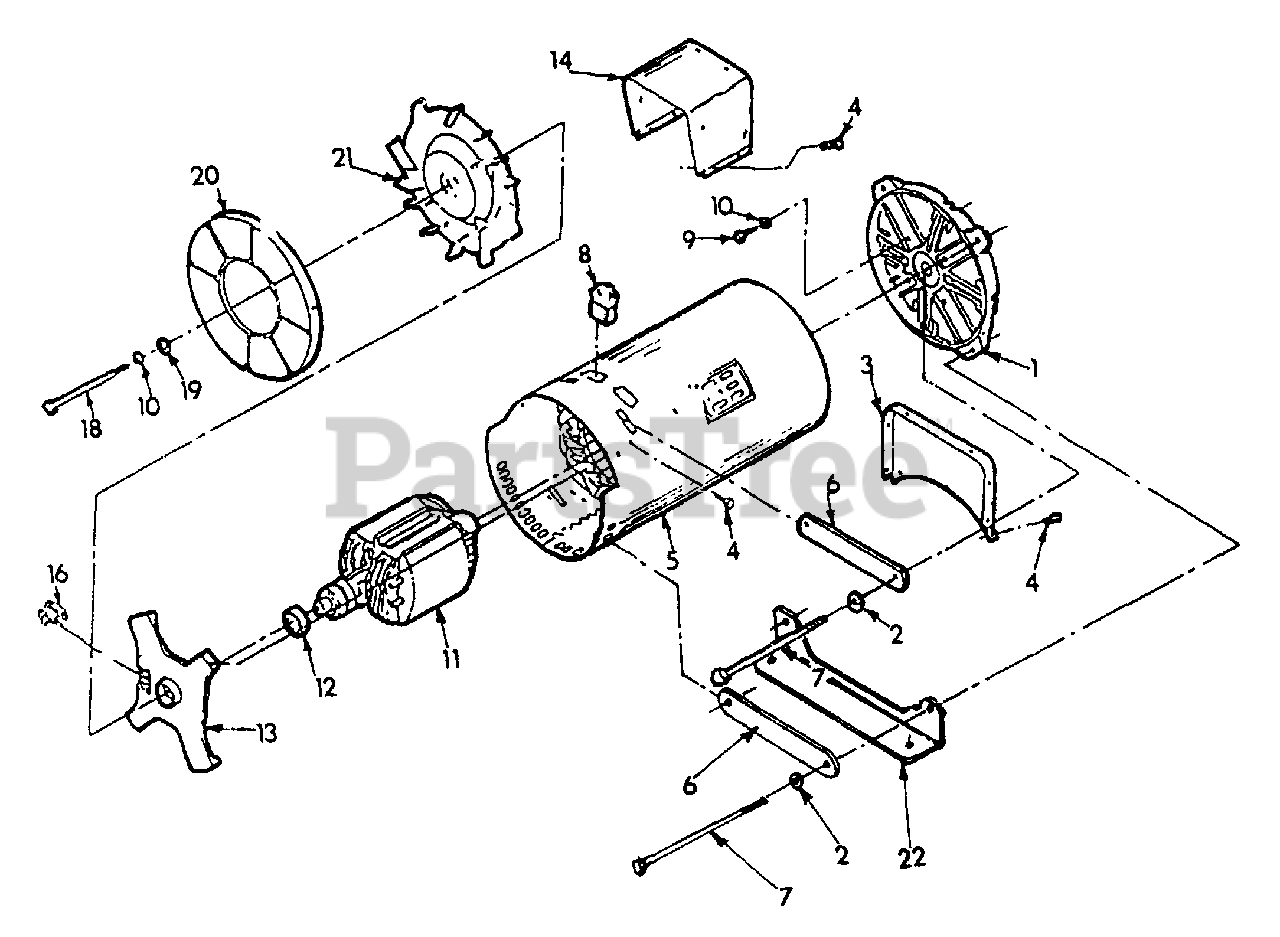

A-C Generator Parts Diagram

  • Title

1

Briggs & Stratton 60220D

Engine adapter housing

$

$

Currently unavailable

2

Briggs & Stratton 22097

1/4" Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 43874

Panel shroud back
(Superseded to 7043874YP)

$34.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 24489

No. 10-32 x 3/8" Screw

$

$

Currently unavailable

5

Briggs & Stratton 77275

Stator assembly
(Superseded to 7057538YP)

$148.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 44338

Stator bolt bar

$

$

Currently unavailable

7

Briggs & Stratton 75980

Stator bolt

$

$

Currently unavailable

8

Briggs & Stratton 28293

Bridge rectifier assembly

$

$

Currently unavailable

9

Briggs & Stratton 22336

5/16"-24 x 3/4" Hex head capscrew

$

$

Not available

10

Briggs & Stratton 22129

5/16" Lockwasher
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 75975

Rotor assembly

$

$

Currently unavailable

12

Briggs & Stratton 24049

Rotor bearing

$

$

Not available

13

Briggs & Stratton 44943

Bearing carrier

$

$

Currently unavailable

14

Briggs & Stratton 75971

Panel shroud

$

$

Currently unavailable

16

Briggs & Stratton 23877D

Brush holder
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 75976

5/16"-24 x 6-3/4" long Rotor bolt

$

$

Currently unavailable

19

Briggs & Stratton 50190

Fan retainer washer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 44357

Cooling fan cover
(Superseded to 44357GS)

$17.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 44331

Cooling fan

$

$

Not available

22

Briggs & Stratton 77701

Generator support

$

$

Not available
