9216-1 - Generac 5,000 Watt Portable Generator Control Panel (10/95) Parts Diagram

5,000 Watt Portable Generator

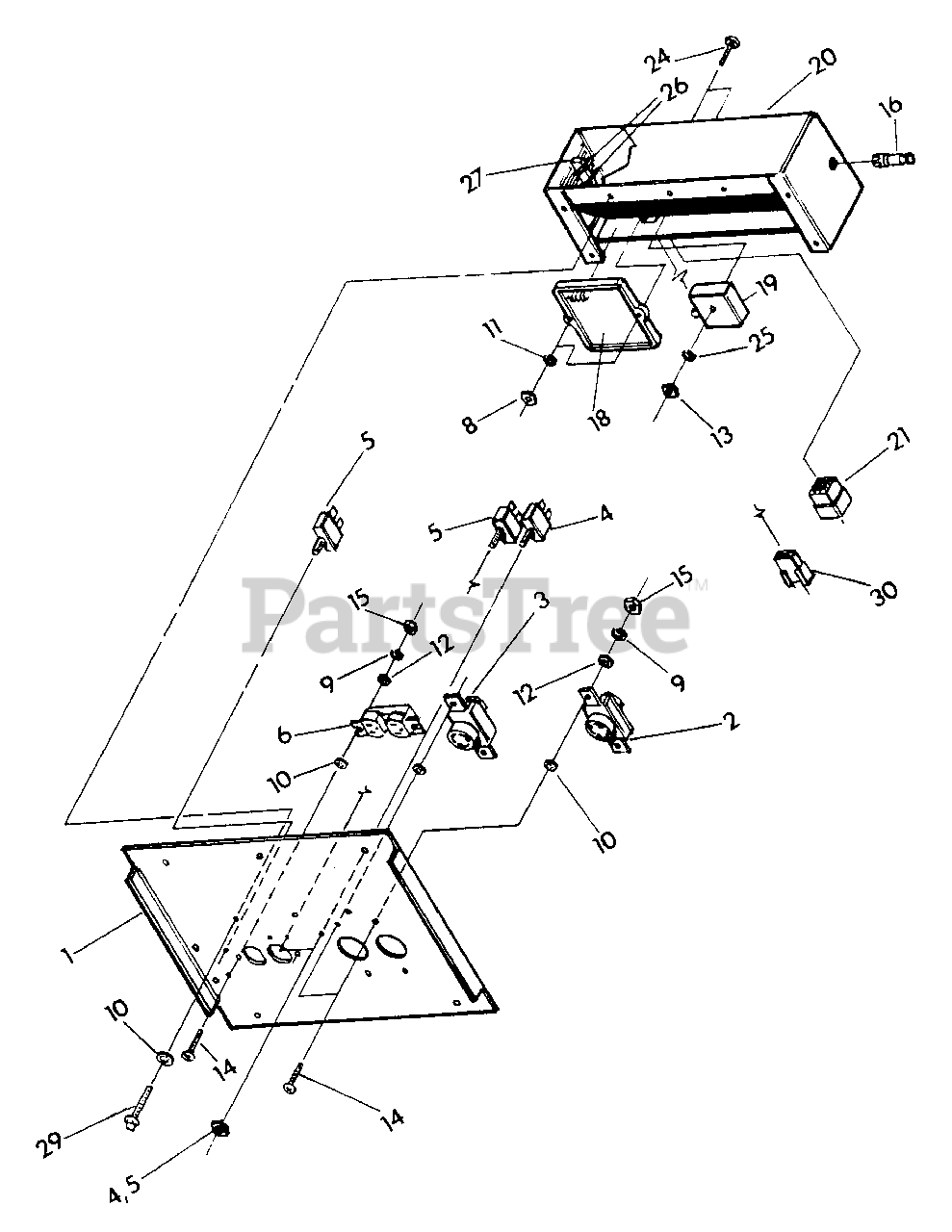

Control Panel (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 83307

Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 68867

120/240 volts, 20 amp Twistlock Outlet
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 68868

120 volts, 30 amp Twistlock Outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

4

75207A

30 amp Circuit Breaker

$

$

Not available

5

Briggs & Stratton 75207

20 amp Circuit Breaker
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

6

Briggs & Stratton 68759

120 volts, 20 amp Duplex Outlet
(Superseded to 68759GS)

$24.99

$

In Stock, Qty 8

0

7

Briggs & Stratton 83398

Control Panel Silkscreen

$

$

Currently unavailable

8

Briggs & Stratton 22158

No. 10-32 Hex Nut
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

10

Briggs & Stratton 23365

No. 8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22152

No. 20 Lock Washer
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22188

No. 6-32 Hex nut

$

$

Currently unavailable

14

Briggs & Stratton 75475

M4-0.7 x 10mm Phillips Pan Head Machine Screw

$

$

Not available

15

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 34303

Starting Switch

$

$

Currently unavailable

17

Briggs & Stratton 27565

P-248 Electric Tape, 40mm long

$

$

Currently unavailable

18

Briggs & Stratton 74074

AC Voltage Regulator

$

$

Currently unavailable

19

Briggs & Stratton 40366

120 volts, AC Relay
(Superseded to 7040604YP)

$18.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 83628

Control Panel Back

$

$

Currently unavailable

21

Briggs & Stratton 63993

9-pin Connector

$

$

Currently unavailable

22

Briggs & Stratton 74094

1/4-inch "Y" Connector
(Superseded to 74094GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 37554A

No. 3 Sleeving, 1000mm long

$

$

Currently unavailable

24

Briggs & Stratton 33534

No. 10-32 x 1-1/8" Pan Head Machine Screw

$

$

Currently unavailable

25

Briggs & Stratton 22155

No. 6 Lock Washer
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 28739A

Tie Wrap
(Superseded to 28739AGS)

$1.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 77244

Field Boost Assembly

$

$

Currently unavailable

28

Briggs & Stratton 74655

3/16-inch "Y" Connector

$

$

Currently unavailable

29

Briggs & Stratton 63036

No. 8-1/4" Crimptite Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 22694

Black Receptacle Housing
(Superseded to 22694GS)

$5.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 66855

Rivet

$

$

Currently unavailable
