9215-0 - Generac 5,000 Watt Portable Generator Receptacle Panel No. 71917 Parts Diagram

5,000 Watt Portable Generator

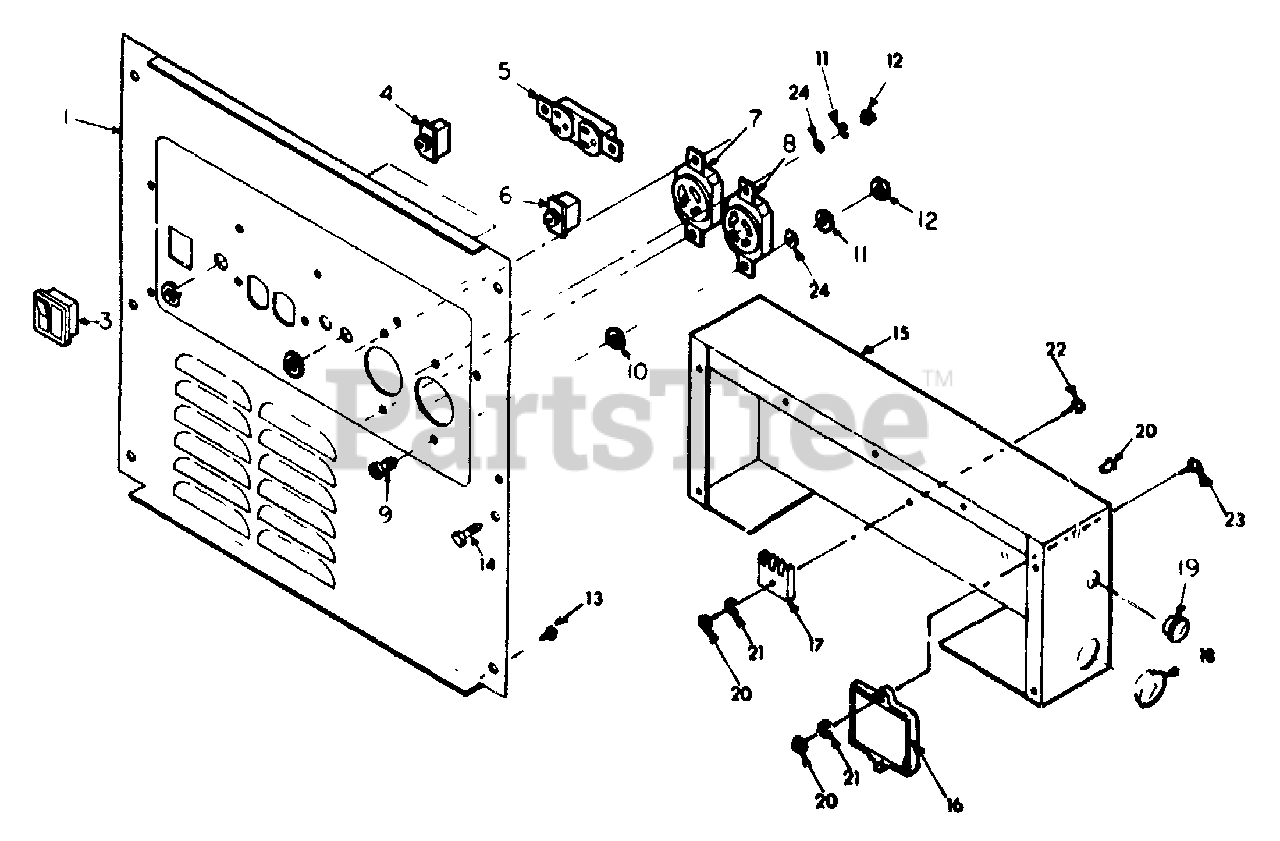

Receptacle Panel No. 71917 Parts Diagram

  • Title

1

Briggs & Stratton 70774B

RECEPTACLE PANEL(MODEL 9214-0)

$

$

Currently unavailable

1

Briggs & Stratton 70776C

RECEPTACLE PANEL(MODEL 9215-C)

$

$

Currently unavailable

3

Briggs & Stratton 66817

RUN/STOP SWITCH & AC ON LAMP
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66819

CIRCUIT BREAKER-20 AMP

$

$

Currently unavailable

5

Briggs & Stratton 68759

RECEPTACLE-120 VOLTS DUPLEX TYPE
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

6

Briggs & Stratton 60824

CIRCUIT BREAKER-30 AMP

$

$

Not available

7

Briggs & Stratton 68868

RECEPTACLE-120 VOLTS, 30 AMP
(Superseded to 705932)

Note: RECEPTACLE IS A NEMA L5-30R

$37.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 68867

RECEPTACLE-120/240 VOLTS, 20 AMP
(Superseded to 68867GS)

Note: RECEPTACLE IS A NEMA L14-20R

$46.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 36917

SCREW-NO.8-32 x 3/8"
(Superseded to 797483)

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 23365

SERRATED WASHER-NO. 8
(Superseded to 5023365)

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$462.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22264

LOCK WASHER, NO.8

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Not available

12

Briggs & Stratton 22471

HEX NUT-NO. 8-32
(Superseded to 22471GS)

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 69254

SCREW(CRIMPTITE)-1/4"-20 x 1/2"

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Currently unavailable

14

Briggs & Stratton 63036

SCREW(CRIMPTITE)-NO. 8-18 x 1/4"
(Superseded to 63036GS)

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 78966

BACK PANEL

$

$

Currently unavailable

16

Briggs & Stratton 74074

VOLTAGE REGULATOR

$

$

Currently unavailable

17

Briggs & Stratton 65795

BATTERY CHARGER RECTIFIER
(Superseded to 65795GS)

$

$

Not available

18

Briggs & Stratton 58821

PLUG, BUTTON 1.75

$

$

Currently unavailable

19

Briggs & Stratton 65511

PLUG, BUTTON-1/2" DIA.

$

$

Currently unavailable

20

Briggs & Stratton 22158

NUT-NO. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

21

Briggs & Stratton 22152

LOCK WASHER-NO. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 36935

P.P.HD. MACH. SCR.-#10-32 x .75

$

$

Not available

23

Briggs & Stratton 33534

P.P.HD. MACH. SCR.-#10-32 x 1.125

$

$

Currently unavailable

24

Briggs & Stratton 31850

FLAT WASHER-NO. 8

$

$

Currently unavailable

Briggs & Stratton 68799

RECEPTACLE COVER

Note: NOT SHOWN

$

$

Currently unavailable

Briggs & Stratton 37806

CONNECTOR PLUG-120 VOLTS, 30 AMP
(Superseded to 100523GS)

Note: USE NEMA L5-30P CONNECTOR PLUG

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

CONNECTOR PLUG-120/240 VOLTS, 20 AMP
(Superseded to 100522GS)

Note: USE NEMA L14-20P CONNECTOR PLUG

$34.99

$

Usually ships in 2-12 days

0
