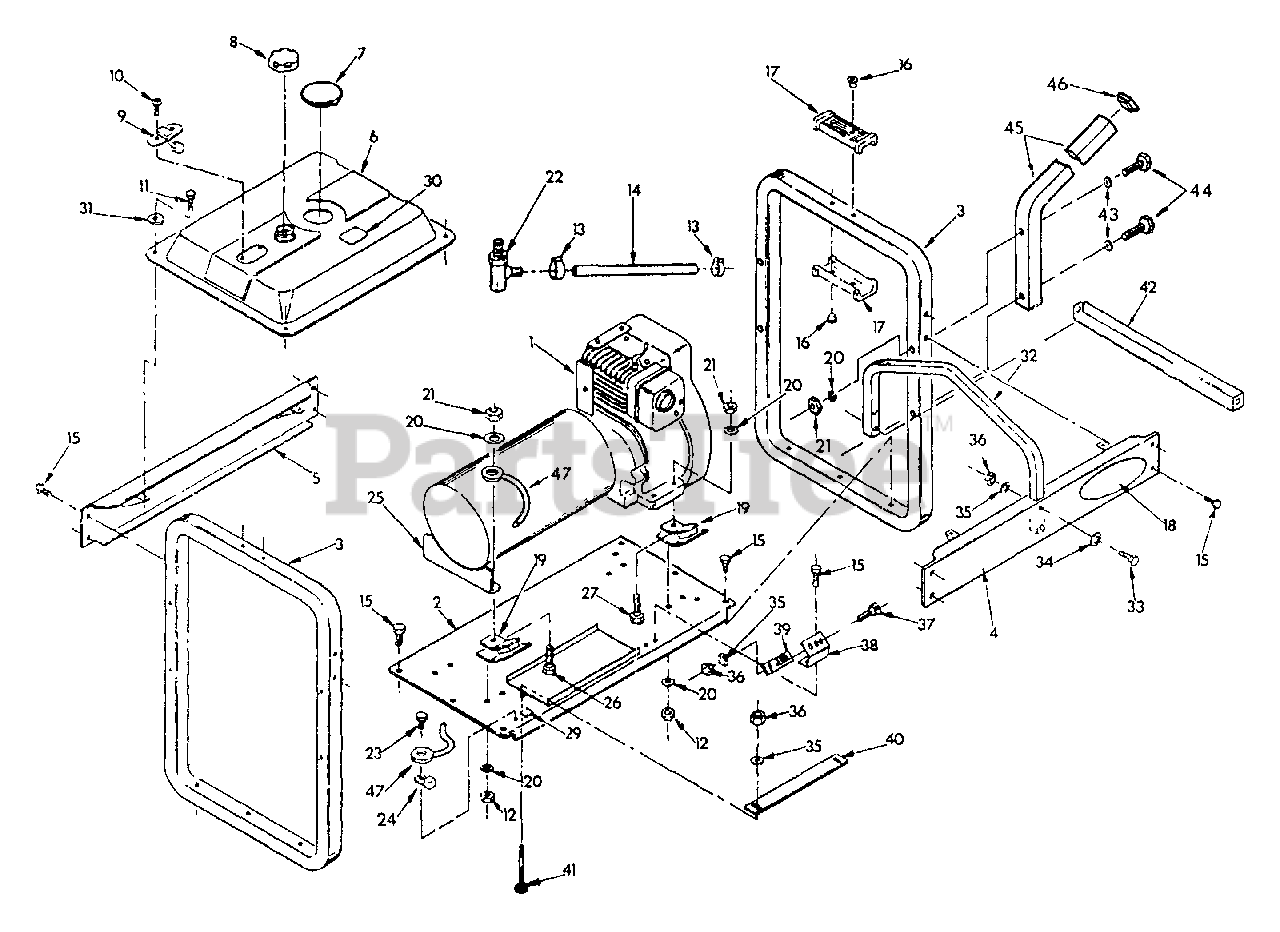

9215-0 - Generac 5,000 Watt Portable Generator Engine & Cradle No. 72514 Parts Diagram

5,000 Watt Portable Generator

Engine & Cradle No. 72514 Parts Diagram

  • Title

1

Briggs & Stratton 71749

ENGINE -BRIGGS STRATTON

Note: MODEL 9215-0 USES 11 HP ELECTRIC START ENGINE; PURCHASE ENGINE PARTS FROM ENGINE MANUFACTURER.

$

$

Currently unavailable

2

Briggs & Stratton 70643C

MOUNTING BASE

$

$

Currently unavailable

3

Briggs & Stratton 70603A

CRADLE END LOOP

$

$

Currently unavailable

4

Briggs & Stratton 70776B

FUEL TANK SUPPORT-RH

$

$

Currently unavailable

5

Briggs & Stratton 70762B

FUEL TANK SUPPORT-LH

$

$

Currently unavailable

6

Briggs & Stratton 73715

FUEL TANK-U.S. GAL.
(Superseded to 7073715YP)

$

$

Not available

7

Briggs & Stratton 64680B

SPARK PLUG ACCESS COVER
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 69658

FUEL TANK CAP

$

$

Currently unavailable

9

Briggs & Stratton 66391B

FUEL LEVEL GAUGE

$

$

Not available

10

Briggs & Stratton 52749

SCREW-M5-0.80 x 12MM

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Currently unavailable

11

Briggs & Stratton 36933

SCREW-NO. 10-32 x 3/8

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Not available

12

Briggs & Stratton 45771

HEX NUT-M8-1.25

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Not available

13

Briggs & Stratton 48031C

HOSE CLAMP-1/4"

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Not available

14

Briggs & Stratton 30340

HOSE-1/4" I.D. x 18" LONG

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$3155.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 58442

SCREW-(CRIMPTITE)-1/4"-20 x 1/2"

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Currently unavailable

16

Briggs & Stratton 66831

RIVET-4MM

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Not available

17

Briggs & Stratton 66450

HANDLE-PLASTIC

$

$

Not available

18

Briggs & Stratton 48506

DECAL-"GENERAC" LOGO

$

$

Currently unavailable

19

Briggs & Stratton 70642

VIBRATION MOUNT
(Superseded to 70642GS)

Note: QUANTITY OF 6 REQ'D FOR MODELS 9215-0; Contact Generac for quantity required

$31.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 22129

LOCK WASHER-5/16"
(Superseded to 22129GS)

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 22259

HEX NUT-5/16"-18
(Superseded to 22259GS)

Note: MODEL 9215-0 USES 10 NUTS. Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 27734

FUEL SHUT-OFF VALVE
(Superseded to 27734GS)

$

$

Not available

23

Briggs & Stratton 24489

SCREW(TAPTITE)-NO. 10-32 x 3/8"

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Currently unavailable

24

Briggs & Stratton 25433

GROUNDING LUG

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Not available

25

Briggs & Stratton 70634A

GENERATOR REAR SUPPORT

$

$

Currently unavailable

26

Briggs & Stratton 64183

PAN HEADSCREW-5/16"-18 x 3/4"

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Currently unavailable

27

Briggs & Stratton 71752

PAN HEAD SCREW

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY; FOR MODEL 9215-0 USE FOUR 5/16"-18 x 2" PAN HEAD SCREWS.

$

$

Currently unavailable

30

Briggs & Stratton 77817

DECAL(FUEL CAUTION)

$

$

Currently unavailable

31

Briggs & Stratton 22152

LOCK WASHER-NO. 10
(Superseded to 5022152)

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$32.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 70756B

LIFTING EYE TUBE

$

$

Currently unavailable

33

Briggs & Stratton 22203

SCREW-1/4"-20 x 1-1/4"
(Superseded to 22203GS)

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$2.49

$

Usually ships in 2-12 days

0

34

22473

FLAT WASHER-1/4"

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Not available

35

Briggs & Stratton 22097

LOCK WASHER-1/4"
(Superseded to 5022097)

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 22127

HEX NUT-1/4"-20

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$

$

Not available

37

Briggs & Stratton 22287

SCREW-1/4"-20 x 3/4"
(Superseded to 22287GS)

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 65121

STARTER CONTACTOR BRACKET

$

$

Currently unavailable

39

Briggs & Stratton 53030

STARTER CONTACTOR(INCLUDES CABLES)
(Superseded to 53030GS)

$57.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 44951

BATTERY RETAINING BRACKET

$

$

Currently unavailable

41

Briggs & Stratton 45000

SCREW-1/4"-20 x 7"
(Superseded to 45000GS)

Note: COMMON HARDWARE ITEM, AVAILABLE LOCALLY

$11.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 71762

LIFTING EYE BRACE

$221.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22145

FLAT WASHER-5/16" (MB)

$

$

Not available

44

Briggs & Stratton 22532

CAPSCREW, HEX HEAD-5/16"-1/8 x 2-1/2"

$

$

Currently unavailable

45

Briggs & Stratton 70760

TRANSPORT HANDLES

$

$

Currently unavailable

46

Briggs & Stratton 71899

CAP, PLUG-3/4"SQ.

$

$

Currently unavailable
