9214-0 - Generac 4,000 Watt Portable Generator Generator No. 71918 Parts Diagram

4,000 Watt Portable Generator

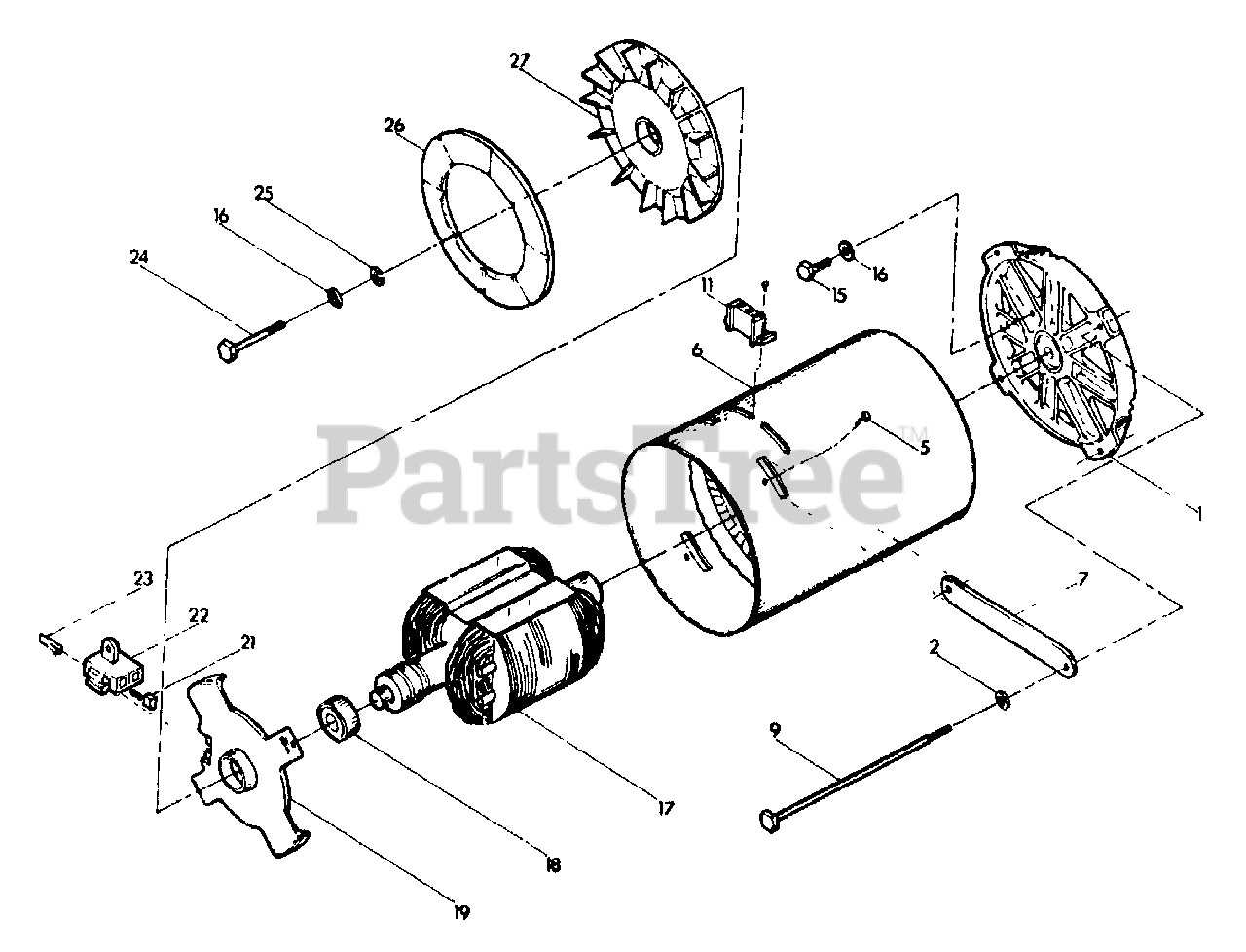

Generator No. 71918 Parts Diagram

  • Title

1

Briggs & Stratton 43873

Engine Adapter Housing

$

$

Currently unavailable

2

Briggs & Stratton 22097

1/4" Lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 24489

No. 10-32 x 3/8" Screw

$

$

Currently unavailable

6

Briggs & Stratton 68749E

Stator Assembly

$

$

Currently unavailable

7

Briggs & Stratton 44338

Stator Bolt Bar

$

$

Currently unavailable

9

Briggs & Stratton 44395B

Stator Bolt

$

$

Currently unavailable

11

Bridge Rectifier

$

$

Not available

15

Briggs & Stratton 23152

5/16"-24 x 3/4" Capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22237

5/16" Lockwasher

$

$

Not available

17

Briggs & Stratton 68748

Rotor Assembly

$

$

Currently unavailable

18

Briggs & Stratton 24049

Rotor Bearing

$

$

Not available

19

Briggs & Stratton 44943

Bearing Carrier

$

$

Currently unavailable

21

Briggs & Stratton A24044A

Brush
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 23877D

Brush Holder
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 25105

No. 6-32 x 1/4" Screw
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 25254

Rotor Bolt
(Superseded to 5025254)

$2.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 50190

Fan Retaining Washer
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 44357

Cooling Fan Cover
(Superseded to 44357GS)

$17.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 44331

Cooling Fan

$

$

Not available
