921334 - Ariens Platinum 30" SHO Snow Blower, Ariens AX 369cc EFI engine (SN: 000101 & Above) Dash - EFI (Continued) Parts Diagram

Platinum 30" SHO Snow Blower, Ariens AX 369cc EFI engine

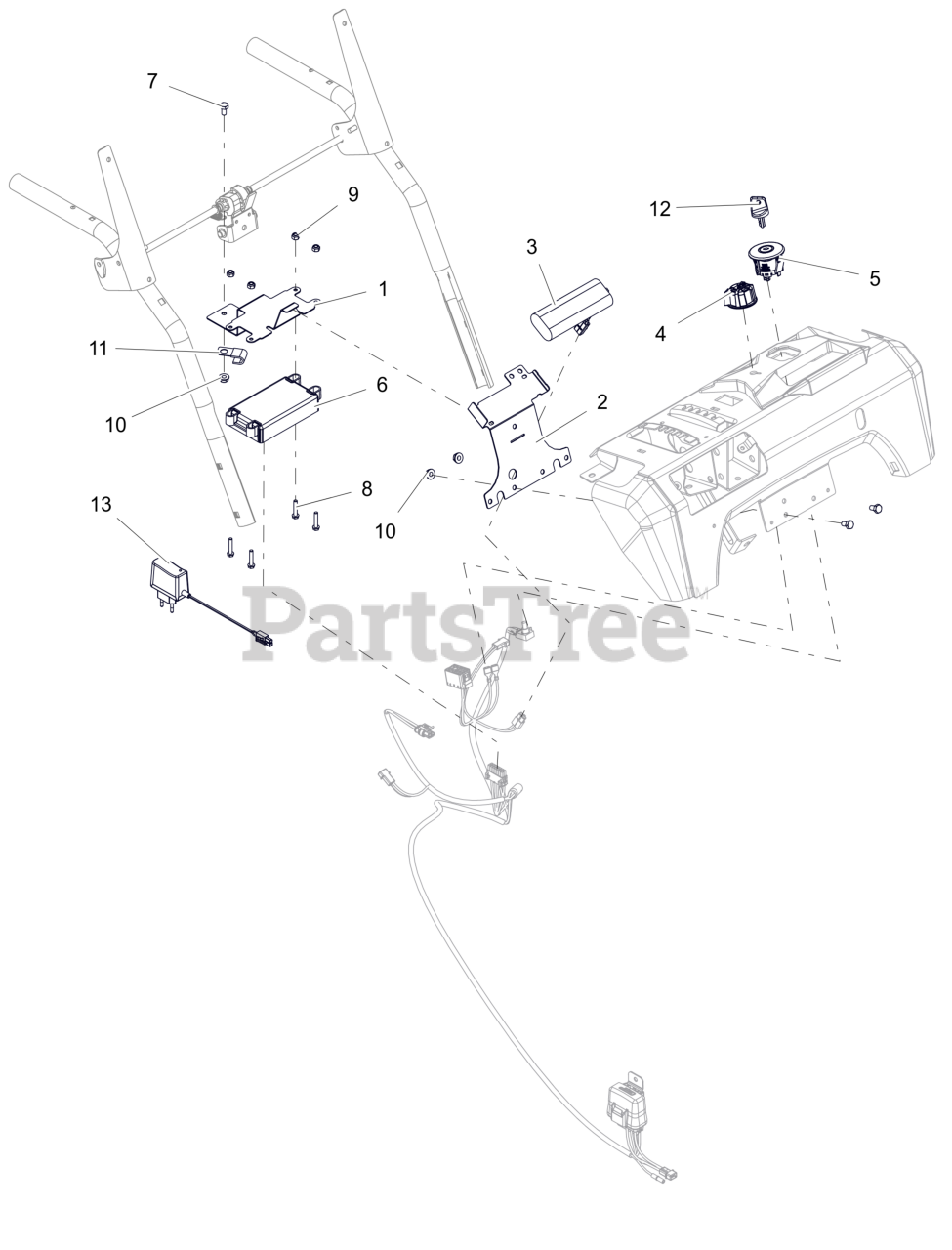

Dash - EFI (Continued) Parts Diagram

  • Title

1

Ariens 04996651

BRACKET, ENGINE EFI-LCT LOWER

$18.99

$

Usually ships in 4-12 days

0

2

Ariens 04996751

BRACKET, ENGINE EFI-LCT UPPER

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 05076500

BATTERY, SNOW EFI - 7.2V

$77.99

$

Usually ships in 4-12 days

0

4

Ariens 07500511

KNOB- CONTROL EFI

$9.99

$

Usually ships in 4-12 days

0

5

Ariens 09395100

IGNITION SWITCH ASM - 2 POS

$14.99

$

Usually ships in 4-12 days

0

6

Ariens 20003128

ECU SERVICE LCT/CSI - 369CC

$284.99

$

Usually ships in 4-12 days

0

7

Ariens 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05901838

BLT, HWH #10-24X1.00 ZCC

$1.99

$

Usually ships in 4-12 days

0

9

Ariens 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, only 4 left!

0

12

Ariens 09395101

KEY- IGNITION

$7.99

$

Usually ships in 4-12 days

0

13

Ariens 05079501

CHARGER, BATTERY-EFI 7.2V (EU)

$51.99

$

Usually ships in 4-12 days

0
