921333 - Ariens Platinum 24" SHO Snow Blower, Ariens AX 369cc EFI engine (SN: 000101 & Above) Dash - EFI Parts Diagram

Platinum 24" SHO Snow Blower, Ariens AX 369cc EFI engine

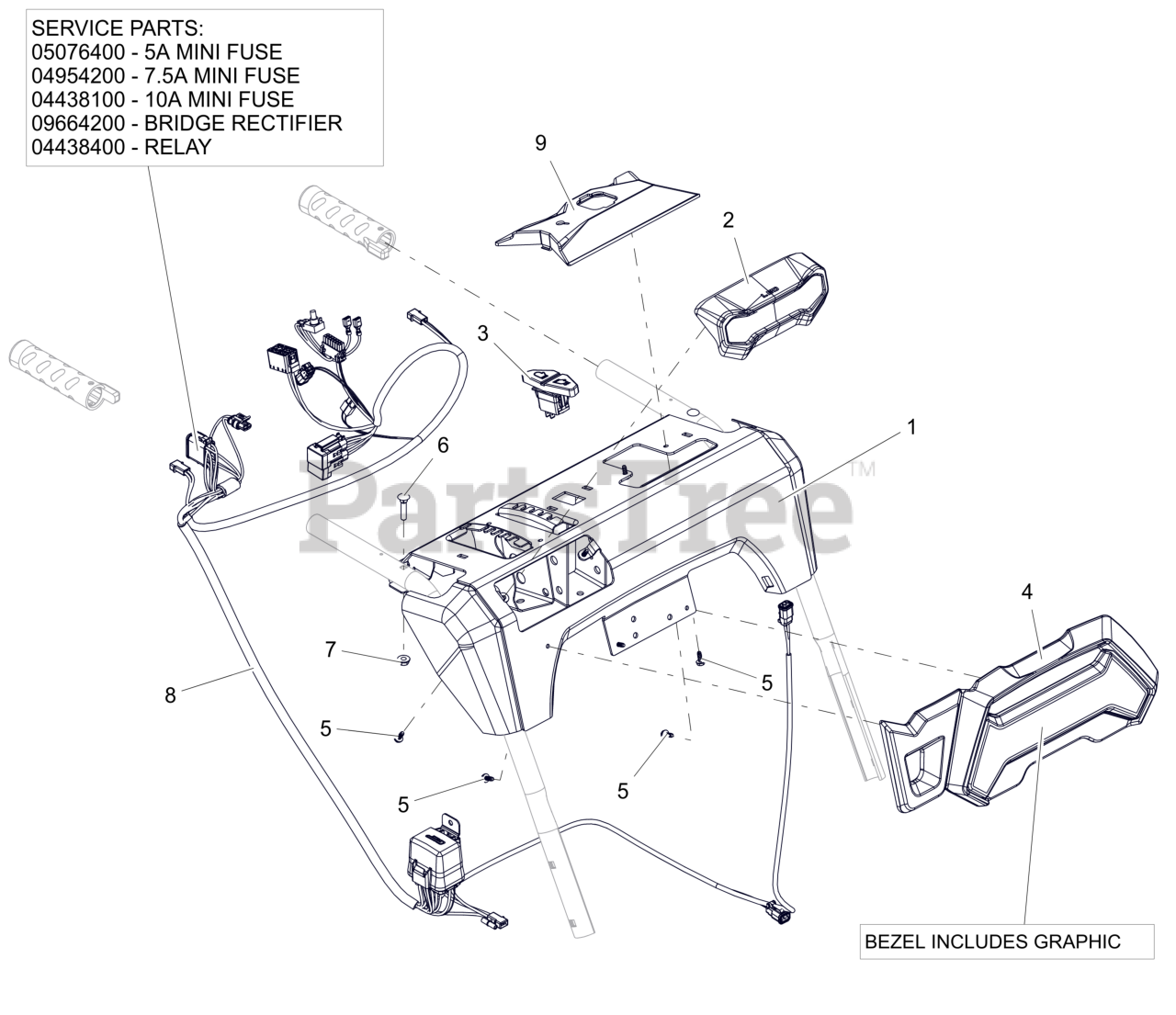

Dash - EFI Parts Diagram

  • Title

1

Ariens 52112300

PANEL, CONTROL-ECHUTE EFI W/SAFETY DECALS

$219.99

$

Usually ships in 4-12 days

0

2

Ariens 09382600

HEADLIGHT ASM- LED

$64.99

$

Usually ships in 4-12 days

0

3

Ariens 09395000

SWITCH- ROCKER SPST-ON/OFF

$19.99

$

In Stock, Qty 6

0

4

Ariens 09467700

BEZEL- LARGE - PLATINUM

$28.99

$

Usually ships in 4-12 days

0

5

Ariens 06100239

SCR, PLASTIC #10X.50

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 1 left!

0

7

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

8

Ariens 09391600

HARNESS-WIRE- LT HG EFI ECHUTE

$284.99

$

Usually ships in 4-12 days

0

8

Ariens 05076400

FUSE, 5 AMP MINI-ATC

Note: Component Service Part

$

$

Not available

8

Ariens 04954200

FUSE, 7.5 AMP MINI-ATC

Note: Component Service Part

$

$

Not available

8

Ariens 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

8

Ariens 09664200

RECTIFIER, BRIDGE

Note: Component Service Part

$45.99

$

Usually ships in 4-12 days

0

8

Ariens 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Component Service Part

$19.99

$

In Stock, only 1 left!

0

9

Ariens 52618600

BEZEL, OPERATOR EFI DECAL

$

$

Not available
