921332 - Ariens Platinum 28" SHO RapidTrak Snow Blower, Ariens AX 369cc EFI (SN: 180000 & Above) Dash - Track EFI Parts Diagram

Platinum 28" SHO RapidTrak Snow Blower, Ariens AX 369cc EFI

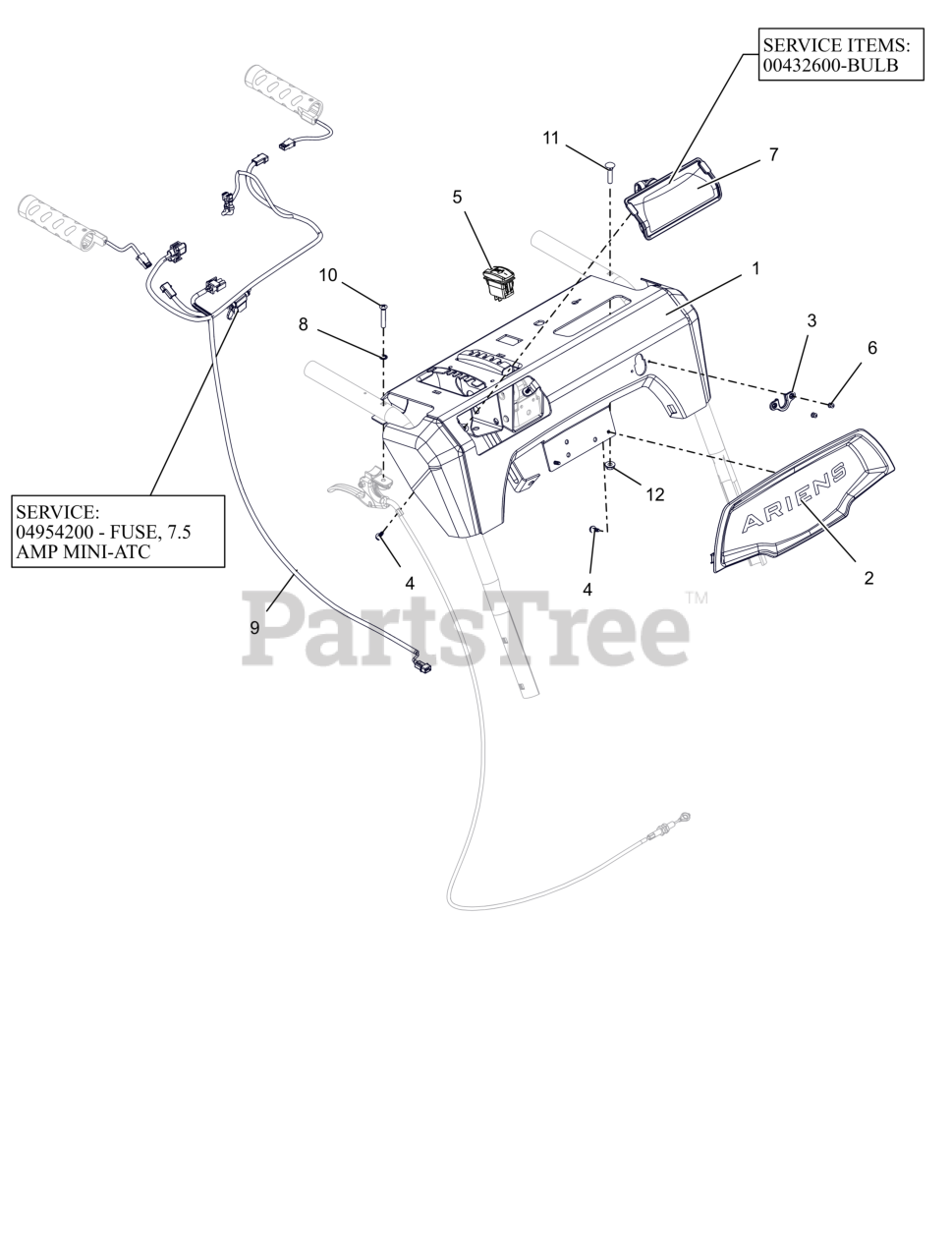

Dash - Track EFI Parts Diagram

  • Title

1

Ariens 52110900

PANEL, CONTROL-EFI QT TK W/DECALS

$

$

Currently unavailable

2

Ariens 04982200

BEZEL, DASH - ARIENS LG DASH

$27.99

$

Usually ships in 4-12 days

0

3

Ariens 04762800

GROMMET, CABLE, QUICK TURN 2

$

$

Not available

4

Ariens 06100239

SCR, PLASTIC #10X.50

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 04836700

SWITCH,ROCKER SPST-ON/OFF
(Superseded to 09395000)

$19.99

$

In Stock, Qty 6

0

6

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$

$

Not available

7

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

$42.99

$

In Stock, Qty 9

0

7

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

$14.99

$

In Stock, Qty 20+

0

8

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

9

Ariens 05071800

HARNESS,LIGHT&WARMER - EFI

$56.99

$

Usually ships in 4-12 days

0

10

Ariens 06100236

SCR,OVAL .25-20X1.50 ZCC

$3.99

$

In Stock, only 4 left!

0

11

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 2 left!

0

12

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0
