921329 - Ariens Platinum 28" SHO RapidTrak Snow Blower (SN: 100000 & Above) Track Angle Adjuster Parts Diagram

Platinum 28" SHO RapidTrak Snow Blower

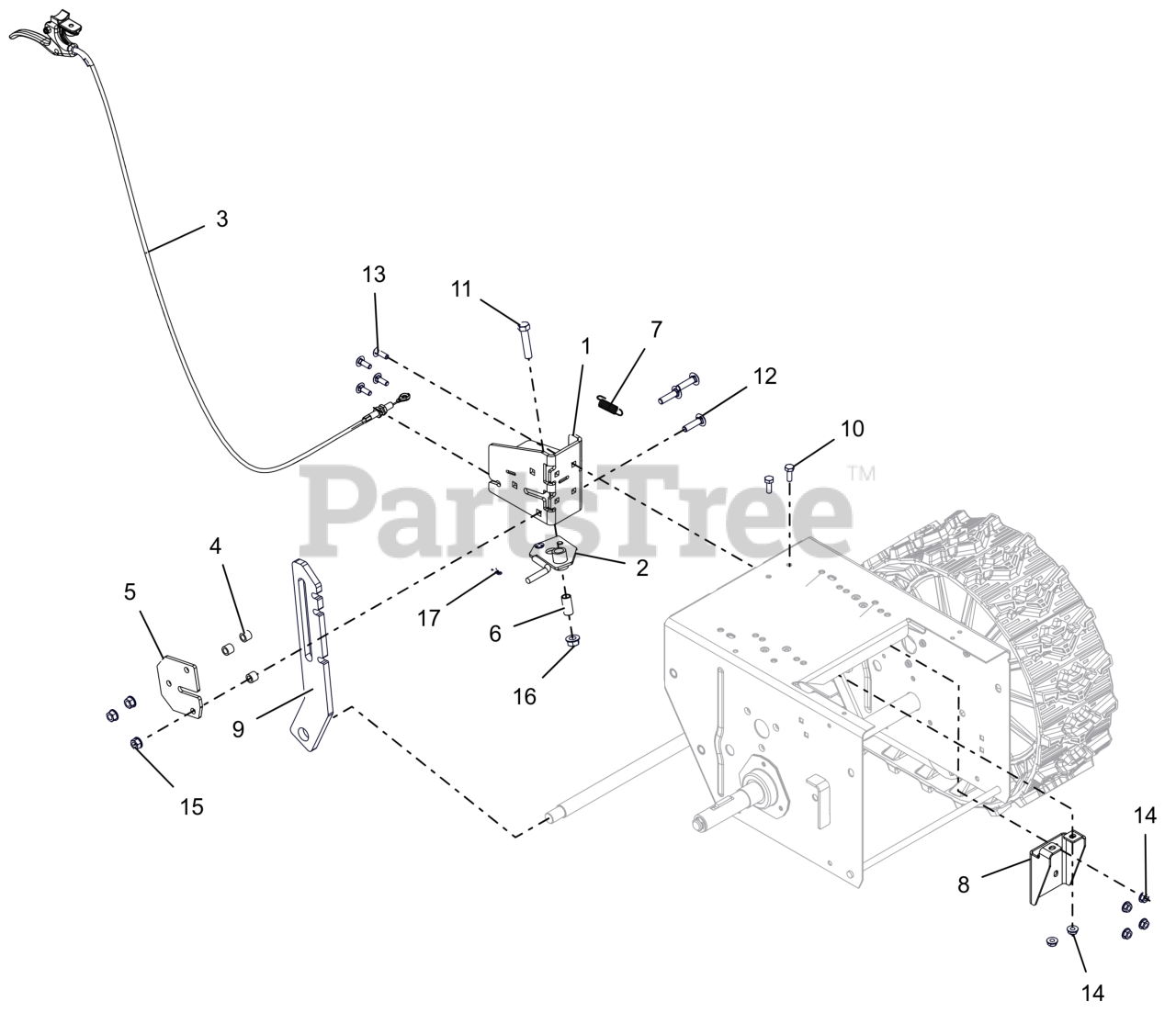

Track Angle Adjuster Parts Diagram

  • Title

1

Ariens 04797851

BRACKET,HEIGHT ADJUSTER-DELUXE

$51.99

$

Usually ships in 4-12 days

0

2

Ariens 04999500

LOCK,HEIGHT ADJUSTER TRIGGER

$34.99

$

Usually ships in 4-12 days

0

3

Ariens 06900510

CABLE, TRACK REMOTE

$59.99

$

Usually ships in 4-12 days

0

4

Ariens 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, Qty 10

0

5

Ariens 03294151

PLATE, HEIGHT ADJUSTER

$

$

Not available

6

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

7

Ariens 08300103

SPRING-EXT .047 X .438 X 1.85

$2.49

$

In Stock, Qty 20+

0

8

Ariens 04993851

BRACKET, REINFORCEMENT

$

$

Not available

9

Ariens 05192151

ADJUSTER, HEIGHT-DELUXE BWT

$17.99

$

Usually ships in 4-12 days

0

10

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06200310

BLT, RHSSN.31-18X1.25 G5 ZCC

$1.49

$

In Stock, Qty 5

0

13

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, Qty 15

0
