921329 - Ariens Platinum 28" SHO RapidTrak Snow Blower (SN: 100000 & Above) Friction Drive - Track CE Parts Diagram

Platinum 28" SHO RapidTrak Snow Blower

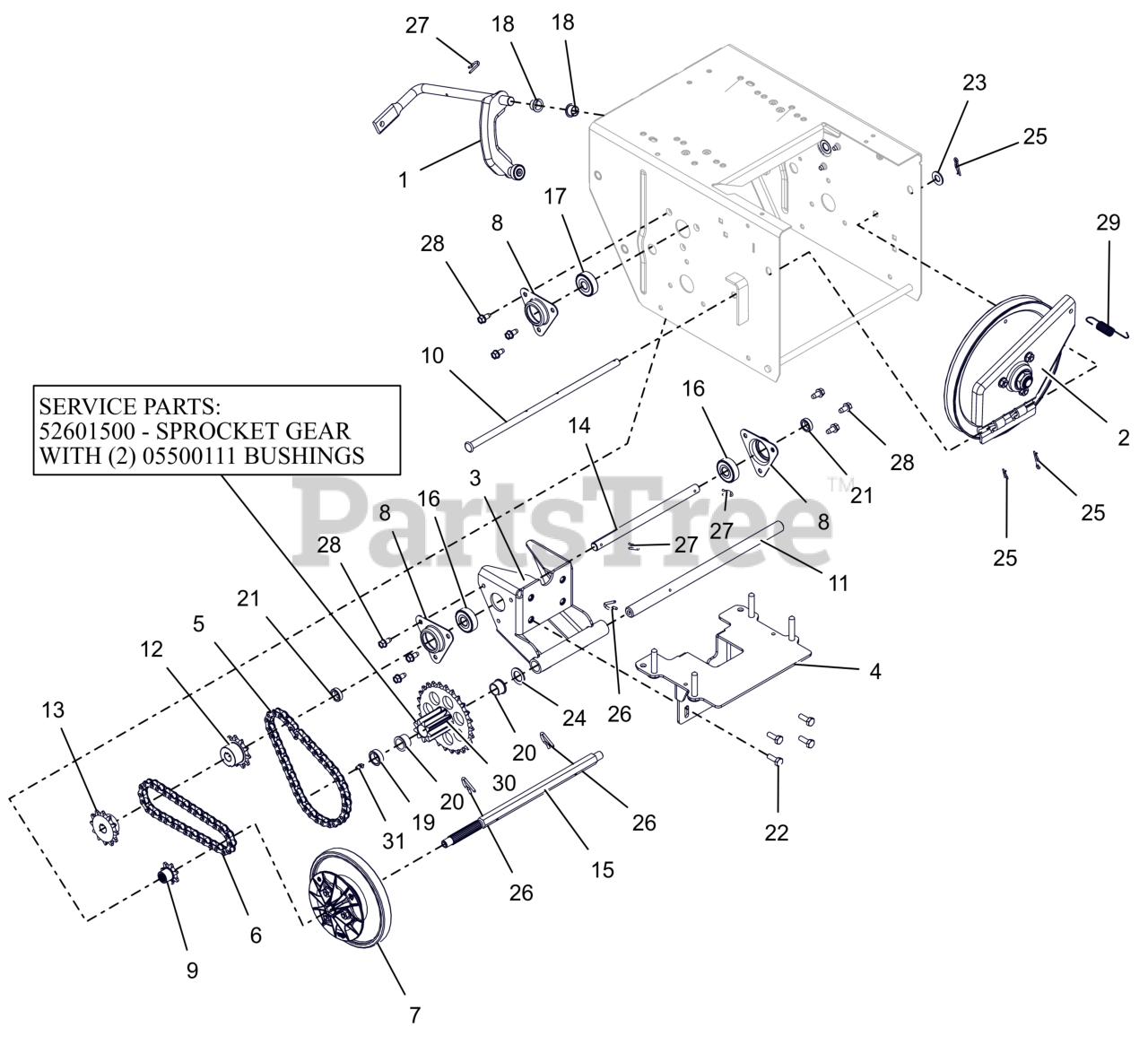

Friction Drive - Track CE Parts Diagram

  • Title

1

Ariens 04993700

ARM, SHIFT - ASSEMBLY

$41.99

$

Usually ships in 4-12 days

0

2

Ariens 52602700

PLATE, SWING ASSEMBLY-DEEP

$129.99

$

In Stock, Qty 5

0

3

Ariens 05191800

WLDMT, TRIPLE REDUCTION BRKT

$66.99

$

Usually ships in 4-12 days

0

4

Ariens 05267700

STRAP, TRIPLE REDUCTION MEDIUM

$

$

Not available

5

Ariens 05191900

CHAIN, ROLLER - #41X36 PITCHES

$

$

Not available

6

Ariens 02466200

CHAIN - #41, 32 PITCHES

$6.99

$

In Stock, Qty 13

0

7

Ariens 04861600

DISC, FRICTION DRIVE-ASSEMBLY

$43.99

$

In Stock, Qty 20+

0

8

Ariens 00383000

FLANGE, BEARING

$12.99

$

In Stock, Qty 17

0

9

Ariens 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$

$

Not available

10

Ariens 04991300

PIN, PIVOT
(Superseded to 52111400)

$

$

Not available

11

Ariens 05004900

SHAFT, PINION-HARDENED

$37.99

$

Usually ships in 4-12 days

0

12

Ariens 05102300

SPROCKET, 11 TOOTH

$35.99

$

Usually ships in 4-12 days

0

13

Ariens 05102700

SPROCKET, 12 TOOTH

$35.99

$

Usually ships in 4-12 days

0

14

Ariens 05153200

SHAFT, REDUCTION HEAT TREATED

$

$

Not available

15

Ariens 05199800

SHAFT, HEX HEAT TREATED SPLINE

$

$

Not available

16

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, only 4 left!

0

17

Ariens 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

18

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

19

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, Qty 20+

0

20

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$1.49

$

In Stock, Qty 20+

0

21

Ariens 05501326

SPCR, SLV

$9.99

$

Usually ships in 4-12 days

0

22

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06401117

WSHR, FLT .630X1.005X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

27

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

28

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

29

Ariens 08300019

SG-TENS .048X.50X2.8

$5.99

$

In Stock, Qty 17

0

30

Ariens 00190600

PINION & SPROCKET

$34.99

$

Usually ships in 4-12 days

0

30

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

Note: Component Service Assembly

$45.99

$

In Stock, Qty 18

0

31

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 20+

0
