921328 - Ariens Deluxe 28" Track Snow Blower, Ariens AX 291cc engine (SN: 000101 & Above) Engine, Frame And Belt Drive - Track - AX291 CE Parts Diagram

Deluxe 28" Track Snow Blower, Ariens AX 291cc engine

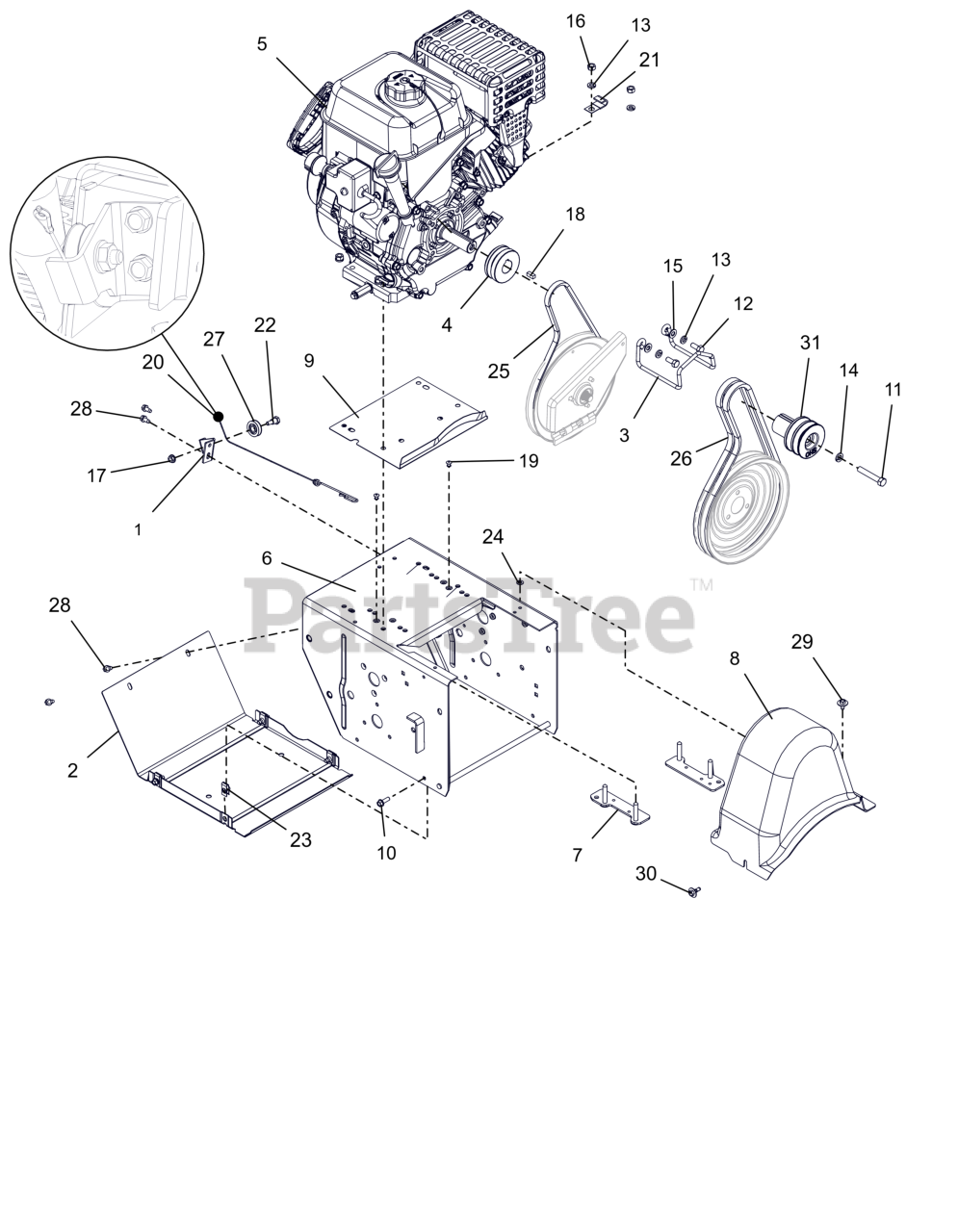

Engine, Frame And Belt Drive - Track - AX291 CE Parts Diagram

  • Title

1

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$4.99

$

Usually ships in 4-12 days

0

2

Ariens 00375159

COVER, BOTTOM

$82.99

$

Usually ships in 4-12 days

0

3

Ariens 02968300

FINGER, BELT
(Superseded to 05273200)

$18.99

$

Usually ships in 4-12 days

0

4

Ariens 04503300

SHEAVE, DRIVE

$205.99

$

Usually ships in 4-12 days

0

5

Ariens 08201337

ENGINE, ARIENS AX291 240V/60W

$

$

Currently unavailable

6

Ariens 04984659

FRAME, MAIN-DELUXE(WELDMENT)
(Superseded to 05250559)

$179.99

$

Usually ships in 4-12 days

0

7

Ariens 04999700

STRAP, ENGINE-MEDIUM BLOCK

$12.99

$

Usually ships in 4-12 days

0

8

Ariens 04989100

COVER, BELT-LARGE

$21.99

$

In Stock, only 2 left!

0

9

Ariens 04990851

BAFFLE, WATER - LARGE BLOCK

$16.99

$

Usually ships in 4-12 days

0

10

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 13

0

11

Ariens 05902006

BLT, HEX .38-24X2.25 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 15

0

14

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06500938

NUT, HEX .312-18 ZCC

$0.99

$

In Stock, Qty 10

0

17

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, only 2 left!

0

19

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, only 3 left!

0

20

Ariens 06900503

CABLE, LOWER TRACTION,SS & PRO

$17.99

$

In Stock, only 1 left!

0

21

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, only 4 left!

0

22

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, Qty 5

0

23

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

24

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

25

Ariens 07200111

V-BELT, 3L-WRAPPED

$23.99

$

In Stock, Qty 20+

0

26

Ariens 07200608

V-BELT, HA-RAW EDGE (SET)

$54.99

$

In Stock, Qty 20+

0

27

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

28

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

29

Ariens 07400138

SCR, TAP .25-20X.50 LG HWH ZCC

$1.49

$

In Stock, only 4 left!

0

30

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 04957500

SHEAVE,ATTACHMENT-SHO 2 GRV

$28.99

$

Usually ships in 4-12 days

0
