921323 - Ariens Deluxe 24" Snow Blower, Ariens AX 254cc engine (SN: 100000 - 179999) Engine Frame and Belt Drive - AX 254 CE Parts Diagram

Deluxe 24" Snow Blower, Ariens AX 254cc engine

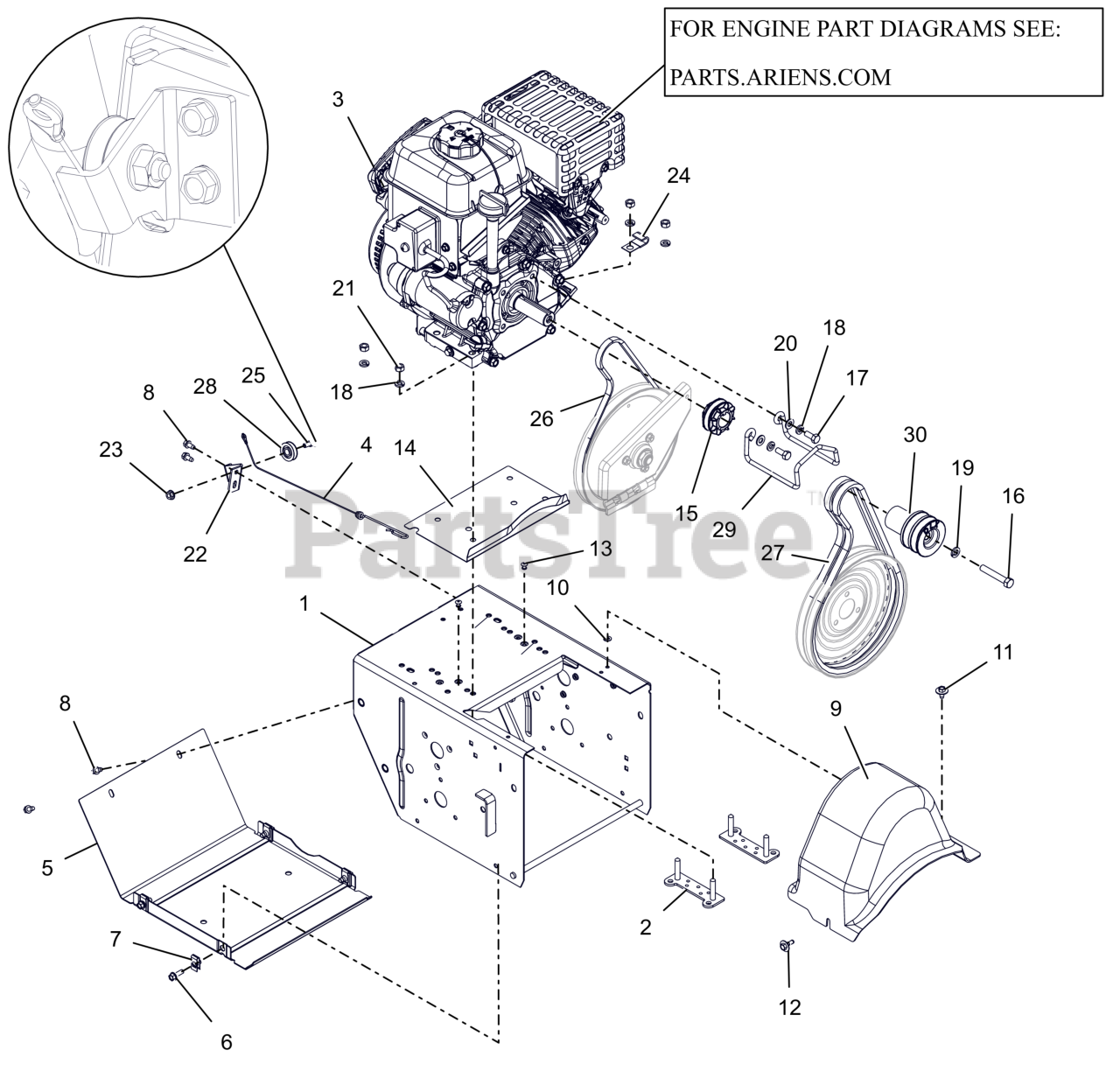

Engine Frame and Belt Drive - AX 254 CE Parts Diagram

  • Title
1

Ariens 05250559

FRAME, MAIN - 14GA DELUXE (ORANGE)

$179.99

$

Usually ships in 4-12 days

0

2

Ariens 04999800

STRAP, BOLT - SMALL ENGINE

$

$

Not available

3

Ariens 08200920

ENGINE, ARIENS AX254 240V/60W

$

$

Not available

4

Ariens 06900503

CABLE, LOWER TRACTION,SS & PRO

$17.99

$

In Stock, Qty 13

0

5

Ariens 00375159

COVER, BOTTOM

$82.99

$

Usually ships in 4-12 days

0

6

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 04989200

COVER, BELT-SMALL

$

$

Not available

10

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

11

Ariens 07400138

SCR, TAP .25-20X.50 LG HWH ZCC

$1.49

$

In Stock, only 4 left!

0

12

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 14

0

14

Ariens 04985351

BAFFLE, WATER-SMALL

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 04409100

SHEAVE, DRIVE

$9.99

$

In Stock, Qty 8

0

16

Ariens 05902006

BLT, HEX .38-24X2.25 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

17

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06500938

NUT, HEX .312-18 ZCC

$0.99

$

In Stock, Qty 10

0

22

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

23

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 7

0

25

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, Qty 5

0

26

Ariens 07200633

V-BELT, 3L-WRAPPED

$17.99

$

In Stock, Qty 20+

0

27

Ariens 07200802

V-BELT, HA-RAW EDGE (SET)

$58.99

$

In Stock, Qty 20+

0

28

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 7

0

29

Ariens 05273200

FINGER, BELT

$18.99

$

In Stock, only 2 left!

0

30

Ariens 05243500

SHEAVE, ATTACHMENT - STANDARD 2 GRV

$40.99

$

Usually ships in 4-12 days

0
