921323 - Ariens Deluxe 24" Snow Blower, Ariens AX 254cc engine (SN: 035000 - 035125) Discharge Chute Controls - Crank Parts Diagram

Deluxe 24" Snow Blower, Ariens AX 254cc engine

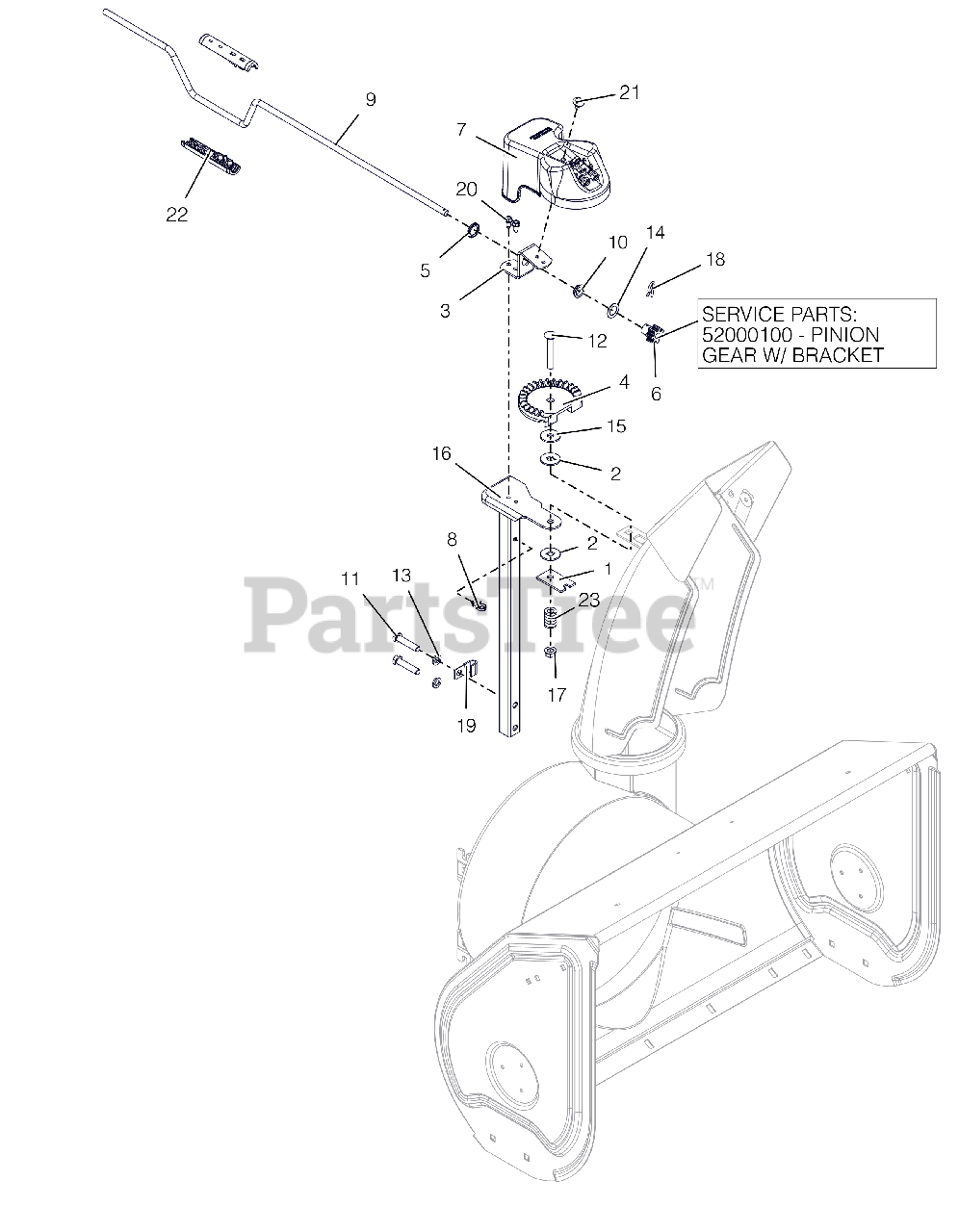

Discharge Chute Controls - Crank Parts Diagram

  • Title
1

Ariens 00398000

PLATE, FRICTION

$7.49

$

In Stock, Qty 10

0

2

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

3

Ariens 01972451

BRACKET, PINION GEAR

$

$

Not available

4

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 16

0

5

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 10

0

6

Ariens 03735300

PINION GEAR - CHUTE

$14.99

$

Usually ships in 4-12 days

0

6

Ariens 52000100

PINION GEAR W/BRACKET

Note: SERVICE PART

$28.99

$

In Stock, Qty 5

0

7

Ariens 04456500

GEAR COVER ASSY LG SHEAR BOLT
(Superseded to 52105600)

$

$

Not available

8

Ariens 04451600

CLIP, CABLE GUIDE

$2.49

$

In Stock, only 1 left!

0

9

Ariens 05000500

ROD,CRANK - LGDASH DLX
(Superseded to 05263100)

$34.99

$

Usually ships in 4-12 days

0

10

Ariens 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, Qty 11

0

11

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 18

0

13

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06400009

WSHR-THRST .625 X 1.0 X .03

$2.49

$

In Stock, Qty 20+

0

15

Ariens 06400917

@WSHR-FL-STL .406X1.25X.10 ZC
(Superseded to 06401021)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 00658351

PEDESTAL, CHUTE - CRANK

$55.99

$

Usually ships in 4-12 days

0

17

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

19

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 5

0

20

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

22

Ariens 07500332

KNOB,CHUTE CRANK-DELUXE

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 17
