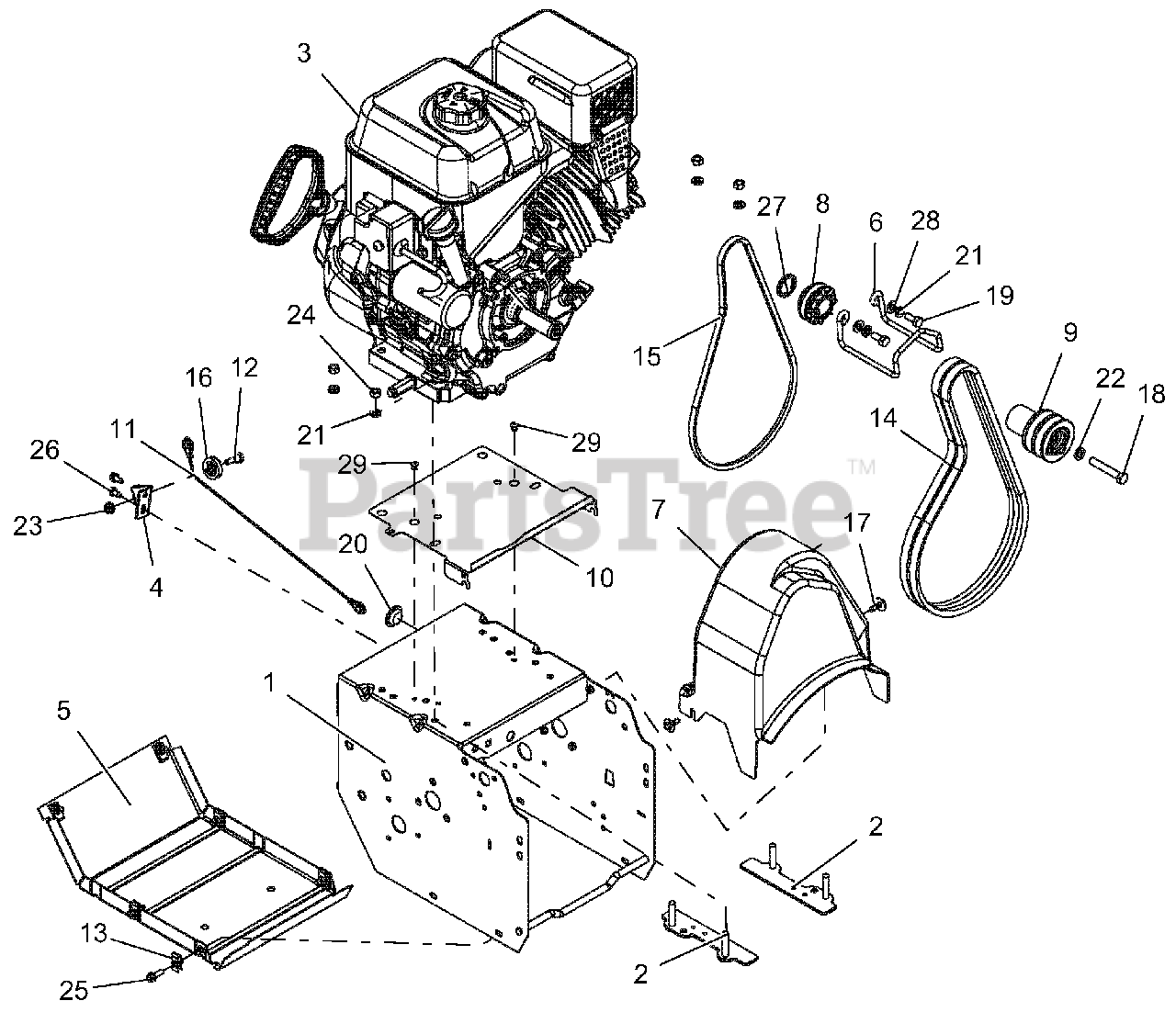

921320 - Ariens Deluxe 30" Snow Blower, Ariens AX 414cc engine (SN: 098000 & Above) Engine, Frame And Belt Drive Parts Diagram

Deluxe 30" Snow Blower, Ariens AX 414cc engine

Engine, Frame And Belt Drive Parts Diagram

  • Title

1

Ariens 04585059

WELDMENT, FRAME - DELUXE 16"

$113.99

$

Usually ships in 4-12 days

0

2

Ariens 04637400

STRAP,ENGINE BOLT,ARIENS LRG

$17.99

$

Usually ships in 4-12 days

0

3

Ariens 08200919

ENGINE, ARIENS AX414 240V/60W

$

$

Not available

4

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

5

Ariens 00492359

COVER, BOTTOM

$48.99

$

Usually ships in 4-12 days

0

6

Ariens 03882100

FINGER, BELT

$22.99

$

In Stock, only 4 left!

0

7

Ariens 04084000

BELT COVER

$34.99

$

Usually ships in 4-12 days

0

8

Ariens 04409100

SHEAVE, DRIVE

$9.99

$

In Stock, Qty 8

0

9

Ariens 04498700

SHEAVE,ATTACHMENT 2-GRV

$45.99

$

Usually ships in 4-12 days

0

10

Ariens 04584651

BAFFLE,ENGINE,ARIENS LRG BLOCK

$

$

Not available

11

Ariens 06900505

CABLE, LOWER TRACTION (DELUXE)

Note: (DELUXE)

$18.99

$

In Stock, Qty 10

0

12

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

13

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07200536

V-BELT, HA-RAW EDGE (SET)

Note: (SET)

$60.99

$

In Stock, Qty 18

0

15

Ariens 07200717

V-BELT, 3L-RAW EDGE

$22.99

$

In Stock, Qty 20+

0

16

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

17

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 05901307

BLT-HEX .38-24X2.25 YWZC GR5
(Superseded to 05902006)

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07500023

PLUG, HOLE - .875" NYLON

$1.49

$

Usually ships in 4-12 days

0

21

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

25

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06400924

WSHR-FL-NYL 1.03 X 1.31 X .134

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$0.99

$

In Stock, Qty 7

0
