921317 - Ariens Deluxe 24" Track Snow Blower (SN: 098000 & Above) Handlebars Parts Diagram

Deluxe 24" Track Snow Blower

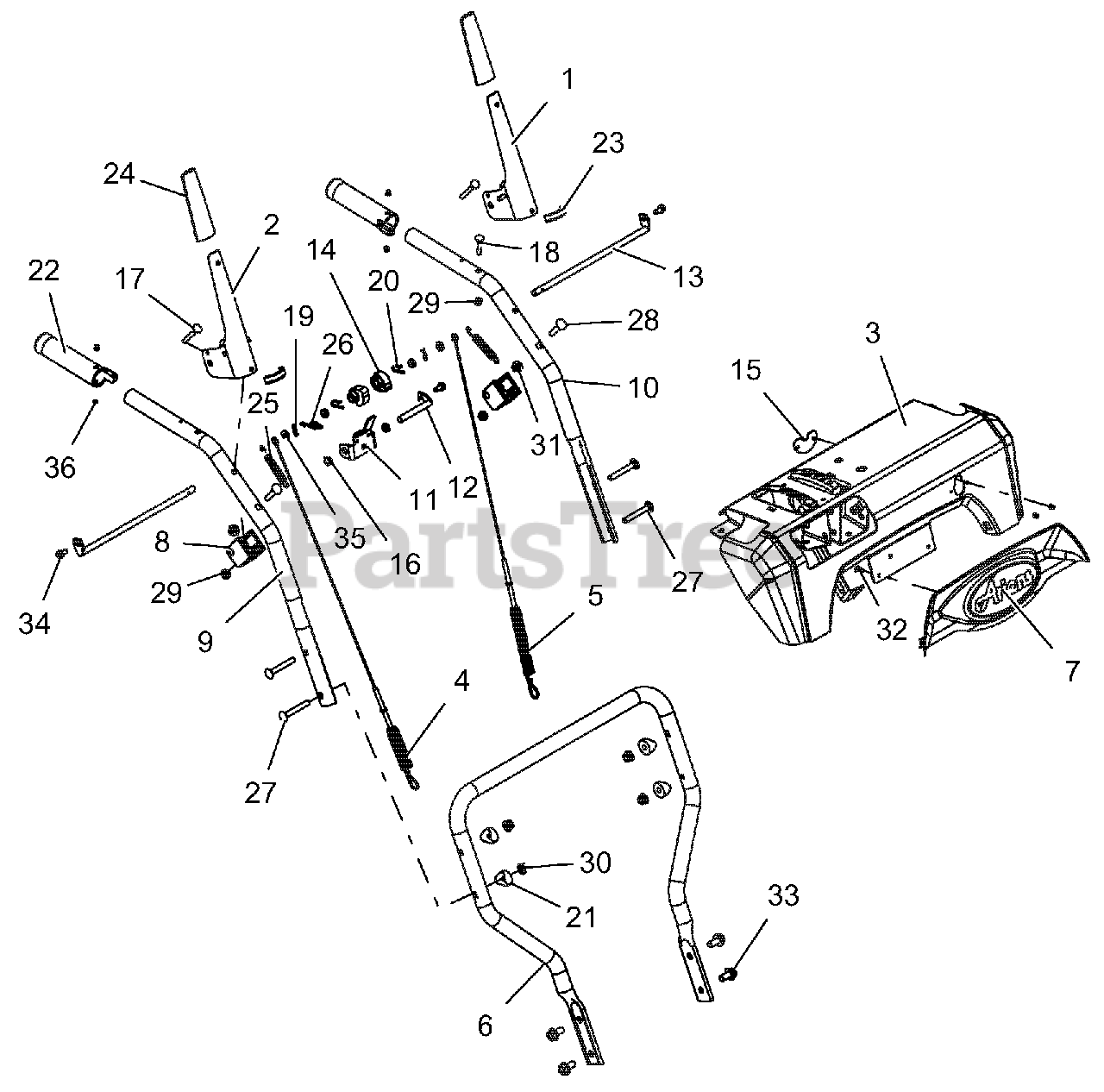

Handlebars Parts Diagram

  • Title

1

Ariens 04310451

LEVER, CLUTCH-LH

$28.99

$

In Stock, only 1 left!

0

2

Ariens 04310551

LEVER, CLUTCH-RH

$22.99

$

Usually ships in 4-12 days

0

3

Ariens 52106500

CONTROL PANEL W/DECAL ID,HW

$135.99

$

Usually ships in 4-12 days

0

4

Ariens 06900439

CABLE, AUGER (DELUXE & PRO)

Note: (DELUXE & PRO)

$28.99

$

In Stock, Qty 20+

0

5

Ariens 06900502

CABLE, UPPER TRACTION

$31.99

$

In Stock, Qty 20+

0

6

Ariens 00866251

HANDLEBAR, LOWER - DELUXE

$183.99

$

Usually ships in 4-12 days

0

7

Ariens 04304400

DASH BEZEL, ARIENS LOGO - PRO

$

$

Not available

8

Ariens 04310100

BLOCK, CLUTCH PADDLE
(Superseded to 05193600)

$

$

Not available

9

Ariens 04318151

HANDLEBAR, UPPER - RH

$56.99

$

Usually ships in 4-12 days

0

10

Ariens 04318251

HANDLEBAR, UPPER - LH

$51.99

$

Usually ships in 4-12 days

0

11

Ariens 04320400

BRACKET, INTERLOCK ARM

$20.99

$

Usually ships in 4-12 days

0

12

Ariens 04320500

ROD, PIVOT - INTERLOCK

$19.99

$

In Stock, only 1 left!

0

13

Ariens 04320600

ROD, PADDLE MOUNT - PRO

$

$

Not available

14

Ariens 04322100

CAM, INTERLOCK

$3.99

$

In Stock, only 3 left!

0

15

Ariens 04784500

COVER, DASH BRKT, ID

$7.49

$

In Stock, only 1 left!

0

16

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

17

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

Usually ships in 4-12 days

0

18

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 4 left!

0

19

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 8

0

20

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

21

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07500015

HEATED GRIP, MAGURA
(Superseded to 07500514)

$46.99

$

In Stock, only 2 left!

0

23

Ariens 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.49

$

Usually ships in 4-12 days

0

24

Ariens 07500211

CLUTCH PADDLE SLEEVE - GRAY

$2.49

$

In Stock, Qty 5

0

25

Ariens 08300527

SPRING, EXTENSION

$3.49

$

In Stock, only 4 left!

0

26

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, Qty 16

0

27

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

29

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$2.49

$

Usually ships in 4-12 days

0

33

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$

$

Not available
