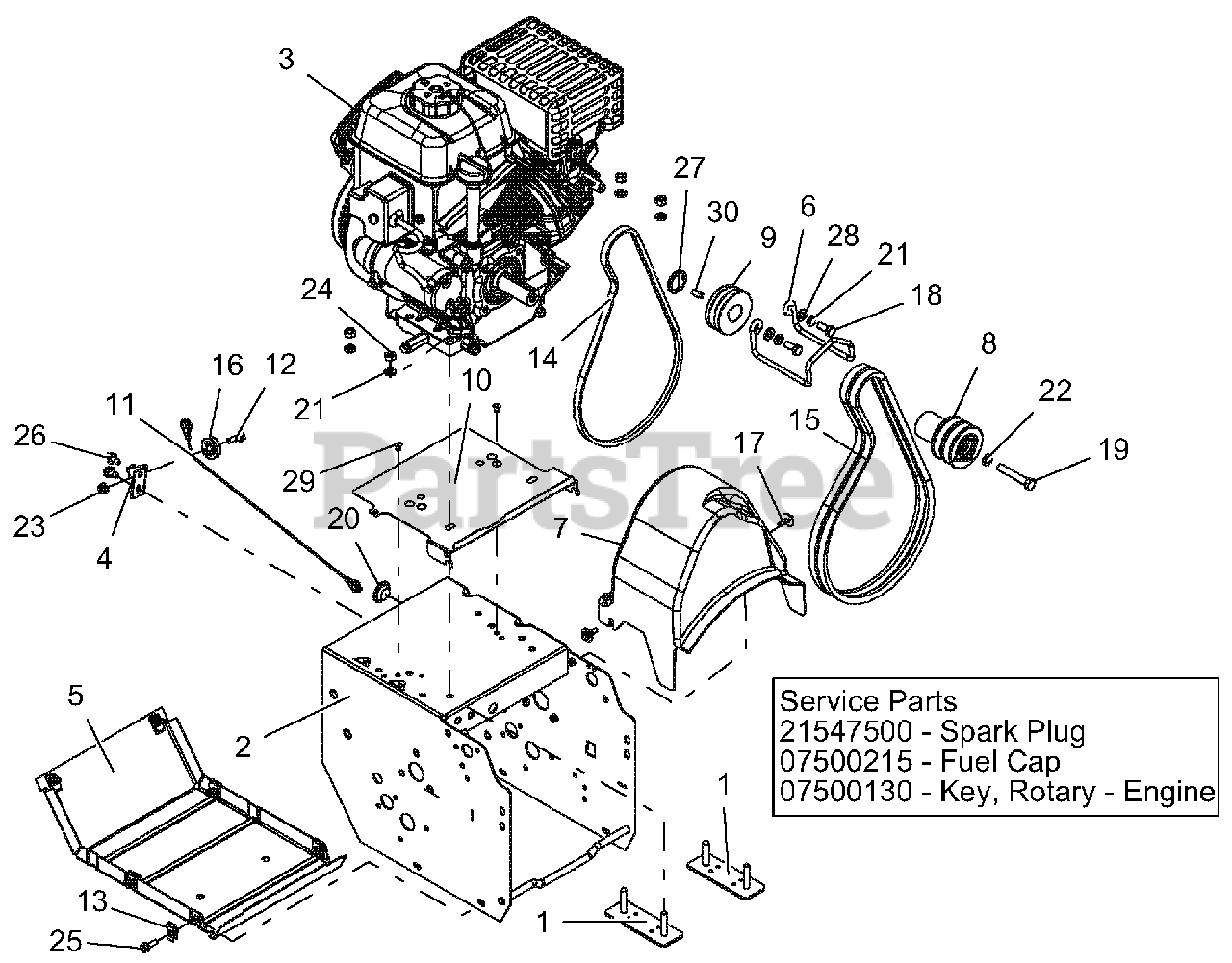

921317 - Ariens Deluxe 24" Track Snow Blower (SN: 098000 & Above) Engine, Frame And Belt Drive Parts Diagram

Deluxe 24" Track Snow Blower

Engine, Frame And Belt Drive Parts Diagram

  • Title

1

Ariens 04637900

STRAP,ENGINE BOLT,ARIENS SML

$

$

Not available

2

Ariens 04649559

WELDMENT, FRAME - DLX HYBRID

$103.99

$

Usually ships in 4-12 days

0

3

Ariens 08200920

ENGINE, ARIENS AX254 240V/60W

$

$

Not available

4

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

5

Ariens 00492359

COVER, BOTTOM

$48.99

$

Usually ships in 4-12 days

0

6

Ariens 03882100

FINGER, BELT

$22.99

$

In Stock, only 4 left!

0

7

Ariens 04083900

BELT COVER

$26.99

$

In Stock, only 4 left!

0

8

Ariens 04498700

SHEAVE,ATTACHMENT 2-GRV

$45.99

$

Usually ships in 4-12 days

0

9

Ariens 04542600

SHEAVE DRIVE

$168.99

$

Usually ships in 4-12 days

0

10

Ariens 04637851

BAFFLE,ENGINE,ARIENS SML BLOCK

$25.99

$

Usually ships in 4-12 days

0

11

Ariens 06900505

CABLE, LOWER TRACTION (DELUXE)

Note: (DELUXE)

$18.99

$

In Stock, Qty 10

0

12

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

13

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07200114

V-BELT, 3L-WRAPPED

Note: (NO RUBBER BLEED THRU)

$23.99

$

In Stock, Qty 5

0

15

Ariens 07200514

V-BELT, HA-RAW EDGE (SET)

Note: (SET)

$59.99

$

In Stock, Qty 20+

0

16

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

17

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05901307

BLT-HEX .38-24X2.25 YWZC GR5
(Superseded to 05902006)

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 07500023

PLUG, HOLE - .875" NYLON

$1.49

$

Usually ships in 4-12 days

0

21

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

25

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06400924

WSHR-FL-NYL 1.03 X 1.31 X .134

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$0.99

$

In Stock, Qty 7

0

30

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, only 3 left!

0

31

Ariens 21547500

PLUG, SPARK

Note: (Not Shown)

$

$

Not available

32

Ariens 07500215

CAP, FUEL - BRIGGS & STRATTON
(Superseded to 07500013)

Note: (Not Shown)

$17.99

$

Usually ships in 4-12 days

0

33

Ariens 07500130

KEY, IGNITION ROTARY B&S
(Superseded to 02460700)

Note: (Not Shown)

$7.99

$

In Stock, Qty 20+

0
