921314 - Ariens Deluxe 28" Snow Blower, Briggs & Stratton (SN: 095000 & Above) Wheels And Axles Parts Diagram

Deluxe 28" Snow Blower, Briggs & Stratton

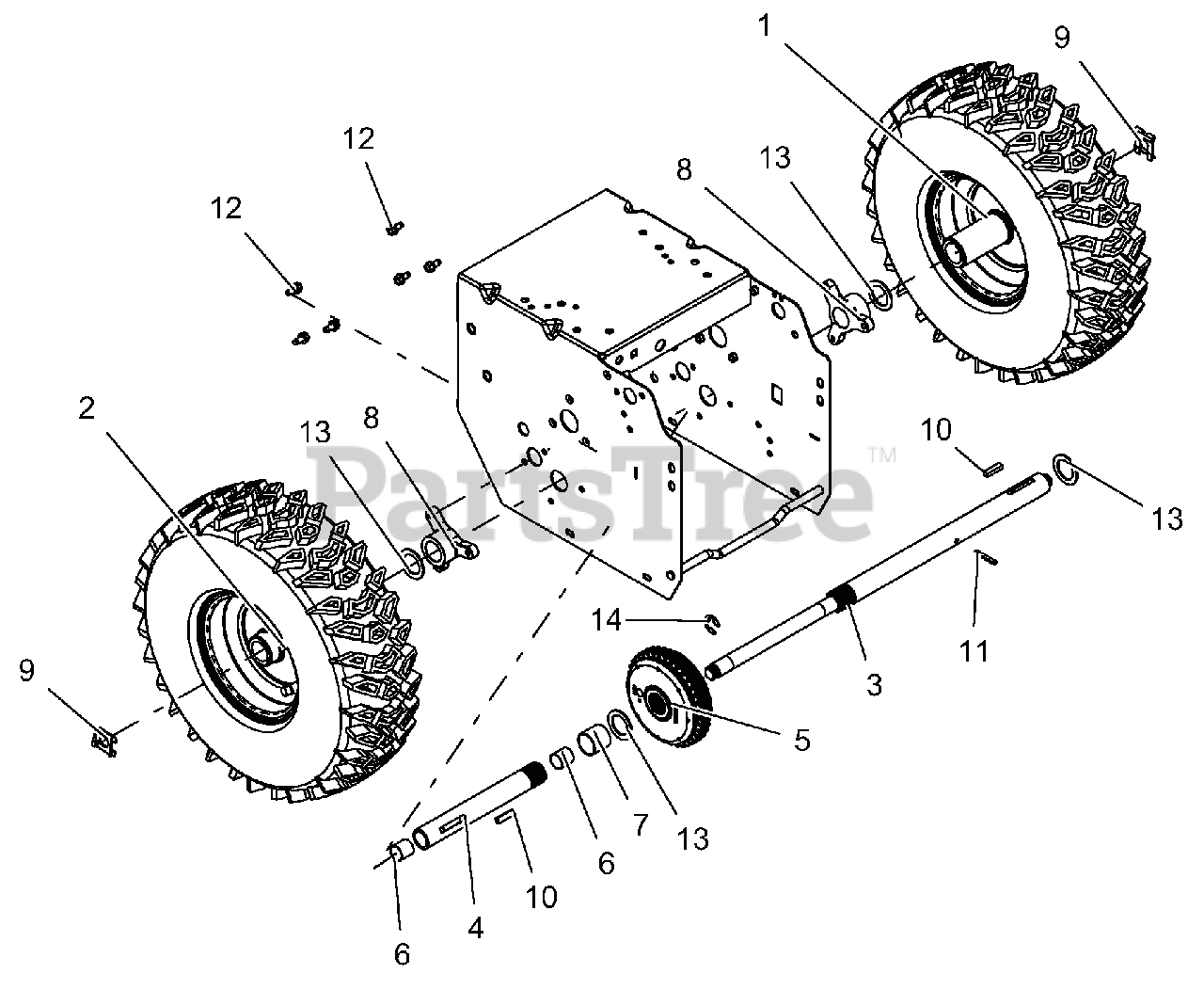

Wheels And Axles Parts Diagram

  • Title

1

Ariens 07100228

TIRE/WHEEL,LH 15X5.00-6 REMOTE

$113.99

$

Usually ships in 4-12 days

0

2

Ariens 07100227

TIRE/WHEEL,RH 15X5.00-6 REMOTE

$111.99

$

In Stock, only 3 left!

0

3

Ariens 00865800

AXLE, LONG - DIFFERENTIAL

$168.99

$

Usually ships in 4-12 days

0

4

Ariens 00865900

AXLE, SHORT - DIFFERENTIAL
(Superseded to 52101200)

$93.99

$

Usually ships in 4-12 days

0

5

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$155.99

$

In Stock, Qty 5

0

6

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

7

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 20+

0

8

Ariens 05500829

BUSHING, AXLE

$10.99

$

In Stock, only 2 left!

0

9

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

11

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0
