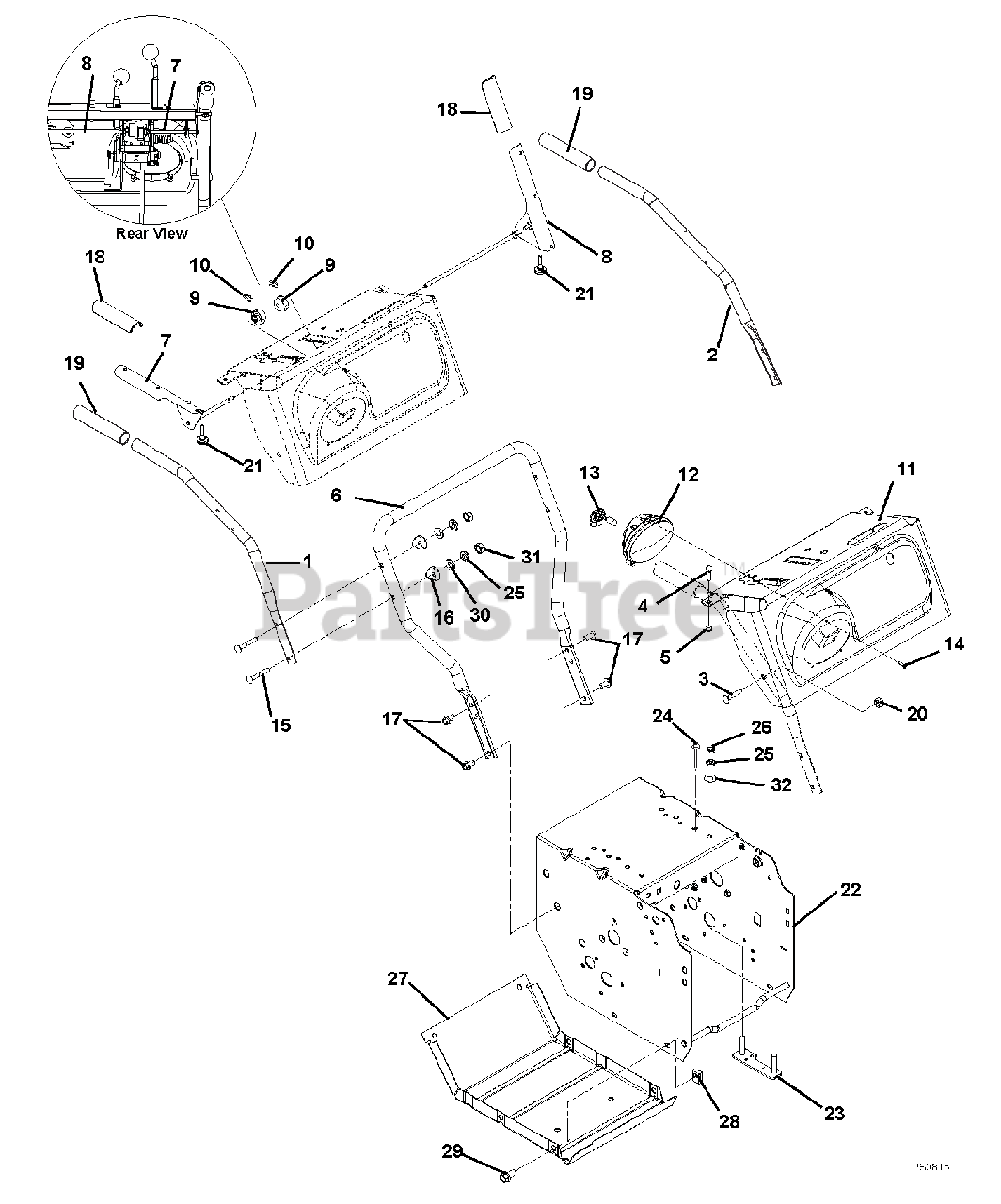

921311 - Ariens Deluxe 24" Track Snow Blower, Briggs & Stratton (SN: 000201 & Above) Handlebars, Lever Controls, Panel And Dash Parts Diagram

Deluxe 24" Track Snow Blower, Briggs & Stratton

Handlebars, Lever Controls, Panel And Dash Parts Diagram

  • Title

1

Ariens 00428351

HANDLEBAR, UPPER-RH

Note: (921012, 013, 015, 016, 020, 305, 306, 307, 311, 312)

$68.99

$

Usually ships in 4-12 days

0

1

Ariens 52602000

HANDLEBAR, UPPER RH-W/HW

Note: (921017, 018, 309)

$156.99

$

Usually ships in 4-12 days

0

2

Ariens 00428451

HANDLEBAR, UPPER-LH

Note: (921013, 023, 304, 307, 308, 311)

$75.99

$

Usually ships in 4-12 days

0

2

Ariens 52601900

HANDLEBAR, UPPER LH-W/HW

Note: (921017, 018, 309)

$156.99

$

Usually ships in 4-12 days

0

3

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (921017, 018, 304, 307)

$2.49

$

In Stock, only 4 left!

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (921013, 023, 308, 309, 311)

$2.49

$

In Stock, only 4 left!

0

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (921017, 018, 304, 307)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (921013, 023, 308, 309, 311)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00866251

HANDLEBAR, LOWER - DELUXE

$183.99

$

Usually ships in 4-12 days

0

7

Ariens 00393051

LEVER, RH-ATTACHMENT

$62.99

$

In Stock, only 4 left!

0

8

Ariens 00393151

LEVER, LH-TRACTION

$71.99

$

In Stock, only 4 left!

0

9

Ariens 03888100

CAM, INTERLOCK NYLON, LG DASH

$6.99

$

In Stock, Qty 6

0

10

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

11

Ariens 52102200

CONTROL PANEL W/DECAL

Note: (921013)

$140.99

$

Usually ships in 4-12 days

0

11

Ariens 52100400

DASH PANEL W/CONTROL DECAL

Note: (921017, 018)

$209.99

$

Usually ships in 4-12 days

0

11

Ariens 52103600

CONTROL PANEL W/DECAL

Note: (921309)

$

$

Not available

11

Ariens 52102300

CONTROL PANEL W/DECAL

Note: (921023, 308, 311)

$149.99

$

Usually ships in 4-12 days

0

11

Ariens 52102400

CONTROL PANEL W/DECAL

Note: (921304, 307)

$154.99

$

Usually ships in 4-12 days

0

12

Ariens 00432500

LIGHT, HALOGEN ASSY.

$21.99

$

Usually ships in 4-12 days

0

13

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

$14.99

$

In Stock, Qty 6

0

14

Ariens 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$0.99

$

Usually ships in 4-12 days

0

15

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 00384500

GRIP, CLUTCH LEVER, LH AND RH

$2.49

$

In Stock, Qty 11

0

19

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

Note: (921013, 023, 304, 307, 308, 311)

$3.99

$

In Stock, Qty 20+

0

20

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07500038

BUMPER, RUBBER - PULL MOUNT

$

$

Not available

22

Ariens 03884259

FRAME, 920/921

$258.99

$

Usually ships in 4-12 days

0

23

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

Note: (921017, 023, 309, 311)

$

$

Not available

23

Ariens 00392000

STRAP, ENGINE BOLT-LARGE BRIGG

Note: (921013, 018, 304, 307, 308)

$

$

Not available

24

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 7

0

25

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

27

Ariens 00492359

COVER, BOTTOM

$48.99

$

Usually ships in 4-12 days

0

28

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
