921306 - Ariens Deluxe 27" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Wheels And Axles Parts Diagram

Deluxe 27" Snow Blower, Briggs & Stratton

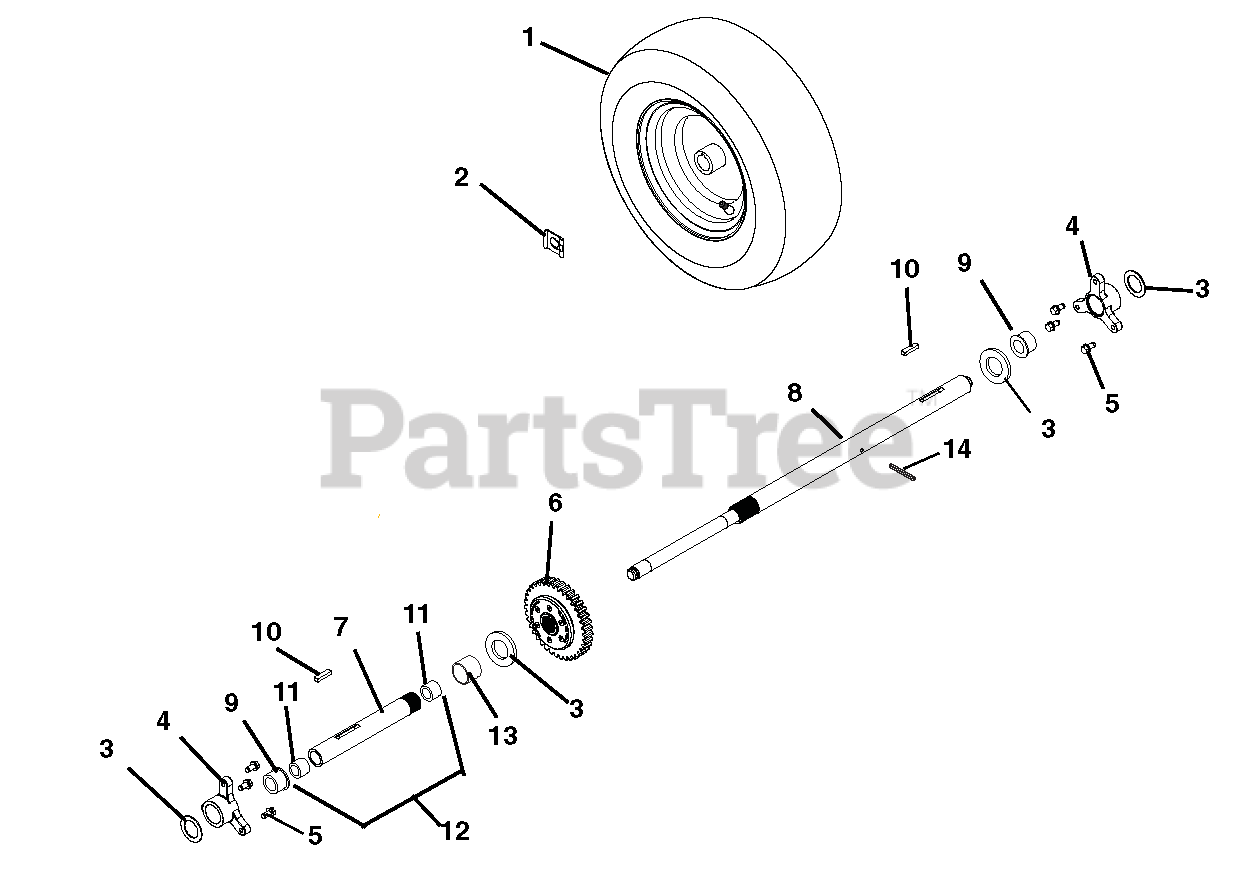

Wheels And Axles Parts Diagram

  • Title

1

Ariens 07100227

TIRE/WHEEL,RH 15X5.00-6 REMOTE

$111.99

$

In Stock, only 3 left!

0

Ariens 07100228

TIRE/WHEEL,LH 15X5.00-6 REMOTE

$113.99

$

Usually ships in 4-12 days

0

Ariens 07100726

TIRE, 15X5.00-6 K478

$69.99

$

In Stock, only 1 left!

0

2

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

3

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 20+

0

5

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00866000

DIFFERENTIAL, AUTOMATIC
(Superseded to 05013000)

$193.99

$

In Stock, only 3 left!

0

7

Ariens 00865900

AXLE, SHORT - DIFFERENTIAL
(Superseded to 52101200)

$93.99

$

Usually ships in 4-12 days

0

8

Ariens 00865800

AXLE, LONG - DIFFERENTIAL

$168.99

$

Usually ships in 4-12 days

0

9

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$6.99

$

In Stock, Qty 20+

0

10

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

11

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

12

Ariens 52101200

AXLE, DIFFERENTIAL W/BUSHINGS

Note: (Includes 7 and 11)

$93.99

$

Usually ships in 4-12 days

0

13

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 20+

0

14

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0
