921300 (ST 824 E) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 - 000500) Wheels And Axles Parts Diagram

24" Snow Blower, 8hp Tecumseh

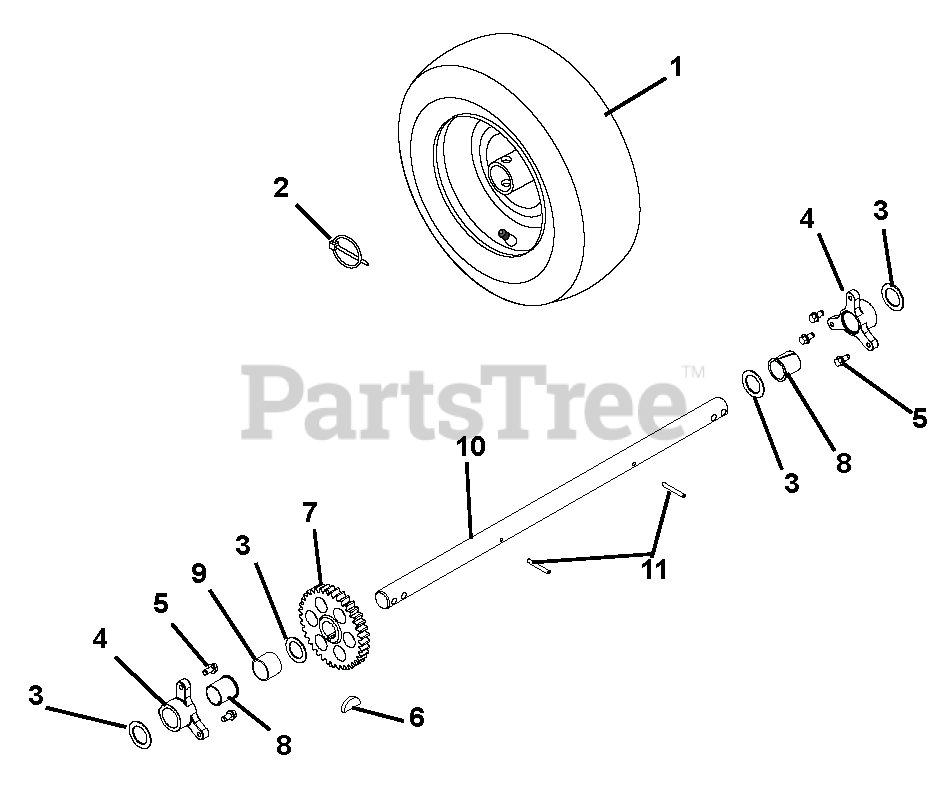

Wheels And Axles Parts Diagram

  • Title

1

Ariens 07100225

TIRE/WHEEL, RH 15X5.00-6 PIN

$

$

Not available

Ariens 07100226

TIRE/WHEEL, LH 15X5.00-6 PIN

$

$

Not available

Ariens 07100726

TIRE, 15X5.00-6 K478

$69.99

$

In Stock, only 1 left!

0

2

Ariens 07015800

PIN-LOK .31X2.00

$6.99

$

In Stock, only 2 left!

0

3

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 20+

0

5

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 20+

0

7

Ariens 00371000

GEAR, SPUR

$53.99

$

In Stock, only 1 left!

0

8

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$6.99

$

In Stock, Qty 20+

0

9

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 20+

0

10

Ariens 00658100

AXLE, 1.00" SOLID

$

$

Not available

11

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0
