Ariens 921071 - Ariens Deluxe 30" Snow Blower, Ariens AX 301cc engine Controls - Large Dash Parts Lookup with Diagrams

1

Ariens 30191300

ASM, LEVER W/KNOB-LG DASH DEFL

$

Currently unavailable 

1

Ariens 09382800

KNOB, CONTROL

Note: (Knob Only) Component Service Part

$11.99

$

In Stock, only 2 left!

2

Ariens 30191400

ASM, LEVER W/KNOB-LG DASH SPEED

$

Currently unavailable 

2

Ariens 09382800

KNOB, CONTROL

Note: (Knob Only) Component Service Part

$11.99

$

In Stock, only 2 left!

3

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

In Stock, Qty 7

4

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 7

5

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

6

Ariens 06401028

WSHR,FLT .380X1.50X.062 ZCC

$3.49

$

In Stock, Qty 20+

7

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

8

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

9

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

10

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, only 3 left!

11

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

12

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, Qty 10

13

Ariens 09167700

ROD, SHIFT - LARGE DASH DELUXE

$27.99

$

In Stock, only 1 left!

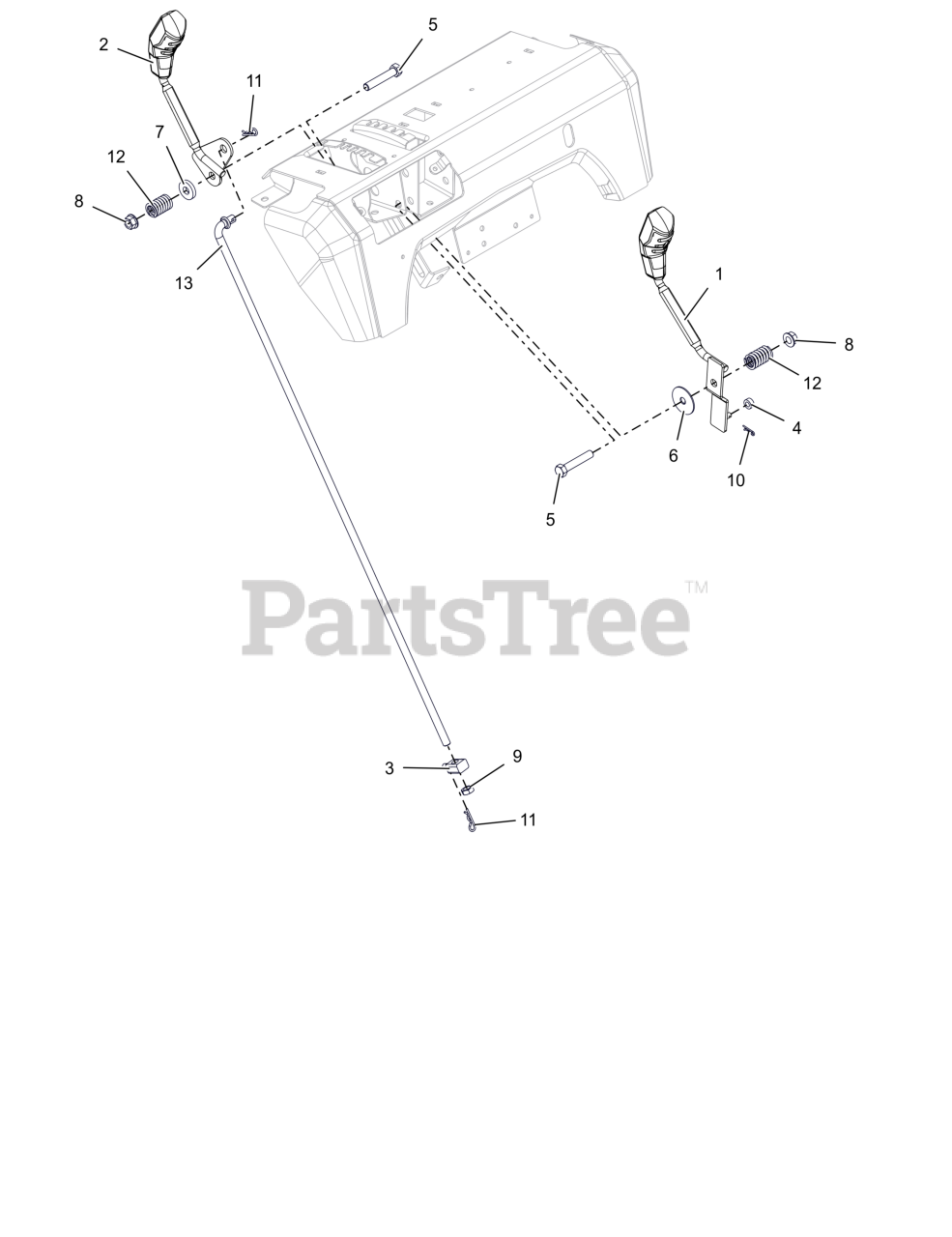

921071 - Ariens Deluxe 30" Snow Blower, Ariens AX 301cc engine Controls - Large Dash Parts Diagram

Controls - Large Dash Parts Diagram

Ariens 30191300

Ariens 09382800

Ariens 30191400

Ariens 09382800

Ariens 00386700

Ariens 05501012

Ariens 05901718

Ariens 06401028

Ariens 06401108

Ariens 06500822

Ariens 06500910

Ariens 06700221

Ariens 06700222

Ariens 08335700

Ariens 09167700
