921067 - Ariens 28" Power Brush, Ariens AX 179cc engine (SN: 000101 & Above) Friction Drive Parts Diagram

28" Power Brush, Ariens AX 179cc engine

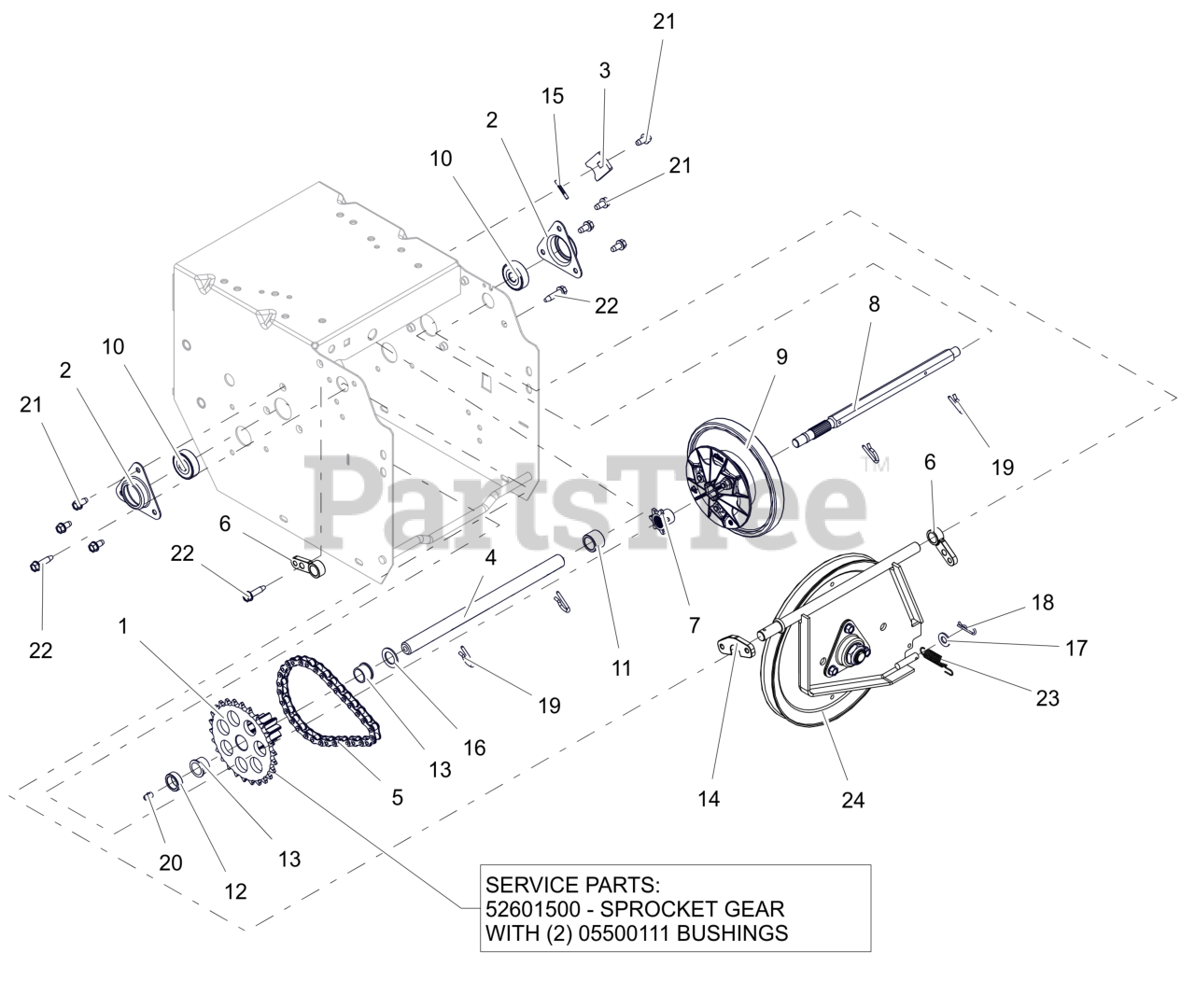

Friction Drive Parts Diagram

  • Title
1

Ariens 00190600

PINION & SPROCKET

$34.99

$

Usually ships in 4-12 days

0

1

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

Note: Component Service Assembly

$45.99

$

In Stock, Qty 14

0

2

Ariens 00383000

FLANGE, BEARING

$12.99

$

In Stock, Qty 17

0

3

Ariens 00503500

TAB, ANTI ROTATION

$4.99

$

In Stock, only 2 left!

0

4

Ariens 00657900

SHAFT, PINION

$30.99

$

In Stock, Qty 7

0

5

Ariens 02466200

CHAIN - #41, 32 PITCHES

$6.99

$

In Stock, Qty 13

0

6

Ariens 03374500

SUPPORT BUSHING, SWING GATE

$3.99

$

In Stock, only 3 left!

0

7

Ariens 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$

$

Not available

8

Ariens 09154300

SHAFT, HEX W/SPLINE

$33.99

$

Usually ships in 4-12 days

0

9

Ariens 04861600

DISC, FRICTION DRIVE-ASSEMBLY

$43.99

$

In Stock, Qty 20+

0

10

Ariens 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

11

Ariens 05500029

SPACER, .635X.880X.611

$2.49

$

In Stock, Qty 5

0

12

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, Qty 20+

0

13

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05500113

SPACER, SWING GATE

$5.99

$

In Stock, only 1 left!

0

15

Ariens 05800205

@PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 06401117

WSHR, FLT .630X1.005X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

20

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 20+

0

21

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07400204

SCR, TAP .25-20X1.00 TT2000 ZCC

$

$

Not available

23

Ariens 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 4 left!

0

24

Ariens 52105000

PLATE, SWING - ASSEMBLY

$85.99

$

In Stock, only 4 left!

0
