921057 - Ariens Platinum 28" SHO RapidTrak Snow Blower, Ariens AX 369cc engine (SN: 200000 & Above) Track Axles Parts Diagram

Platinum 28" SHO RapidTrak Snow Blower, Ariens AX 369cc engine

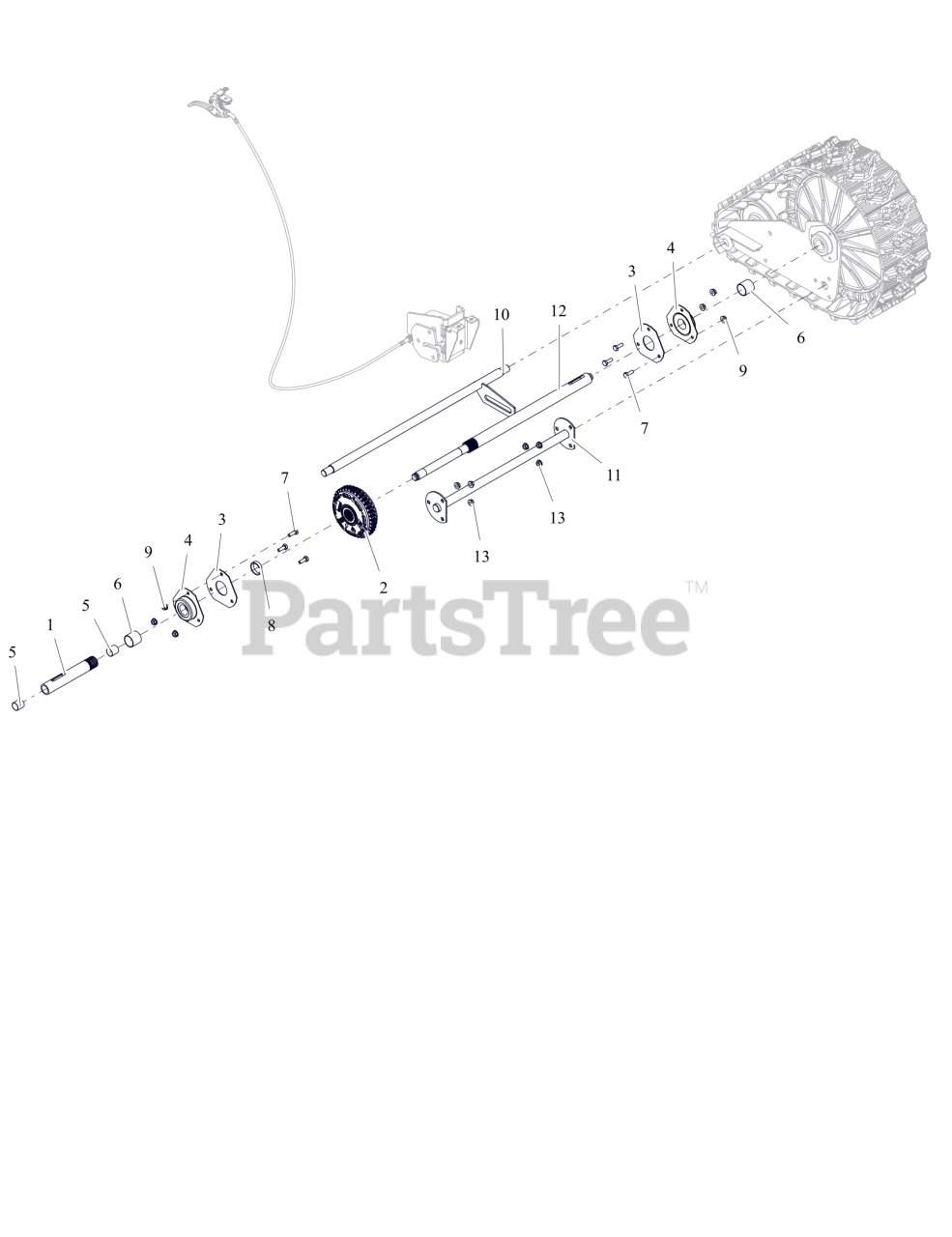

Track Axles Parts Diagram

  • Title

1

Ariens 52615800

AXLE, SHORT-W/BUSHINGS

$

$

Not available

2

Ariens 05013000

DIFFERENTIAL, AUTOMATIC

$193.99

$

In Stock, only 3 left!

0

3

Ariens 04796351

PLATE, BEARING SPACER

$

$

Not available

4

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$43.99

$

In Stock, Qty 20+

0

5

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

6

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 20+

0

7

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05501413

BSHG, SLV 1.062X1.228X.268

$

$

Not available

9

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05152900

AXLE, REAR-BWT WLDMT

$58.99

$

Usually ships in 4-12 days

0

11

Ariens 05153151

SUPPORT, FRONT-BWT

$64.99

$

Usually ships in 4-12 days

0

12

Ariens 03996100

AXLE, LONG-TRACK DIFFERENTIAL

$101.99

$

Usually ships in 4-12 days

0

13

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0
