921057 - Ariens Platinum 28" SHO RapidTrak Snow Blower, Ariens AX 369cc engine (SN: 200000 & Above) Engine, Frame, and Belt Drive - 28" - RapidTrak Parts Diagram

Platinum 28" SHO RapidTrak Snow Blower, Ariens AX 369cc engine

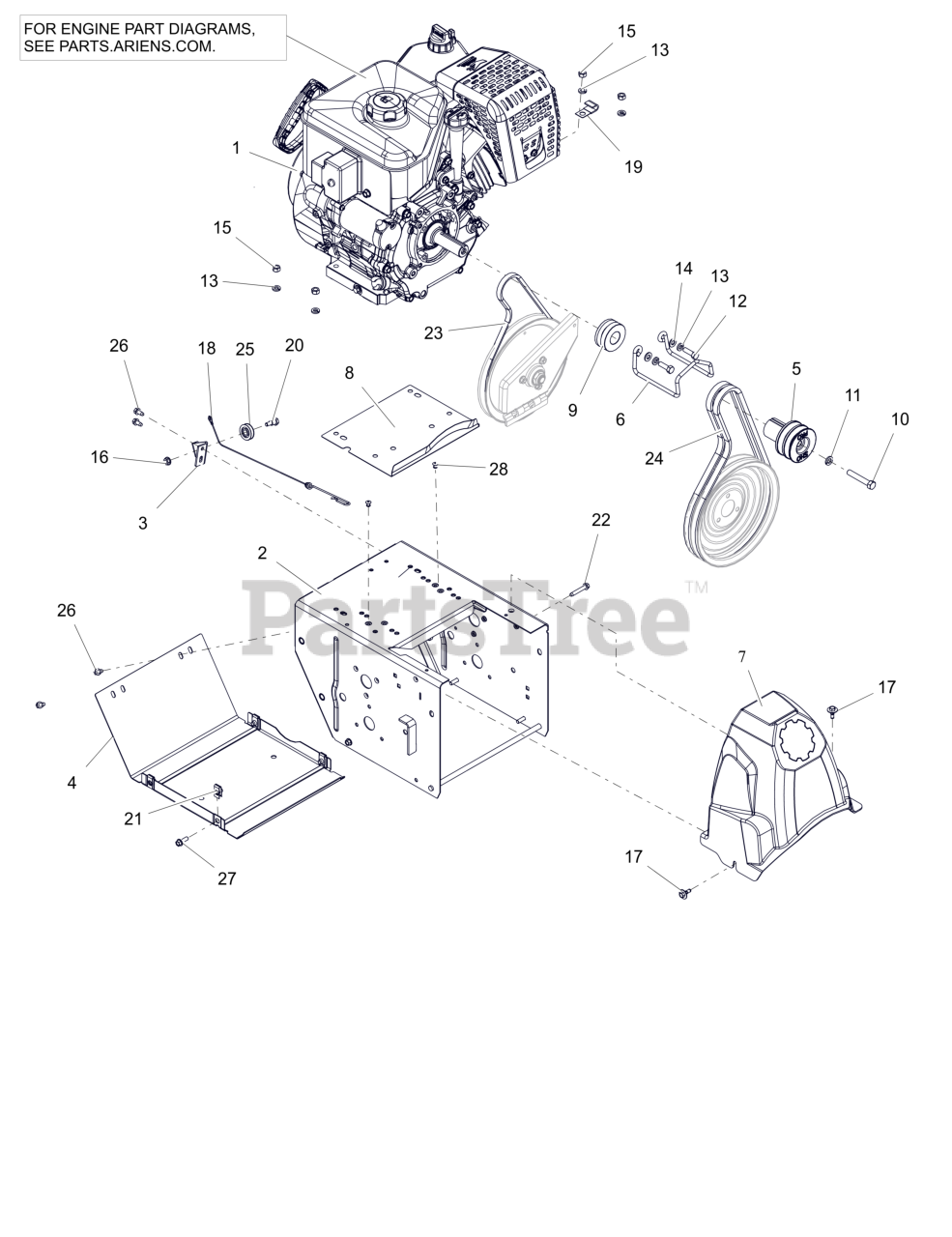

Engine, Frame, and Belt Drive - 28" - RapidTrak Parts Diagram

  • Title

1

Ariens 08201301

ENGINE, AX369 GEN3 120V/60W

$

$

Currently unavailable

2

Ariens 05250559

FRAME, MAIN - 14GA DELUXE (ORANGE)

$179.99

$

Usually ships in 4-12 days

0

3

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$4.99

$

Usually ships in 4-12 days

0

4

Ariens 00375159

COVER, BOTTOM

$82.99

$

Usually ships in 4-12 days

0

5

Ariens 04957500

SHEAVE,ATTACHMENT-SHO 2 GRV

$28.99

$

Usually ships in 4-12 days

0

6

Ariens 05273200

FINGER, BELT

$18.99

$

In Stock, only 1 left!

0

7

Ariens 09382100

COVER, BELT

$11.99

$

Usually ships in 4-12 days

0

8

Ariens 04990851

BAFFLE, WATER - LARGE BLOCK

$16.99

$

Usually ships in 4-12 days

0

9

Ariens 07348500

SHEAVE, TRACTION (KEYLESS)

$25.99

$

In Stock, only 1 left!

0

10

Ariens 05902006

BLT, HEX .38-24X2.25 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05902108

BLT, HEX 0.3125-24X1 G5 ZCC

$1.99

$

Usually ships in 4-12 days

0

13

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 16

0

14

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06500938

NUT, HEX .312-18 ZCC

$0.99

$

In Stock, Qty 10

0

16

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 06900503

CABLE, LOWER TRACTION,SS & PRO

$17.99

$

In Stock, only 4 left!

0

19

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, only 4 left!

0

20

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, Qty 5

0

21

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07400140

SCR,TAP .25-20X1.50 HWH TR ZCC

$3.49

$

Usually ships in 4-12 days

0

23

Ariens 07200101

V-BELT, 3L-WRAPPED

$21.99

$

In Stock, Qty 20+

0

24

Ariens 07200608

V-BELT, HA-RAW EDGE (SET)

$54.99

$

In Stock, Qty 20+

0

25

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

26

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

27

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 5

0
