921056 - Ariens 28" Power Brush, Kohler CH255 (SN: 000101 & Above) Brush Frame Parts Diagram

28" Power Brush, Kohler CH255

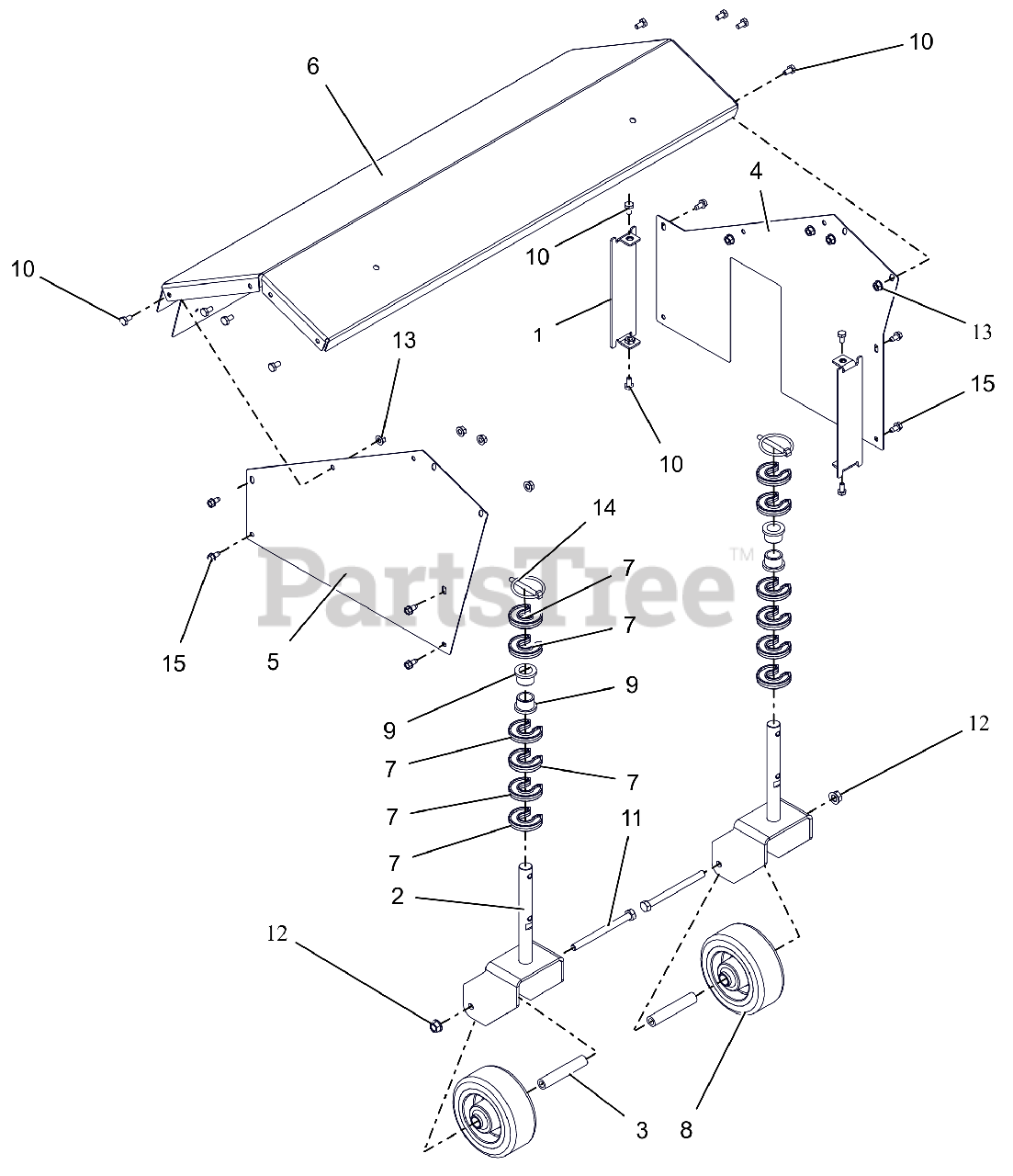

Brush Frame Parts Diagram

  • Title

1

Ariens 00267451

COVER,END

$16.99

$

Usually ships in 4-12 days

0

2

Ariens 03278551

FORK, CASTER-BRUSH
(Superseded to 09484251)

$62.99

$

Usually ships in 4-12 days

0

3

Ariens 00188000

SPACER, CASTER WHEEL

$

$

Not available

4

Ariens 00256659

COVER,LH SIDE BRUSH

$50.99

$

Usually ships in 4-12 days

0

5

Ariens 00258159

COVER,RH SIDE BRUSH

$

$

Not available

6

Ariens 53216100

COVER WITH DECALS, 28"BRUSH

$

$

Not available

7

Ariens 03265100

CLIP-HOC FIXED

$3.49

$

In Stock, Qty 7

0

8

Ariens 07101101

WHEEL, CASTER - 5"OD

$39.99

$

Usually ships in 4-12 days

0

9

Ariens 03985500

BUSHING, FLANGE .75X.75X1.0

$5.99

$

In Stock, only 3 left!

0

10

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05970400

@BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$4.99

$

In Stock, only 2 left!

0

12

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06700204

PIN, LYNCH - .25 X 1.25
(Superseded to 06700226)

$3.99

$

In Stock, Qty 8

0

15

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
