921052 - Ariens Platinum 28" SHO Track Snow Blower, Ariens AX 369cc engine (SN: 050000 & Above) Track Axles Parts Diagram

Platinum 28" SHO Track Snow Blower, Ariens AX 369cc engine

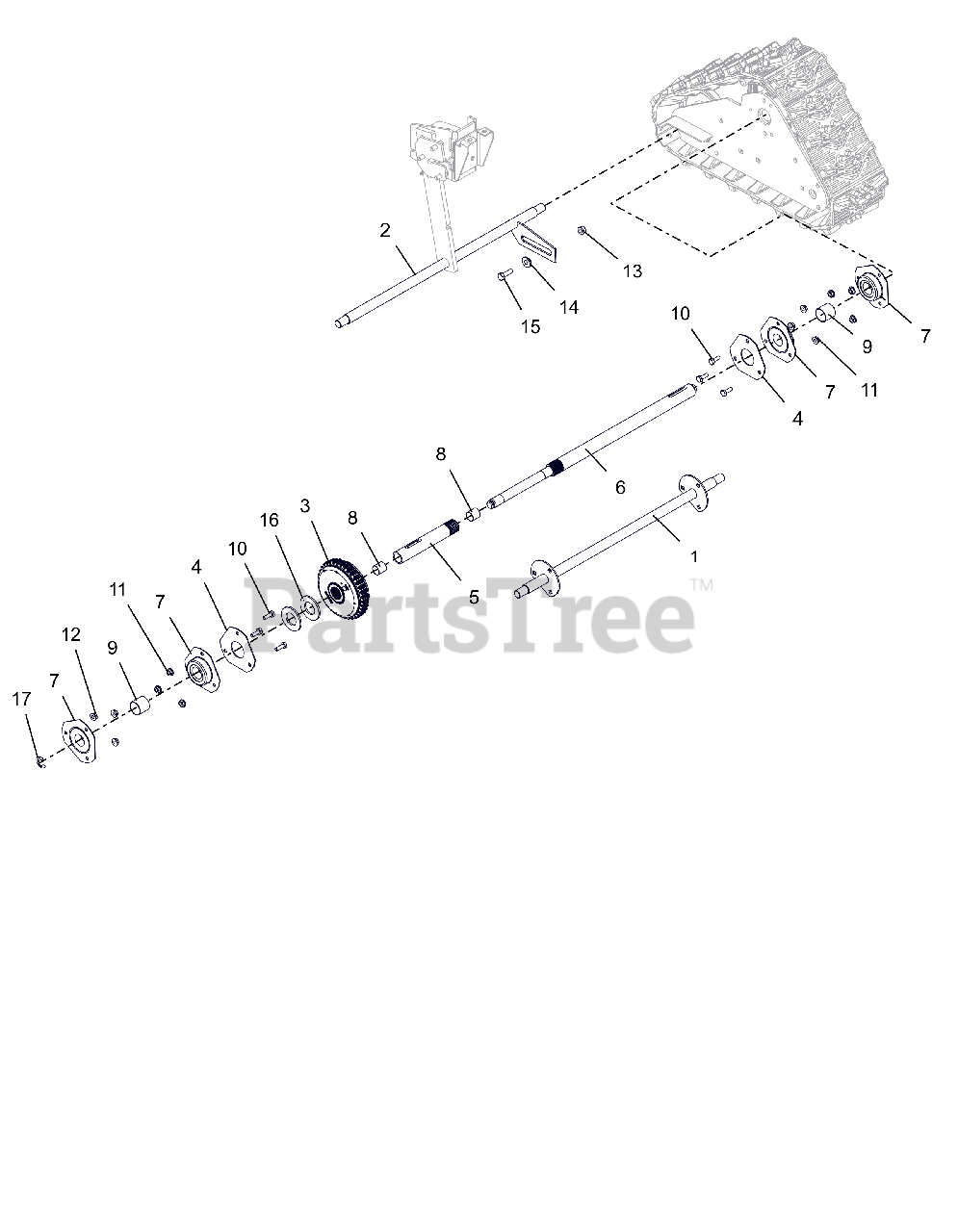

Track Axles Parts Diagram

  • Title

1

Ariens 03376000

AXLE, FRONT - PRO

$116.99

$

Usually ships in 4-12 days

0

2

Ariens 03376100

AXLE, REAR - PRO TRACK

$63.99

$

Usually ships in 4-12 days

0

3

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$155.99

$

In Stock, Qty 9

0

4

Ariens 04796351

PLATE, BEARING SPACER

$

$

Not available

5

Ariens 52615800

AXLE, SHORT-W/BUSHINGS

$

$

Not available

6

Ariens 03996100

AXLE, LONG-TRACK DIFFERENTIAL

$101.99

$

Usually ships in 4-12 days

0

7

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$43.99

$

In Stock, Qty 20+

0

8

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

9

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 20+

0

10

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06401203

WSHR, FLT 1.062X2.000X.134 ZCC

$3.99

$

In Stock, only 3 left!

0

17

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0
